Accessible drives
LTO 4/5/6/7

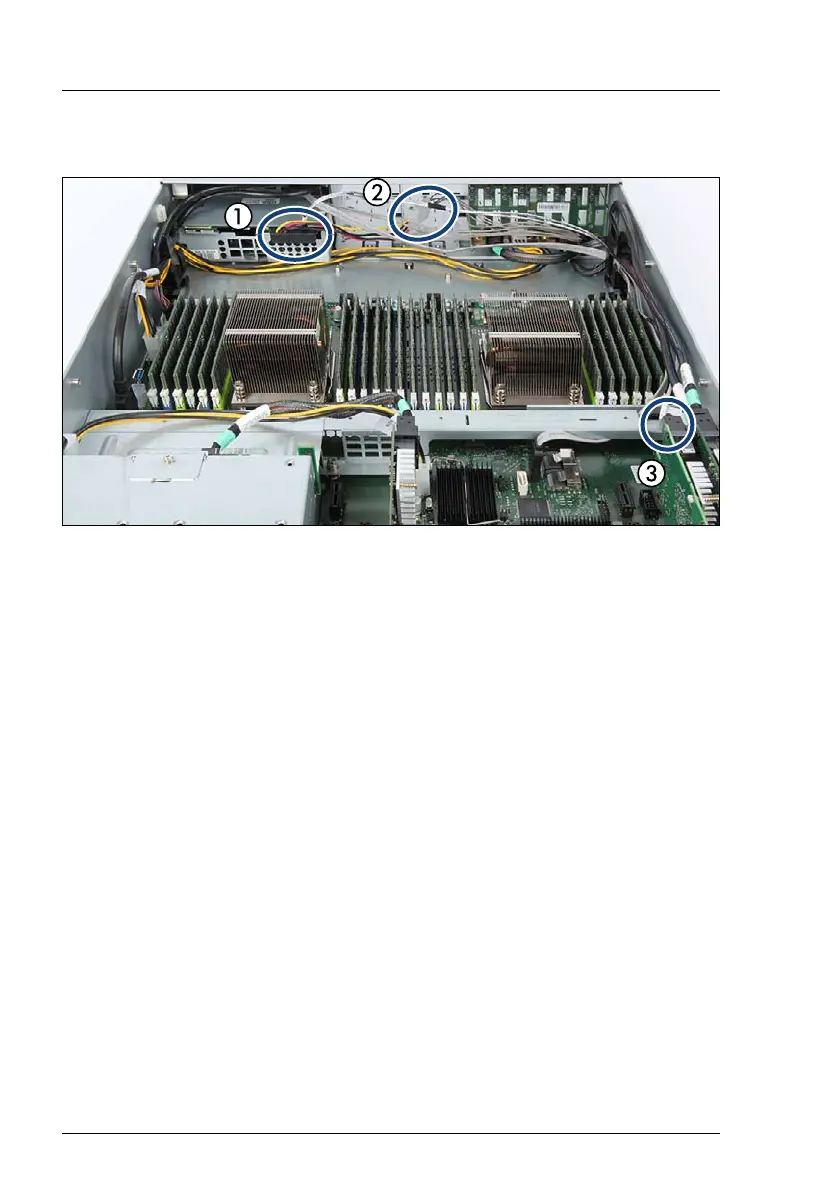

Figure 316: Connecting the cables to the LTO 4/5/6/7
Ê Connect the cable C30 to the LTO 4/5/6/7 drive (1).
Ê Connect the power plug of cable C30 to cable C31 (2).
Ê Connect the SAS plug of cable C30 to the MLC1 connector of the PSAS
controller (3).
