Fujitsu PRIMERGY RX2540 M2

RX2540 M2 Upgrade and Maintenance Manual 437
Accessible drives

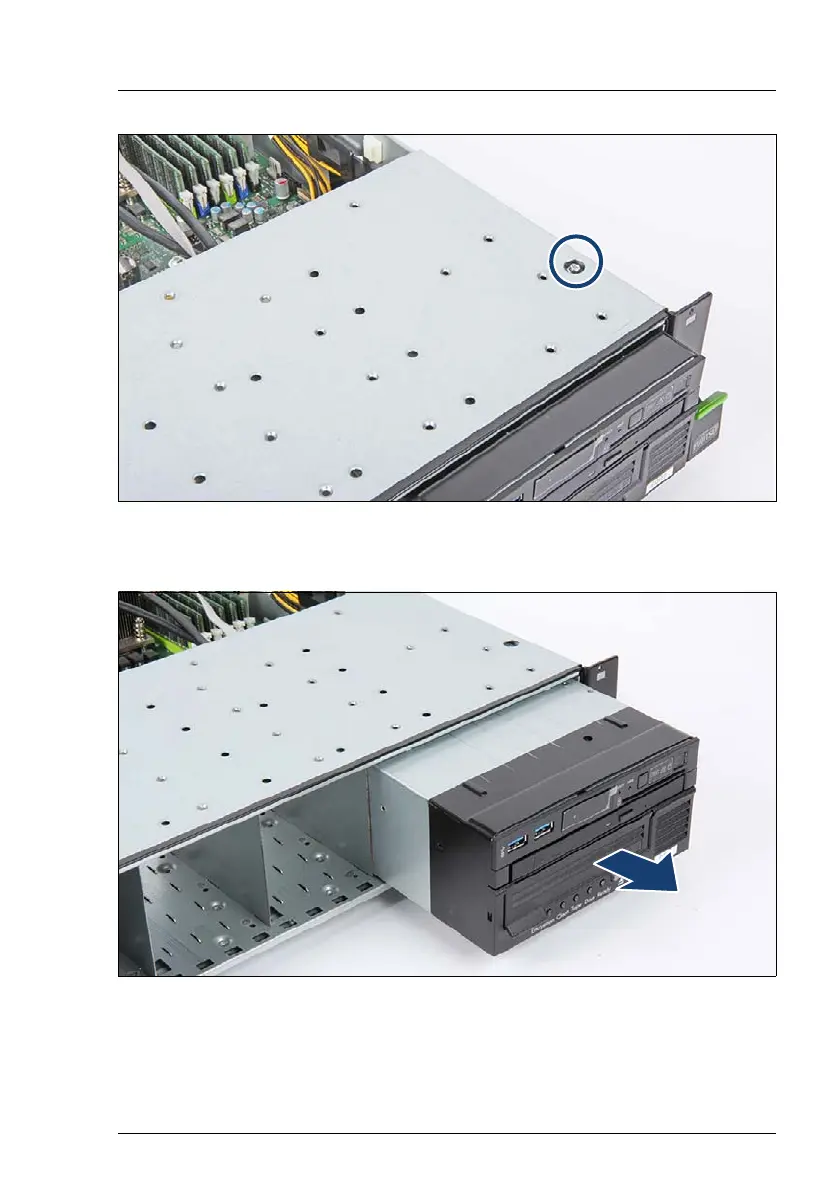

Figure 320: Removing a LTO drive
Ê Remove the screw.
Figure 321: Removing the LTO drive
Ê Unlock the front panel cage see section "Removing the front panel cage" on
page 479.
Ê Pull out the front panel cage.
