Front panel and external front connectors

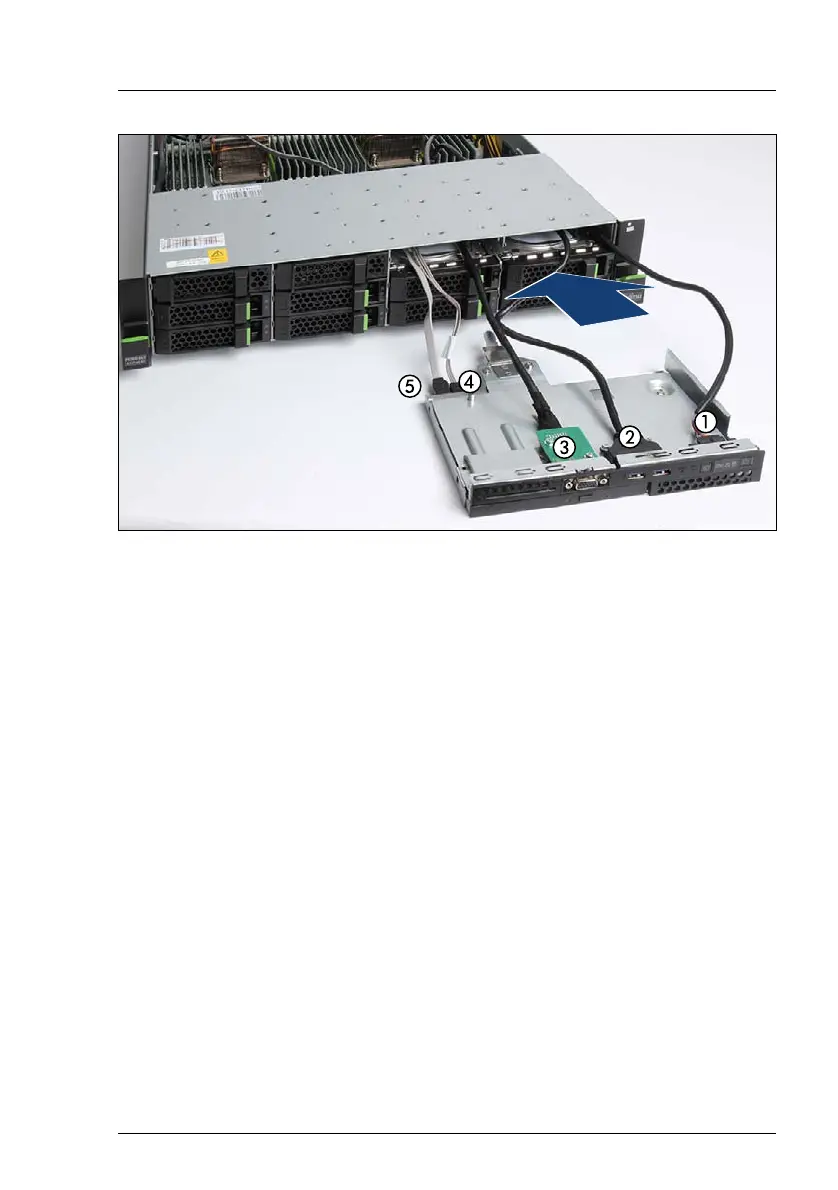

Figure 339: Installing the front panel module
Ê Connect the front panel cable (1).
Ê If applicable, connect the front USB3.0 cable (2).
Ê If applicable, connect the Front VGA cable (3).
Ê If applicable, connect the data and the power cable (4 and 5).
Ê Insert the front panel module.
