Fujitsu PRIMERGY RX2540 M2

RX2540 M2 Upgrade and Maintenance Manual 507
Front panel and external front connectors

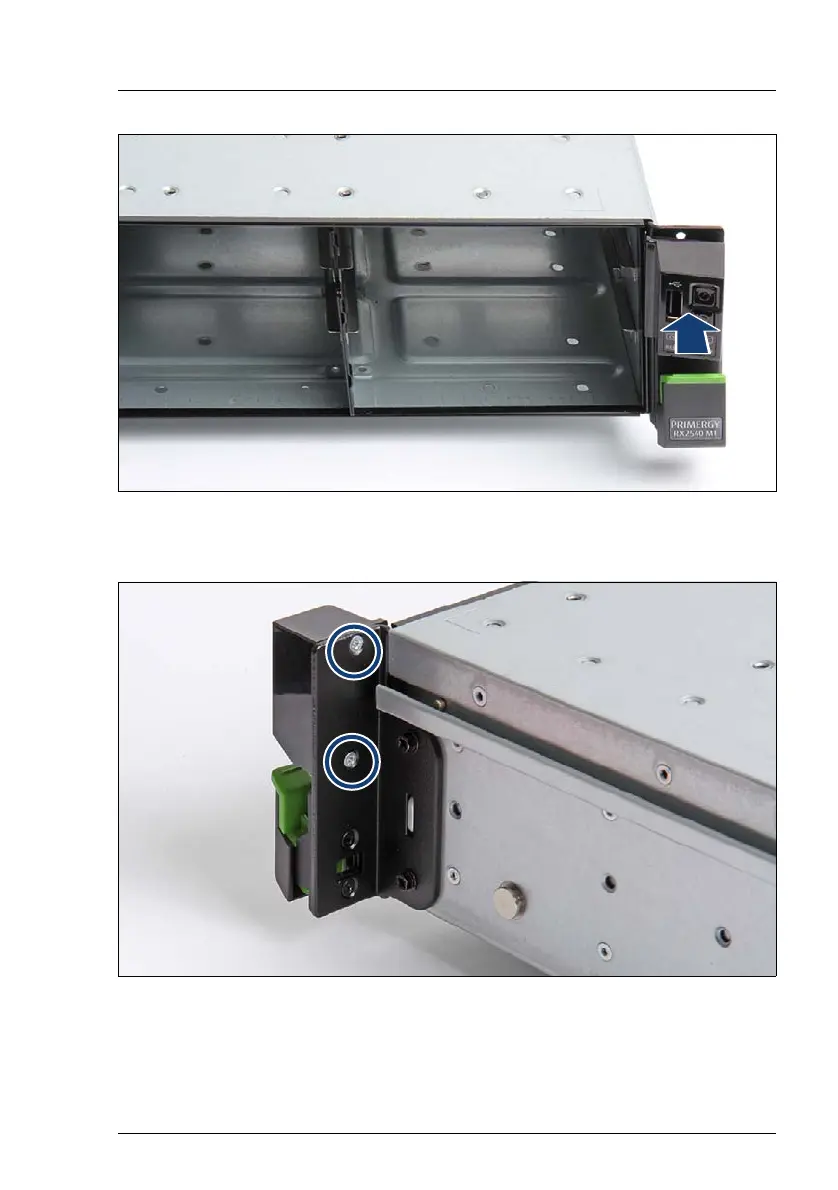

Figure 380: Installing the front panel to the RMB
Ê Insert the front panel on the RMB.
Figure 381: Inserting the screws
Ê Fasten the front panel with two screws.
