554 Upgrade and Maintenance Manual RX2540 M2
System board and components

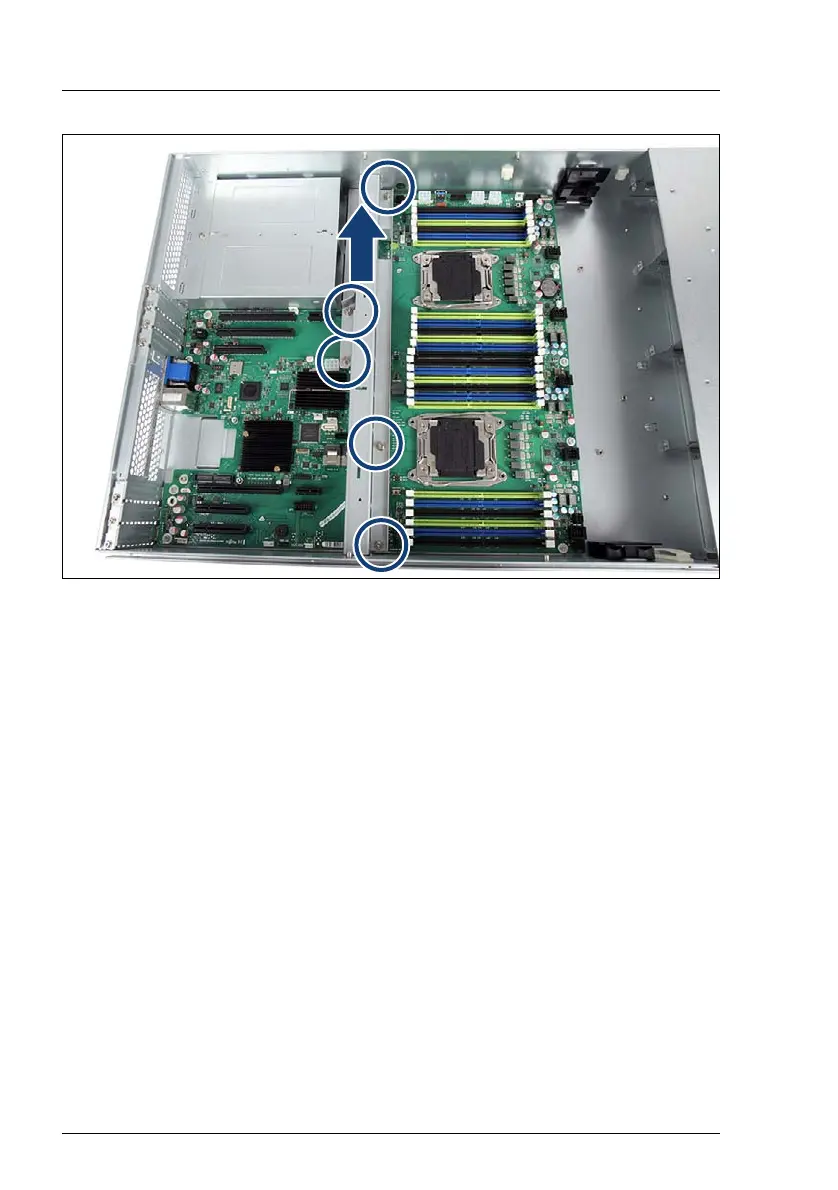

Figure 417: Installing the stabilizer bar
Ê Insert the stabilizer bar.
Ê Fasten the stabilizer bar with the 5 screws.
Ê Verify the settings on the new system board (see figure "Onboard settings"
on page 599).
Swapping CPUs
Ê "Opening the load plate" on page 364
Ê Carefully remove the CPUs from their sockets on the defective system board
as described in "Removing a CPU" on page 374.
V CAUTION!
Remove and reinstall one CPU at a time. Do not remove the second
CPU from the defective system board until the first CPU has been
installed on the new system board.
Ê "Installing the CPU" on page 363.
I Since the defective system board is sent back for repair, protect the
delicate CPU socket springs with a socket cover.
