Basic hardware procedures

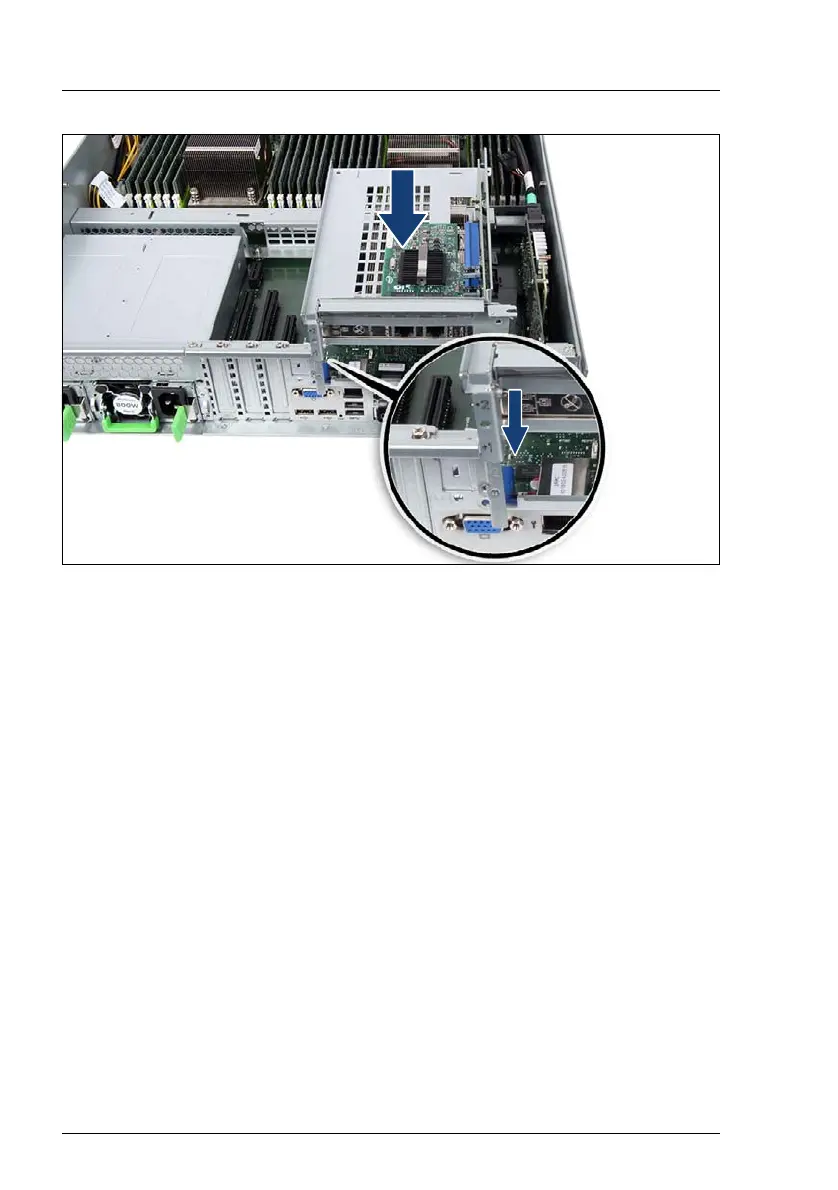

Figure 18: Installing the riser module 1 (A)
Ê Insert the riser module.
I Make sure that the riser module engages properly in the recesses
(see figure before).
Make sure that the bracket of the riser card holder is positioned
outside the chassis (see closeup).
Ê Carefully push down the riser module until the contacts of the riser card are
fully seated in the PCIe socket.
