Mazda 626 1981 - 01-04

Fig. 1-13
Fig. 1-14
Fig. 1-15
Fig. 1- 16
1

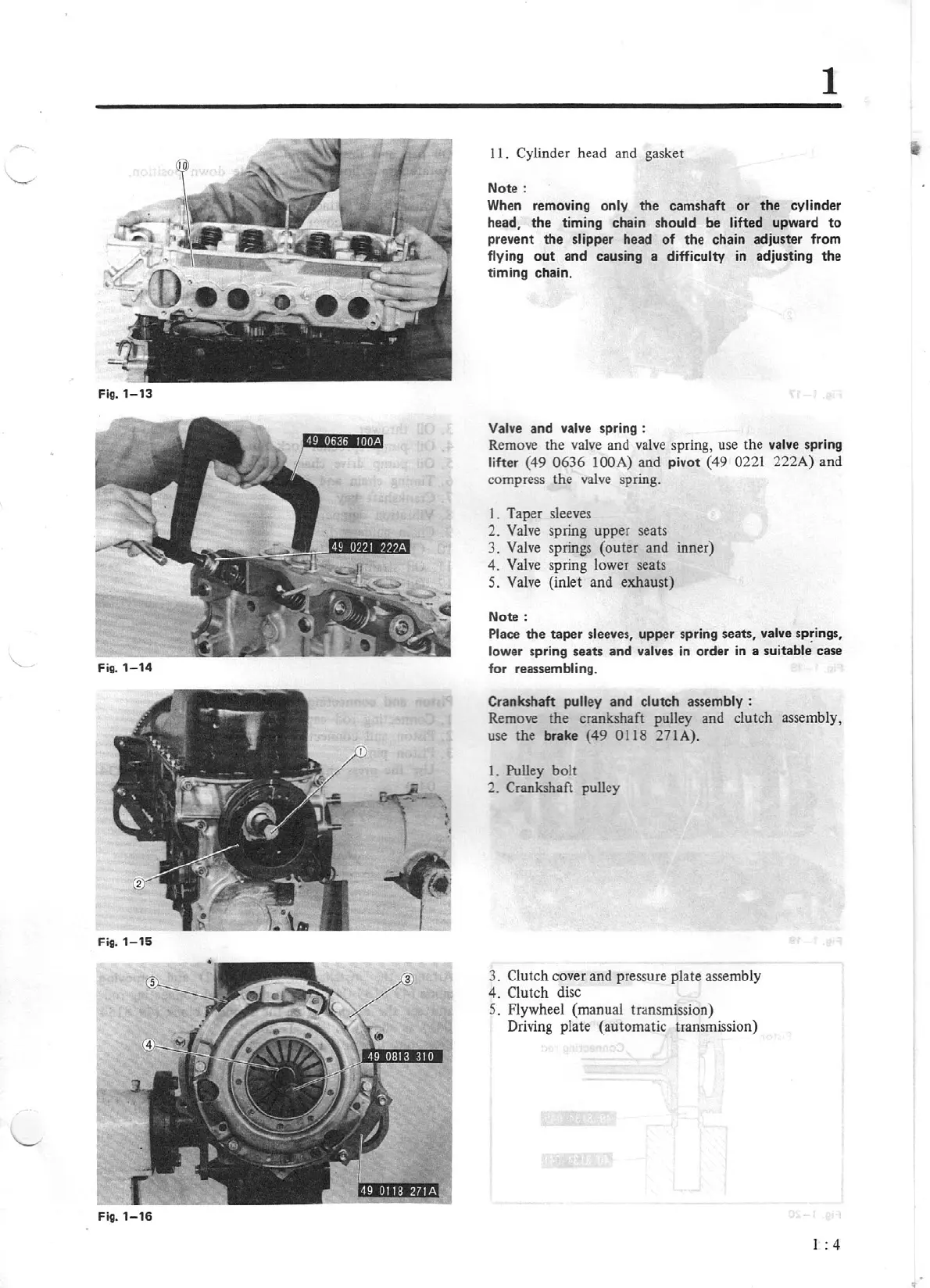

11. Cylinder head and gasket
Note:
When removing only the camshaft or the cylinder
head, the timing chain should be lifted upward
to
prevent the slipper head of the chain adjuster from
flying
out and causing a difficulty in adjusting the
timing chain.
Valve and valve spring :
Remove the valve and valve spring, use the valve spring
lifter (49 0636
IOOA) and pivot (49 0221 222A) and
compress the valve spring.
1. Taper sleeves
2. Valve spring upper seats
3. Valve springs (outer and inner)
4. Valve spring lower seats
5. Valve (inlet and exhaust)
Note:
Place the taper sleeves, upper spring seats, valve springs,
lower spring seats and valves in order
in a suitable case
for reassembling.
Crankshaft pulley and clutch assembly :
Remove the crankshaft pulley and clutch assembly,
use the brake
(49 0118 271A).
1. Pulley bolt
2. Crankshaft pulley
3. Clutch cover and pressure plate assembly
4. Clutch disc
5. Flywheel (manual transmission)
Driving plate (automatic transmission)
1 : 4
