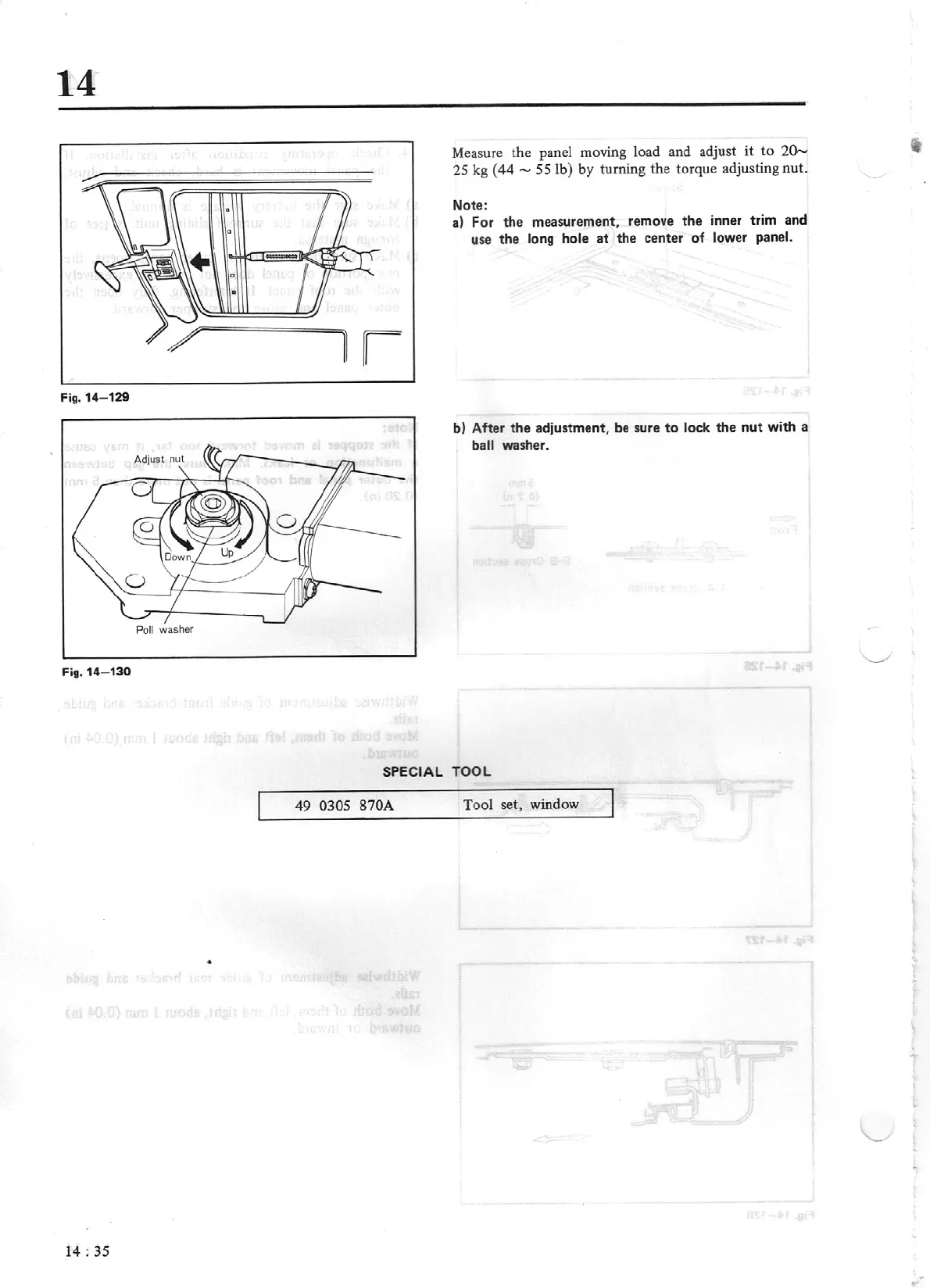

Mazda 626 1981 - 14-35

14
Fig.
14-129
Fig.
14-130
•
14:
35
Measure the panel moving load and adjust
it
to
20--
25 kg
(44
-
55
lb) by turning the torque adjusting nut.
Note:
a) For
the
measurement, remove
the
inner trim and
use
the
long hole
at
the
center
of
lower panel.
b) After
the
adjustment, be sure
to
lock
the
nut
with
a
ball
washer.
SPECIAL TOOL
49
0305
870A
Tool set, window
