13
Fig.
13-1
Fig.
13-2
Fig.
13
-3
•
F
ig.
13-4
13
: 1
1
3-A.

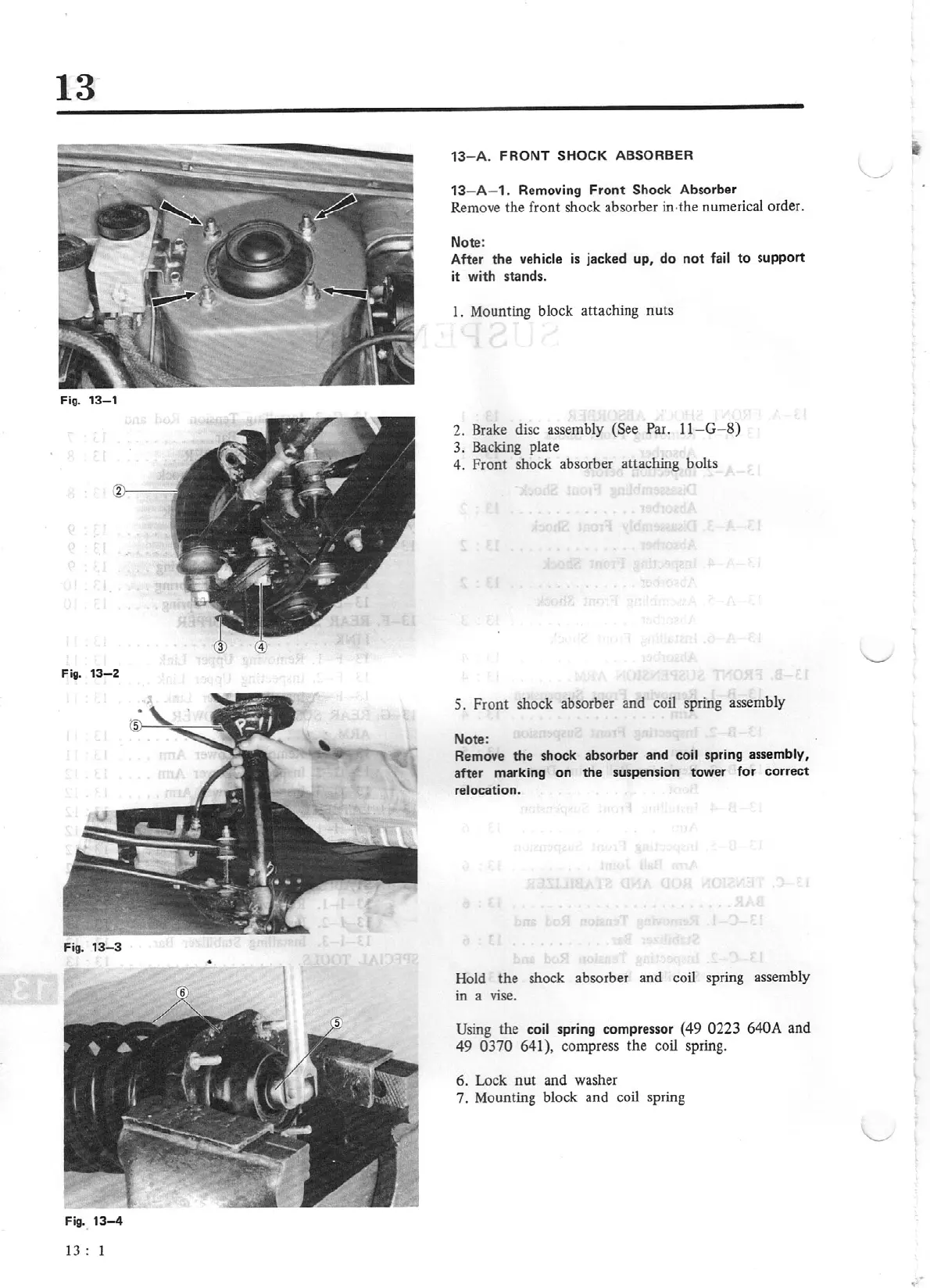

FRONT
SHOCK ABSORBER
13-A
- 1.
Removing
Front
Shock
Absorber
Remove the front shock absorber
in
·the
numerical order.
Note:
After the
vehicle
is
jacked up,
do
not
fail
to
support
it with stands.
1. Mounting block attaching nuts
2.
Brake disc assembly (See
Par.
11
- G-
8)
3.
Backing plate
4.
Front shock absorber attaching bolts
5.
Front shock absorber and coil spring assembly
Note:
Remove the shock absorber and coil
spring assembly,
after marking on the suspension tower for correct
relocation.
Hold the shock absorber and coil spring assembly
in
a
vise.
Using
the
coil
spring compressor ( 49
0223 640A
and
49
0370
64
1), compress the coil spring.
6. Lock
nut
and washer
7. Mounting block and coil spring
To Next Page
