Mazda 626 1981 - 10 A-10

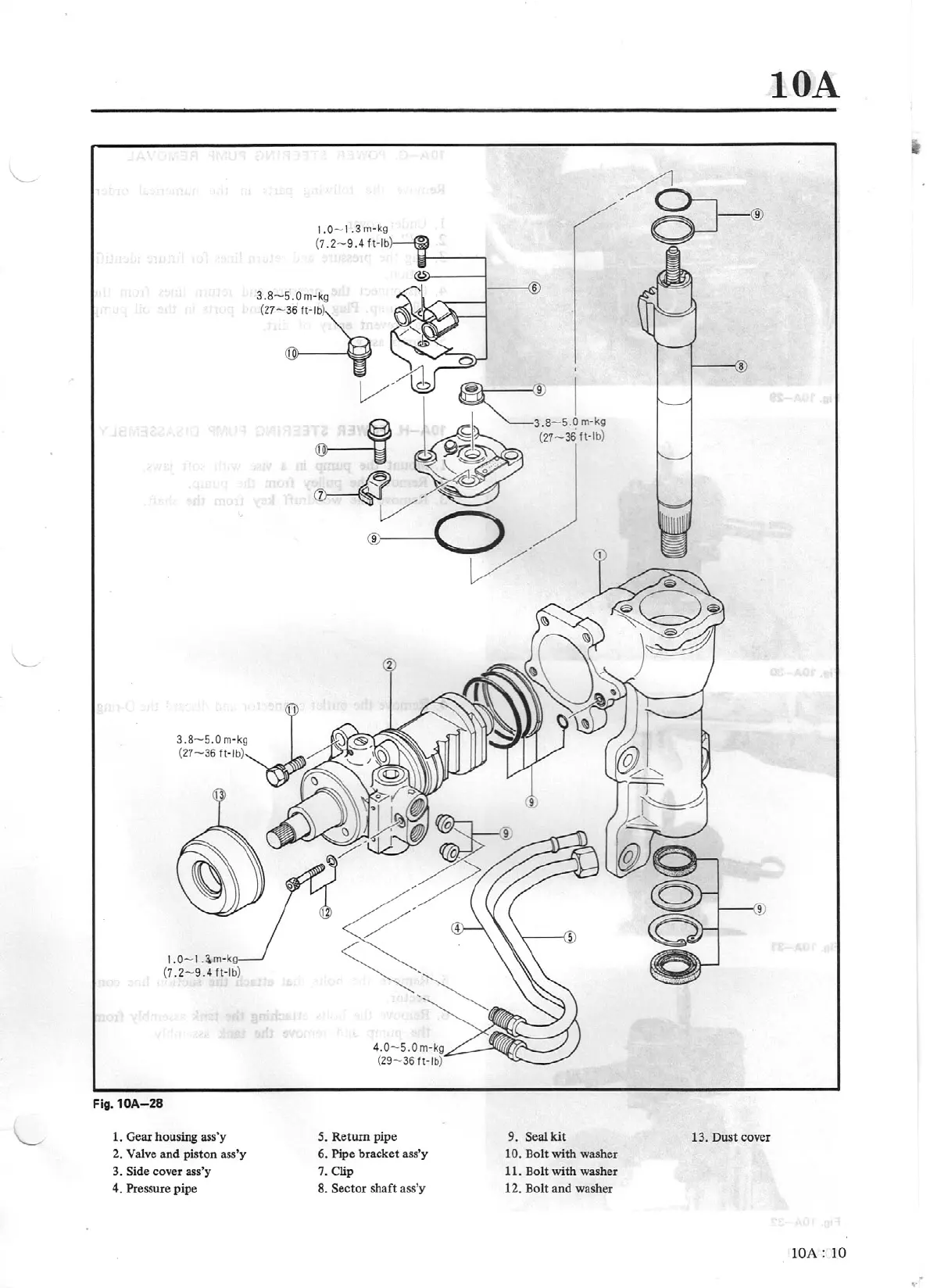

Fig.
10A-28
1.
Gear
housing ass'y
2.
Va
lve
an
d piston ass'y
3.
Side
cover ass'y
4. Pressure pipe
1.0- 1.3
m-
kg
(
7.2-9
.4f
t-lb
S.
Return pipe
6.
Pipe brack
et
ass'y
7. Clip
8.
Sector
shaft ass'y
lOA
t----<.8
9.
Seal
kit
13.
Dust
cover
10.
Bolt with washer
11. Bolt with washer
12. Bolt and washer
lOA:
10
