Blow
Fig.
lA-44
Fig.
lA-45
•
lA

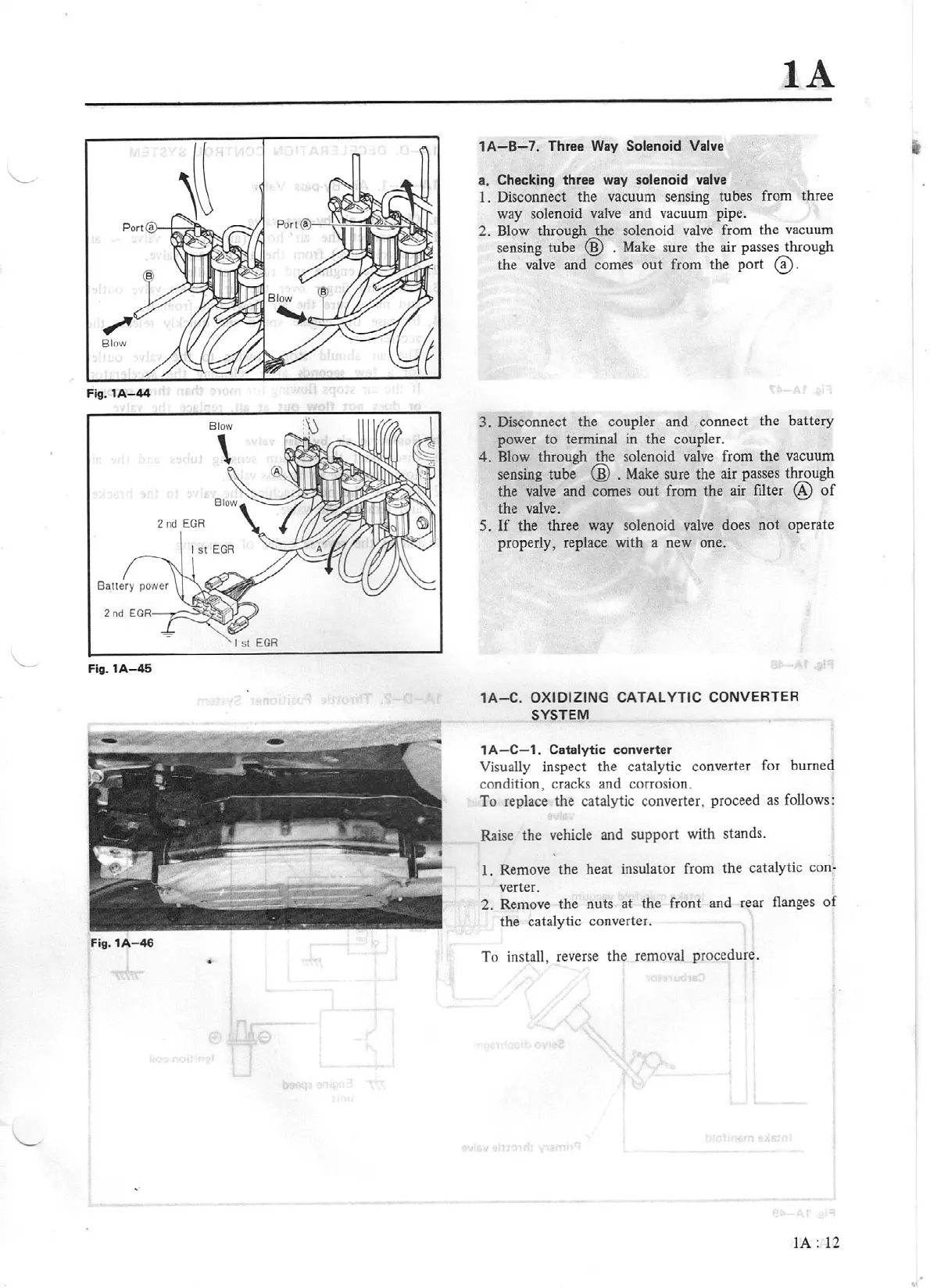

1A-B-7.
Three Way Solenoid Valve
a. Checking
three
way solenoid valve
1. Disconnect the vacuum sensing tubes from three
way solenoid valve and vacuum pipe.
2. Blow through the solenoid valve from the vacuum
sensing tube
@ .
Make sure the air passes through
the valve and comes
out
from the
port
@.
3. Disconnect the coupler and connect the battery
power
to
terminal in the coupler.
4.
Blow through the solenoid valve from the vacuum
sensing tube
@ .
Make sure the air passes through
the valve and comes
out
from the air filter
@
of
the valve.
5.
If
the three way solenoid valve does
not
operate
properly, replace with a new one.
1A-C
.
OX
IDIZING CATALYTIC
CONVERTER
SYSTEM
1
A-C-
1. Catalytic converter
Visually inspe
ct
the catalytic converter for burned
condition, cracks and corrosion.
To
replace the catalytic converter, proceed
as
follows:
Raise the vehicle and support with stands.
1. Remove the heat insulator from the catalytic
con-
verter.
2. Remove the nuts at the front and rear flanges
of
the catalytic converter.
To install, reverse the removal procedure .
IA:
12
