Mazda 626 1981 - 09-02

,Jr Press
Fig. 9-5
Fig. 9-6
Fig. 9-7
9

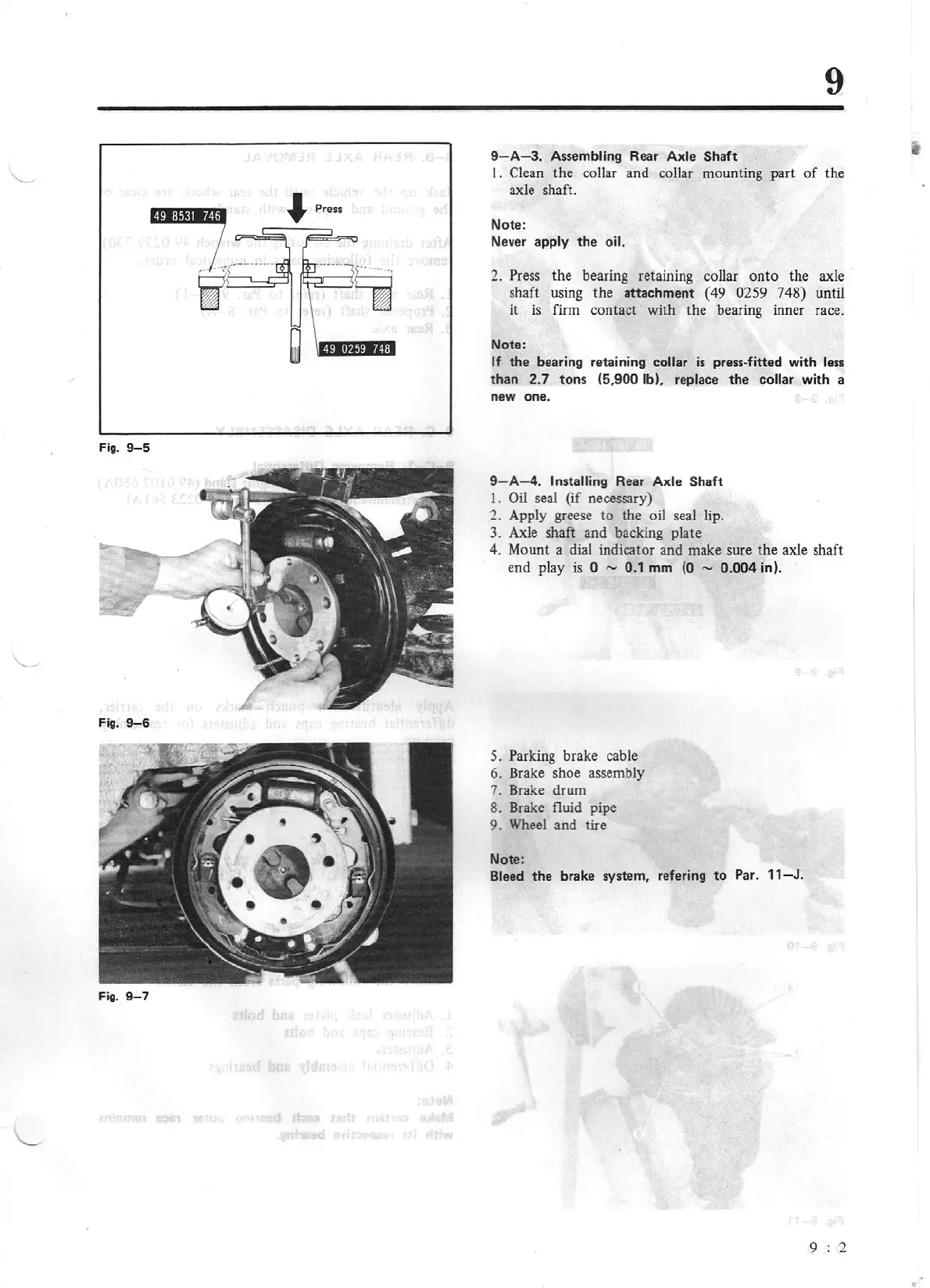

9-A-3. Assembling Rear Axle Shaft
I . Clean the collar and collar mo un ting part of the
axle shaft.
Note:
Never apply the oil.
2. Press the bearing retaining collar onto the axle ·
shaft using the attachment
(49 0259 748) until
it is firm contact with the bearing inner race.
Note:
If the bearing retaining collar is press-fitted with less
than 2.7 tons (5,900 lb), replace the collar with a
new one.
9-A-4. Installing Rear Axle Shaft
I. Oil seal (if necessary)
2. Apply greese to the oil seal lip.
3. Axle shaft and backing plate
4. Mount a dial indicator and make sure the axle shaft
end play
is 0 ,..., 0.1 mm (0 - 0.004 in).
5. Parking brake cable
6. Brake shoe assembly
7. Brake drum
8. Brake fluid pipe
9. Wheel and tire
Note:
Bleed the brake system, refering to Par. 11-J .
9 2
