Mazda 626 1981 - 05-06

Fig.
5-18
Fig. 5-
19
•
Fig.
5-20
5

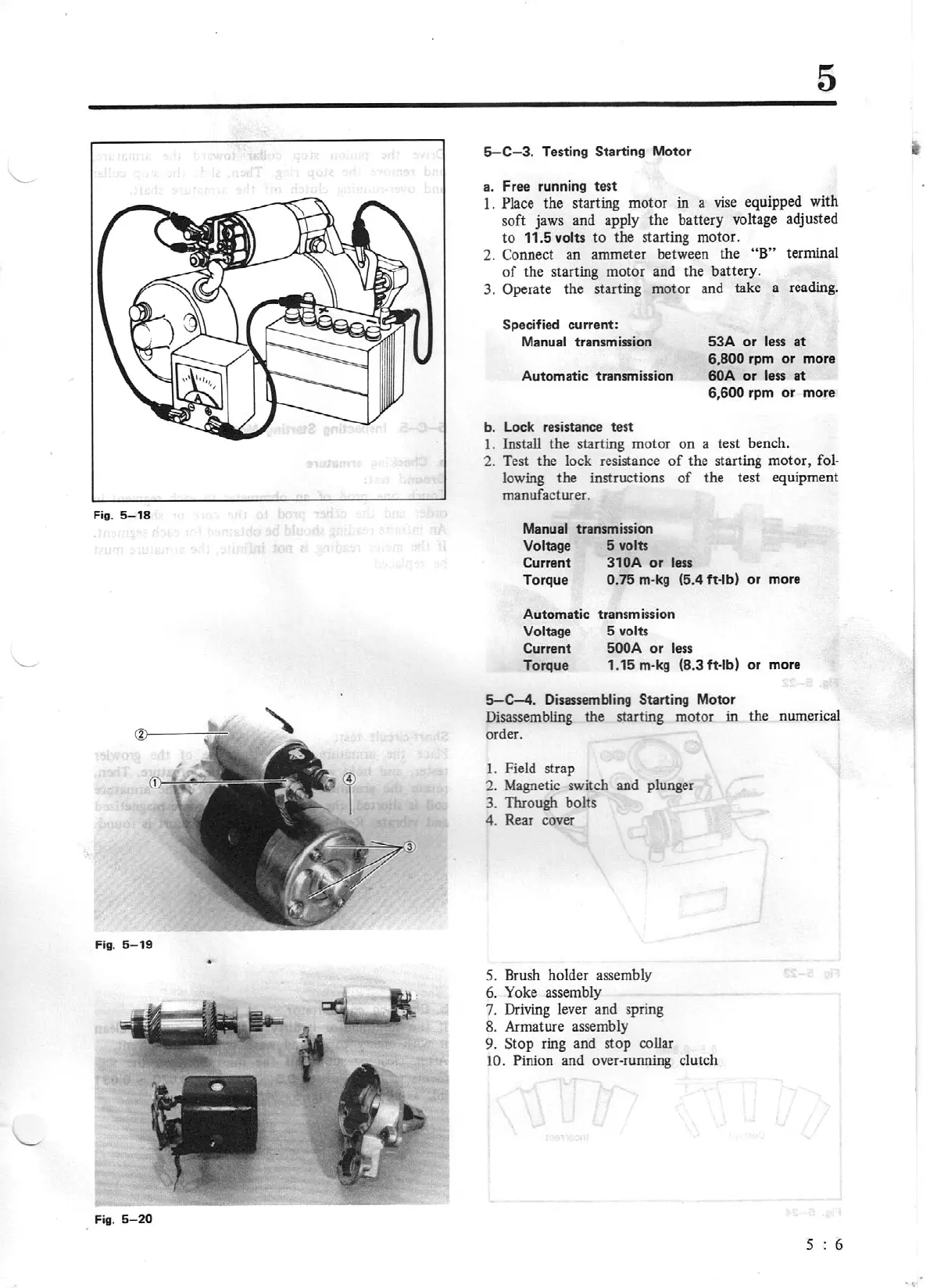

5-C-3.
Testing Starting Motor
a. Free running test
l.
Place the starting motor in a
vise
equipped with
soft jaws and apply the battery voltage adjusted
to
11.5
volts
to the starting motor.
2.
Connect an ammeter between the
"B"
terminal
of
the starting motor and the battery.
3.
Operate
the starting motor and take a reading.
Specified current:
Manual
transmission
Automatic transmission
53A
or
less
at
6,800
rpm or more
80A
or
less
at
6,600
rpm or more
b. Lock resistance test
1.
Install the starting motor
on
a test bench.
2. Test the lock resistance
of
the starting motor,
fol·
lowing the instructions
of
the test equipment
manufacturer.
Manual
transmission
Voltage 5
volts
Current
310A
or
less
Torque 0.75 m·
kg
(5.4
ft-lb)
or
more
Automatic
Voltage
Current
Torque
transmission
5
volts
500A
or
less
1.15
m·kg
(8.3
ft-lb)
5-C-4.
Disassembling Starting Motor
or
more
Disassembling the starting motor in the numerical
order.
1.
Field strap
2. Magnetic switch and plunger
3. Through bolts
4. Rear cover
5. Brush holder assembly
6.
Yoke
assembly
7. Driving lever and spring
8. Armature assembly
9. Stop ring and stop collar
10. Pinion
and over-running clutch
5
6
.
'
