Mazda 626 1981 - 05-16

Fig.5-05
Fig. 5-56
Fig. 5-57
Fig. 5-58

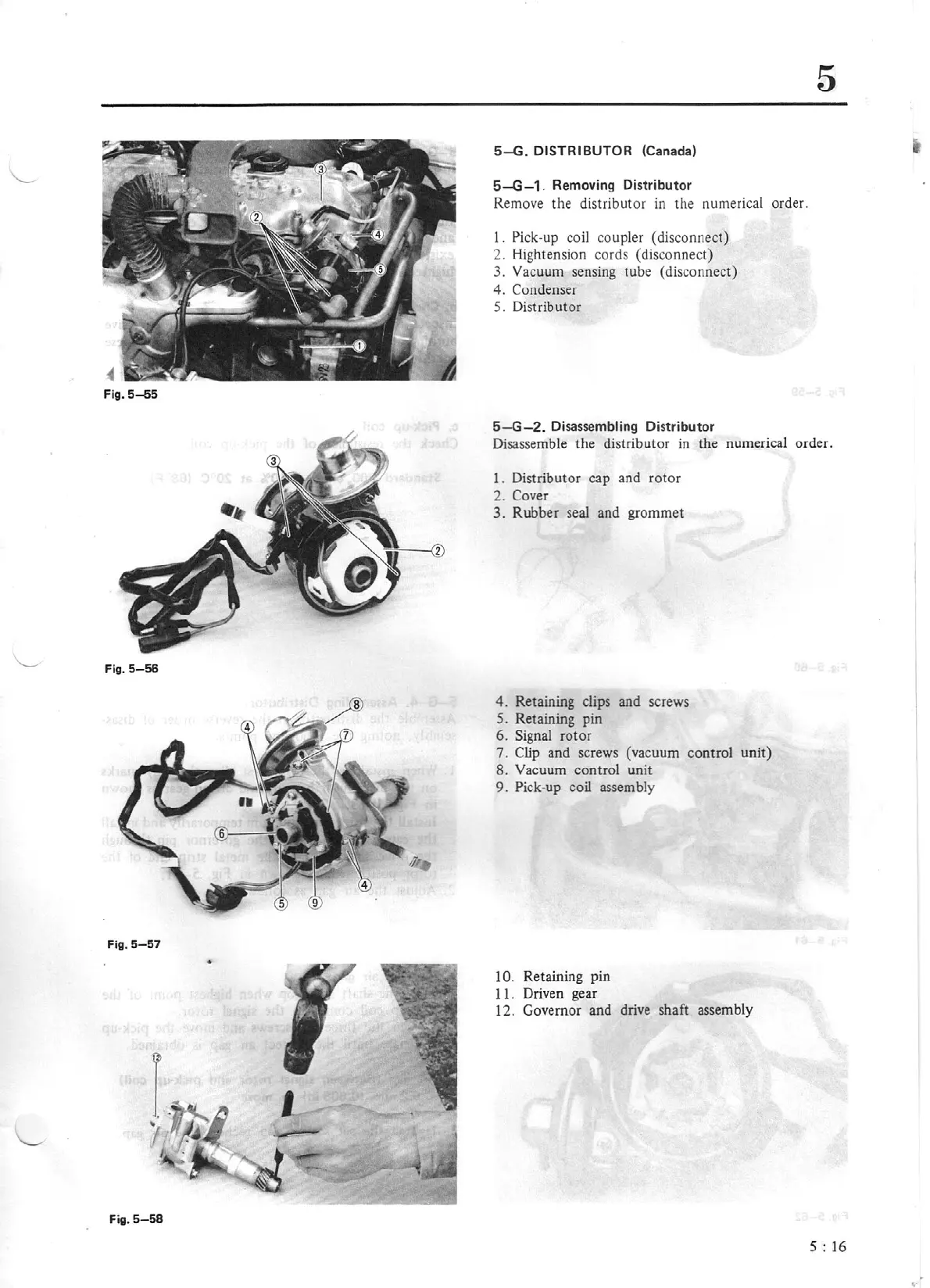

5-G . DISTRIBUTOR (Canada)
5-G-1 . Removing Distributor
Remove the distributor in the numerical order.
I. Pick-up coil coupler (disconnect)
2. Hightension cords (disconnect)
3. Vacuum sensing tube (disconnect)
4. Condenser
S. Distributor
5-G-2. Disassembling Di stributor
5
Disassemble the distributor in the numerical order.
l. Distributor cap and rotor
2. Cover
3. Rubber seal and grommet
4. Retaining clips and screws
5. Retaining pin
6. Signal
rotor
7. Clip and screws (vacuum control unit)
8. Vacuum control unit
9. Pick-up coil assembly
10. Retaining pin
11. Driven gear
12. Governor and drive shaft assembly
s : 16
