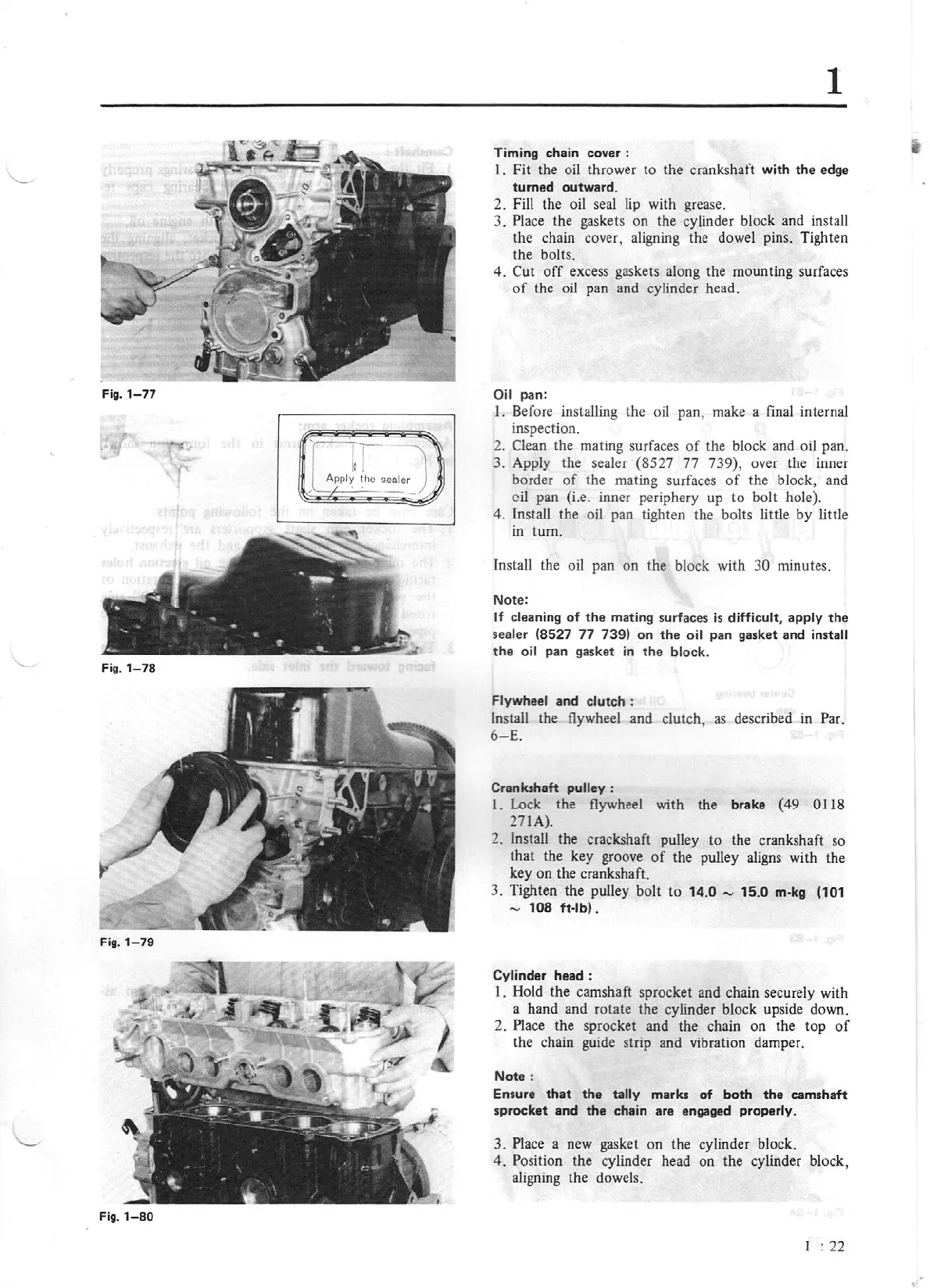

Timing chain cover :
1.
Fit the oil thrower to
the
crankshaft with
the
edge
turned
outward.
2. Fill the oil seal lip with grease.
3.
Place the gaskets
on
the cylinder block and install
the chain cover, aligning the dowel pins. Tighten
the bolts.
4.
Cut
off
excess gaskets along
the
mounting surfaces
of
the oil pan and cylinder head.
Oil
pan:
1.
Before installing the oil pan, make a final internal
inspection.
2. Clean the mating surfaces
of
the block and oil pan.
3. Apply the sealer (8527 77 739), over the inner
border
of
the mating surfaces
of
the block, and
cil pan (i.e. inner periphery up
to
bolt hole).
4.
Install
the
oil pan tighten the bolts little
by
little
in turn.
Tnstall the oil pan
on
the block
with
30
minutes.
Note:
If cleaning
of
the
mating surfaces
is
difficult, apply
the
sealer (8527
77
739)
on
the
oil pan gasket and install
the
oil pan gasket in
the
block.
Flywheel and clutch :
Install the flywheel and clutch,
as
described in Par.
6-
E.
Crankshaft pulley :
l.
Lock the flywheel with the brake (
49
0118
271A).
2. Install the crackshaft pulley to the crankshaft so
that
the key groove
of
the pulley aligns with the
key on the crankshaft.
3. Tighten the pulley bolt
to
14
.0 -
15.0
m-kg (101
-
108
ft
·
lb).
Cylinder head :
I.
Hold
the
camshaft sprocket and chain securely with
a hand and rotate the cylinder block upside down.
2. Place
the
sprocket and the chain on the
top
of
the chain guide strip and vibration damper.
Note:
Ensure
that
the
tally marks
of
both
the
camshaft
sprocket and
the
chain are engaged properly.
3.
Place a new gasket on the cylinder block.
4.
Position
the
cylinder head on the cylinder block,
aligning the dowels.
l : 22
..
