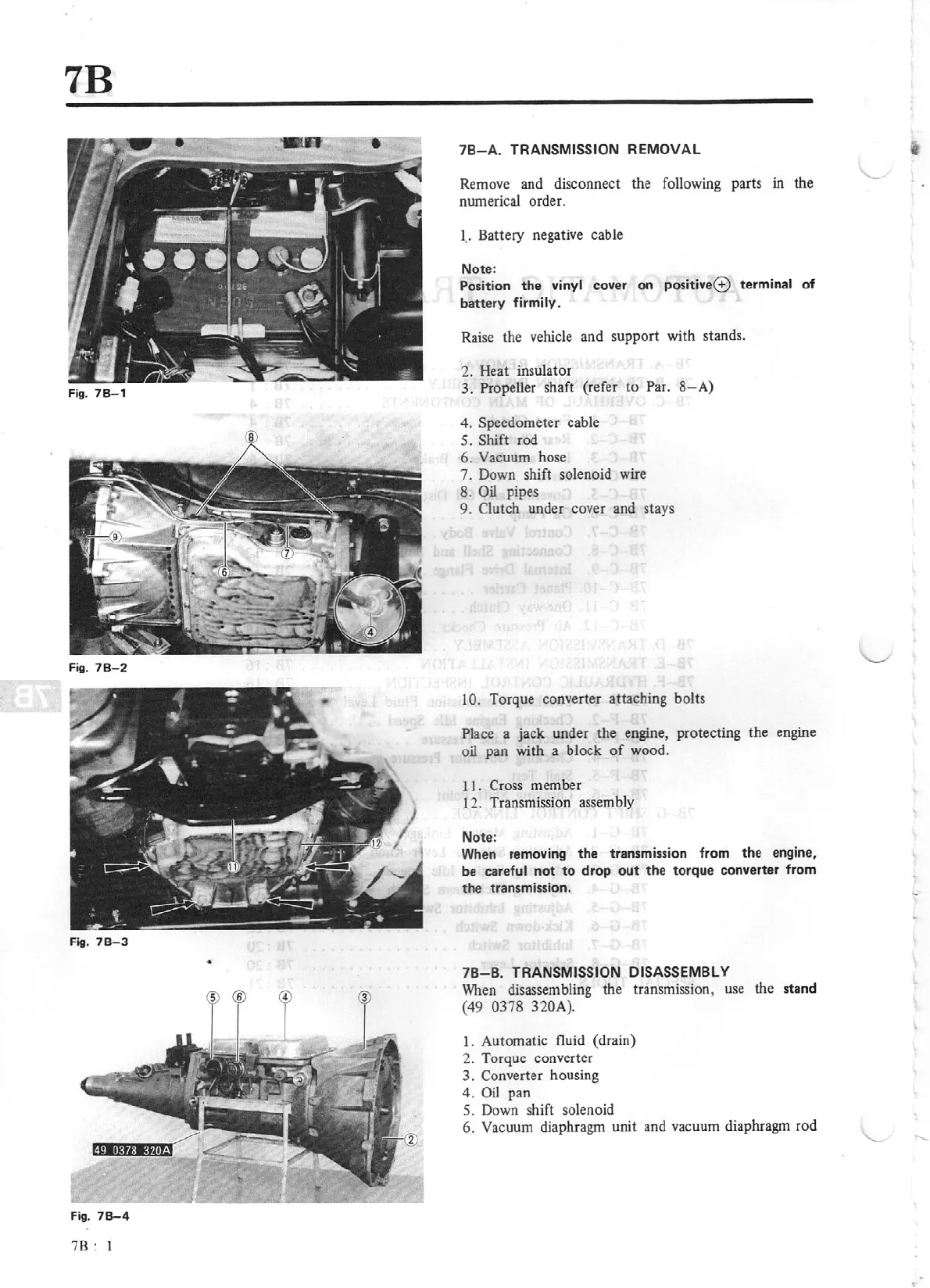

78-A.
TRANSMISSION
REMOVAL
Remove and disconnect the following parts in the
numerical order.
1 ..
Battery negative cable
Note:
Position the
vinyl cover on
positive
(B
te
rminal
of
battery
firmily.
Raise the vehicle and support with stands.
2. Heat insulator
3. Propeller shaft (refer
to
Par.
8-
A)
4. Speedometer cable
5.
Shift
rod
6. Vacuum hose
7. Down shift solenoid wire
8.
Oil
pipes
9. Clutch
under cover and stays
10.
Torque converter attaching bolts
Place
a
jack
under the engine, protecting the engine
oil pan with a block
of
wood.
11. Cross
member
12. Transmission assembly
Note:
When
removing
the
transmission from the engine,
be
careful
not
to
drop
out
the torque converter from
the transmission.
78
-8
.
TRANSMISSION DISASSEM8L
Y
When disassembling the transmission, use the stand
(49 0378 320A).
1.
Automatic fluid (drain)
2. Torque converter
3.
Converter
housing
4.
Oil
pan
5. Down shift solenoid
6. Vacuum diaphragm unit and vacuum diaphragm rod
