13
Fig.
13-16
Fig.
13-17
Fig.
13-18
13
: 5

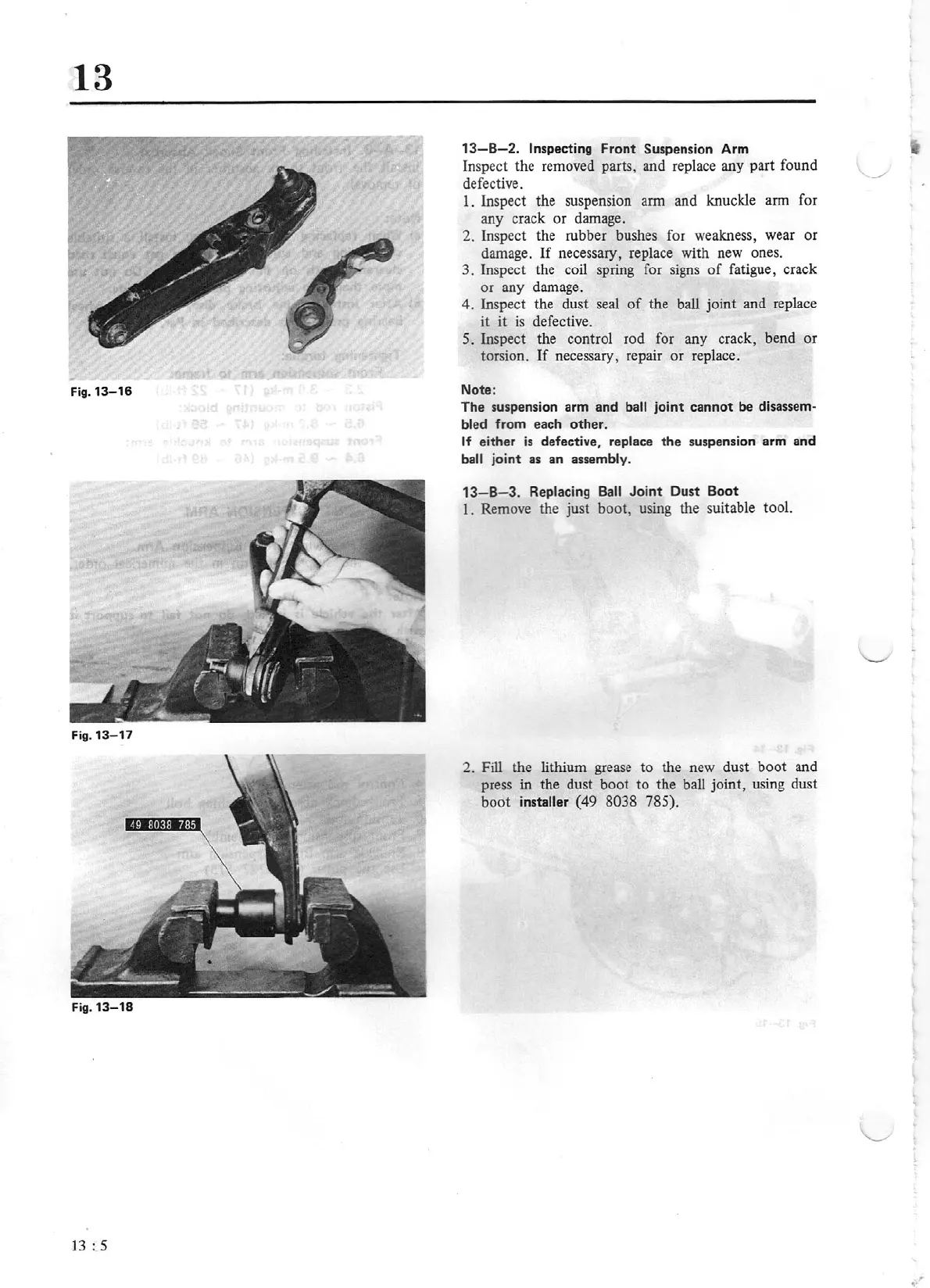

13-8-2.
Inspecting
Front
Suspension Arm
Inspect the removed parts, and replace any part found
defective.
1.
Inspect the suspension arm and knuckle arm for
any crack or damage.
2. Inspect the rubber bush
es
for weakness, wear or
damage.
If
necessary, r
ep
lace with new ones.
3. Inspect the coil spring for signs
of
fatigue, crack
or any damage.
4. Inspect the dust seal
of
the ball joint and replace
it it
is
defective.
5. Inspect the control rod for any crack, bend
or
torsion.
If
necessary, repair or replace.
Note:
The
suspensi
on
arm and ball
joint
cannot
be disassem-
bled
from
each
other
.
If
either
is
defective. replace
the
suspension arm
and
ball
joint
as an as.sembly.
13-B
- 3. Replacing Ball
Joint
Dust
Boot
I.
Remove the just boot, using the suitable tool.
2. Fill the lithium grease
to
the new dust boot and
press in the dust boot
to
the ball joint, using dust
boot
installer
(49
8038
785).
To Next Page
