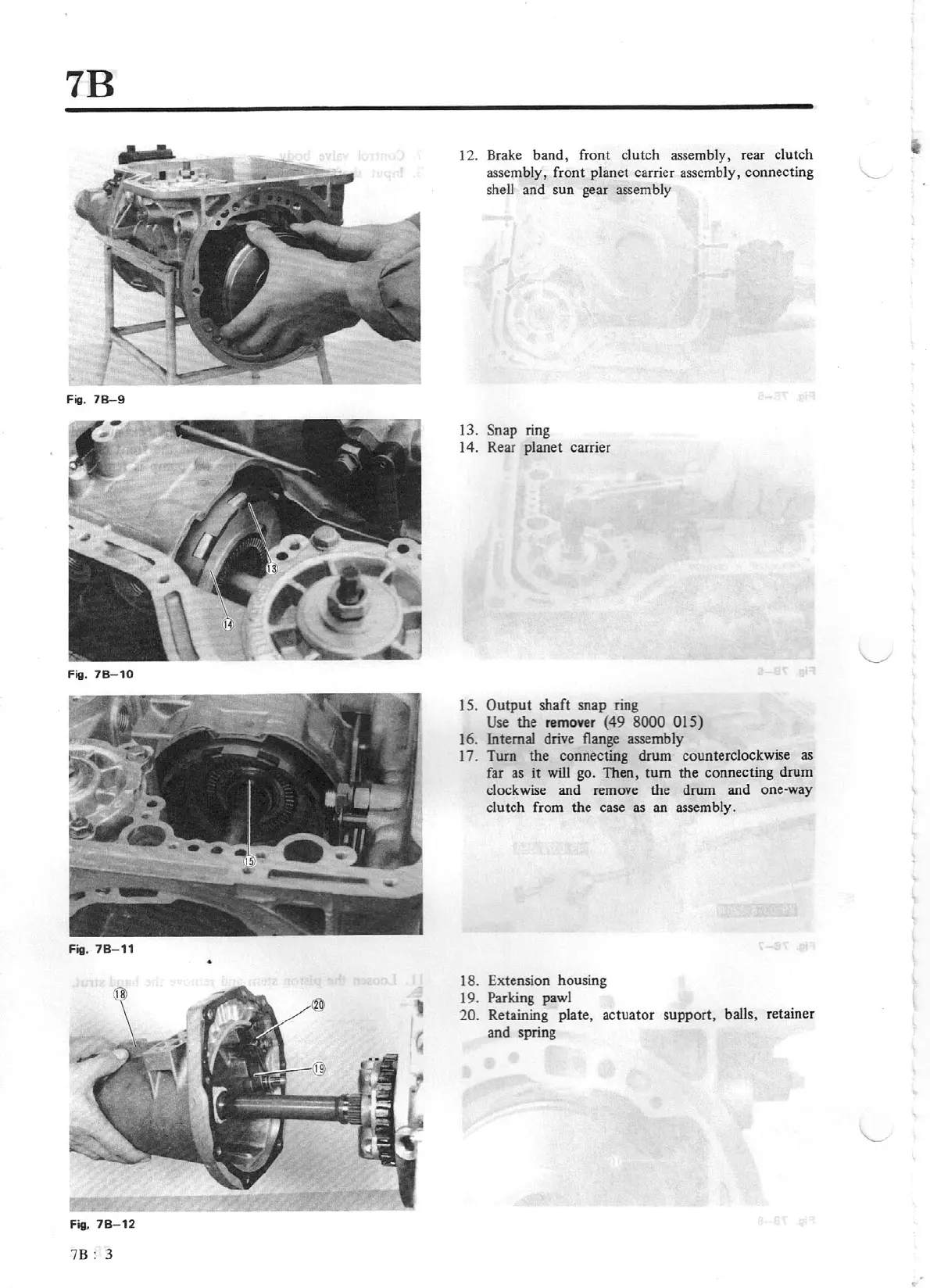

7B
Fig.
78-9
Fig.
78-10
Fig.
78-11
•
Fig,
78-12
7B : 3
12. Brake band, front clutch assembly, rear clutch
assembly, front planet carrier assembly, connecting
shell and sun gear assembly
13.
Snap
ring
14. Rear planet carrier
15
.
Output
shaft snap ring
Use
the
remover
(49
8000
015)
16. lntemaJ drive flange assembly
17
. Tum the connecting drum counterclockwise
as
far as
it
will
go. Then,
tum
the connecting dr
um
clockwise and remove the drum and one-way
clutch from the case
as
an assembly.
18. Extension housing
19
.
Parki
ng
pawl
20. Retaining plate, actuator support, balls, retainer
and spring
