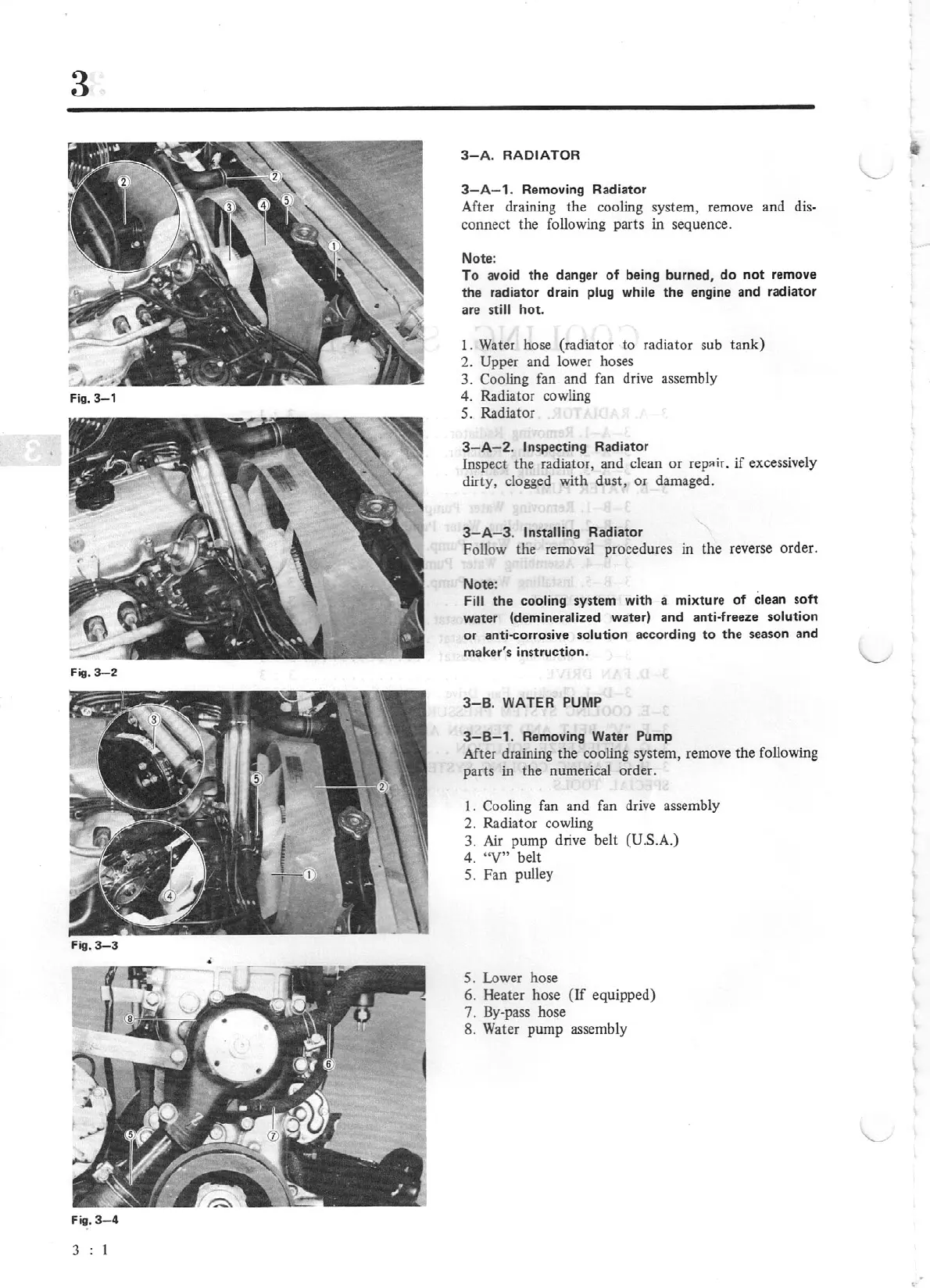

3
Fig.
3-1
Fig
.3-2
Fig.3-3
Fig.
3-4
3 : I
3-A.
RADIATOR
3-A-1.
Removing Radiator
After draining
the
cooling system, remove and
dis·
connect the following parts in sequence.
Note:
To
avoid
the
danger
of
being burned,
do
not
remove
the
radiator drain
plug while
the
engine and radiator
are still hot.
1. Water hose (radiator to radiator sub
tank)
2.
Upper
and lower hoses
3. Cooling fan and fan drive assembly
4. Radiator cowling
5. Radiator
3-
A-2.
Inspecting
Radiator
Inspect
the
radiator, and clean
or
rep11ir.
if
excessively
dirty, clogged
with
dust,
or
damaged.
3- A- 3.
Installing
Radiator
FolJow the removal procedures in the reverse order.
Note:
Fill
the
cooling system with a mixture
of
clean
soft
water (demineralized water) and anti·freeze
solution
or
anti-corrosive solution according
to
the
season
and
maker's instruction.
3-B
.
WATER
PUMP
3-B-1.
Removing Water Pump
After draining
the
cooling system, remove
the
following
parts in
the
numerical order.
I . Cooling fan and fan drive assembly
2.
Radiator cowling
3.
Air
pump
drive belt (U.S.A.)
4.
"V"
belt
5.
Fan pulley
5.
Lower hose
6. Heater hose
(If
equipped)
7. By-pass hose
8. Water
pump
assembly
To Next Page
