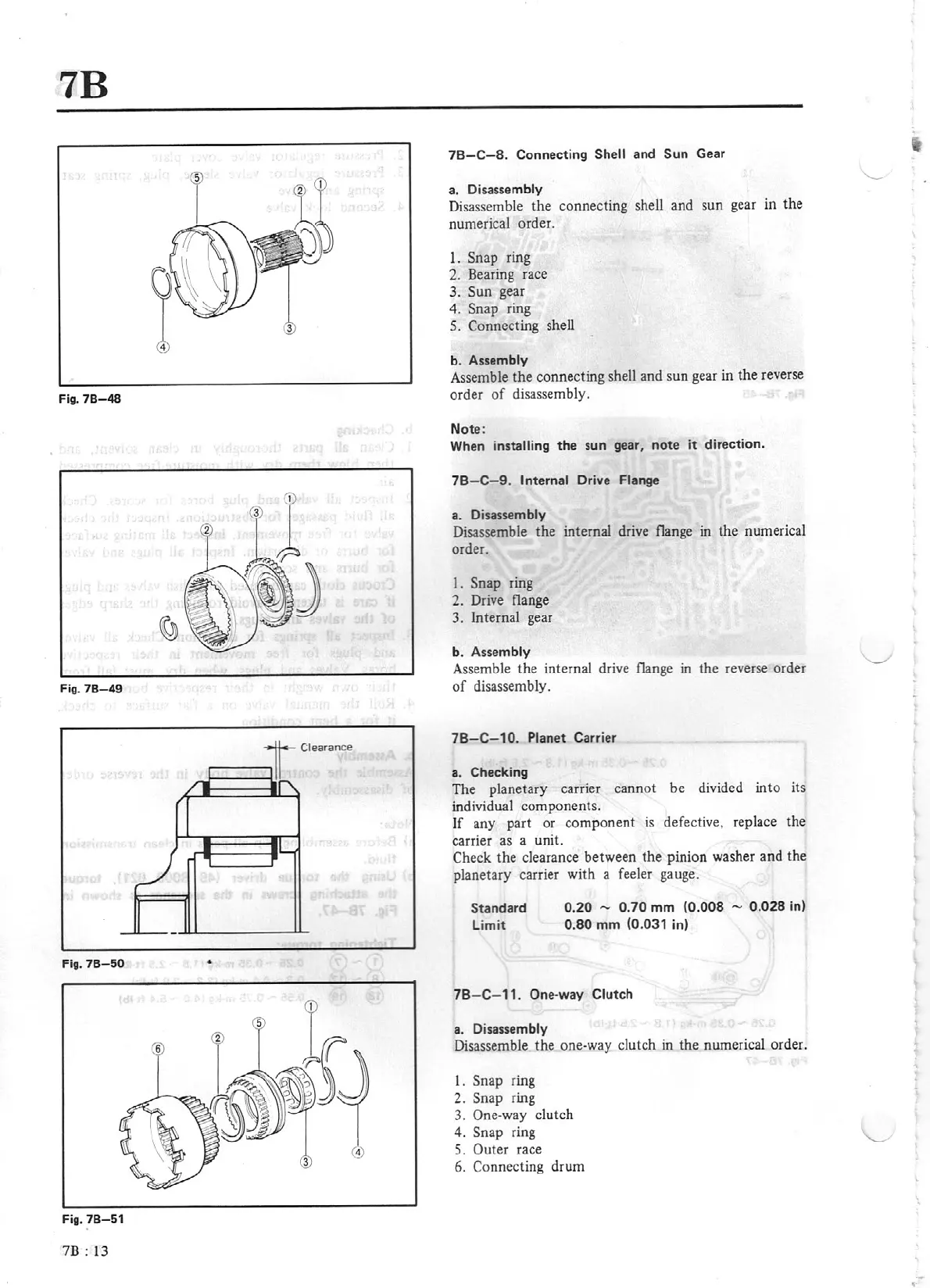

Mazda 626 1981 - 7 B-13

7B
Fig.
78-48
Fig.
78-49
Fig.
78-50
•
Fig.
78-51
7B :
13
78-C-8.
Connecting Shell
and Sun Gear
a. Disassembly
Disassemble the connecting sheIJ and sun gear in
the
numerical order.
1.
Snap ring
2.
Bearing race
3.
Sun
gear
4.
Snap
ring
5.
Connecting shell
b. Assembly
Assemble
the
connecting shell and sun gear in the reverse
order
of
disassembly.
Note:
When
installing
the
sun gear,
note
it direction.
78
-
C-9.
Internal Drive Flange
a. Disassembly
Disassemble
the
internal drive flange
in
the numerical
order.
I.
Snap
ring
2.
Drive flange
3.
Internal gear
b. Assembly
Assemble the internal drive flange
in
the reverse order
of
disassembly.
78-C-10.
Planet Carrier
a. Checking
Th
e planetary carrier cannot be divided
into
its
individual components.
If any part
or
comp
onent
is
defective, replace the
carrier as a unit.
Check
the clearance between
the
pinion washer
and
the
planetary carrier with a feeler gauge.
Standard
Limit
0.20
-
0.70
mm
(0.008 - 0 .
028
in)
0.
80
mm
(0.031 in)
78
-
C-11.
One-way
Clutch
a. Disassembly
Disassemble
the
one·way clutch
in
the
numerical order.
I.
Snap
ring
2. Snap
ring
3. One-way
clutch
4.
Snap ring
5.
Outer race
6.
Connecting
drum
