10
Flg.10
-25
Fig.
10-26
Fig.
10-27
Fig.10-28
IO: 7
10
-
B.

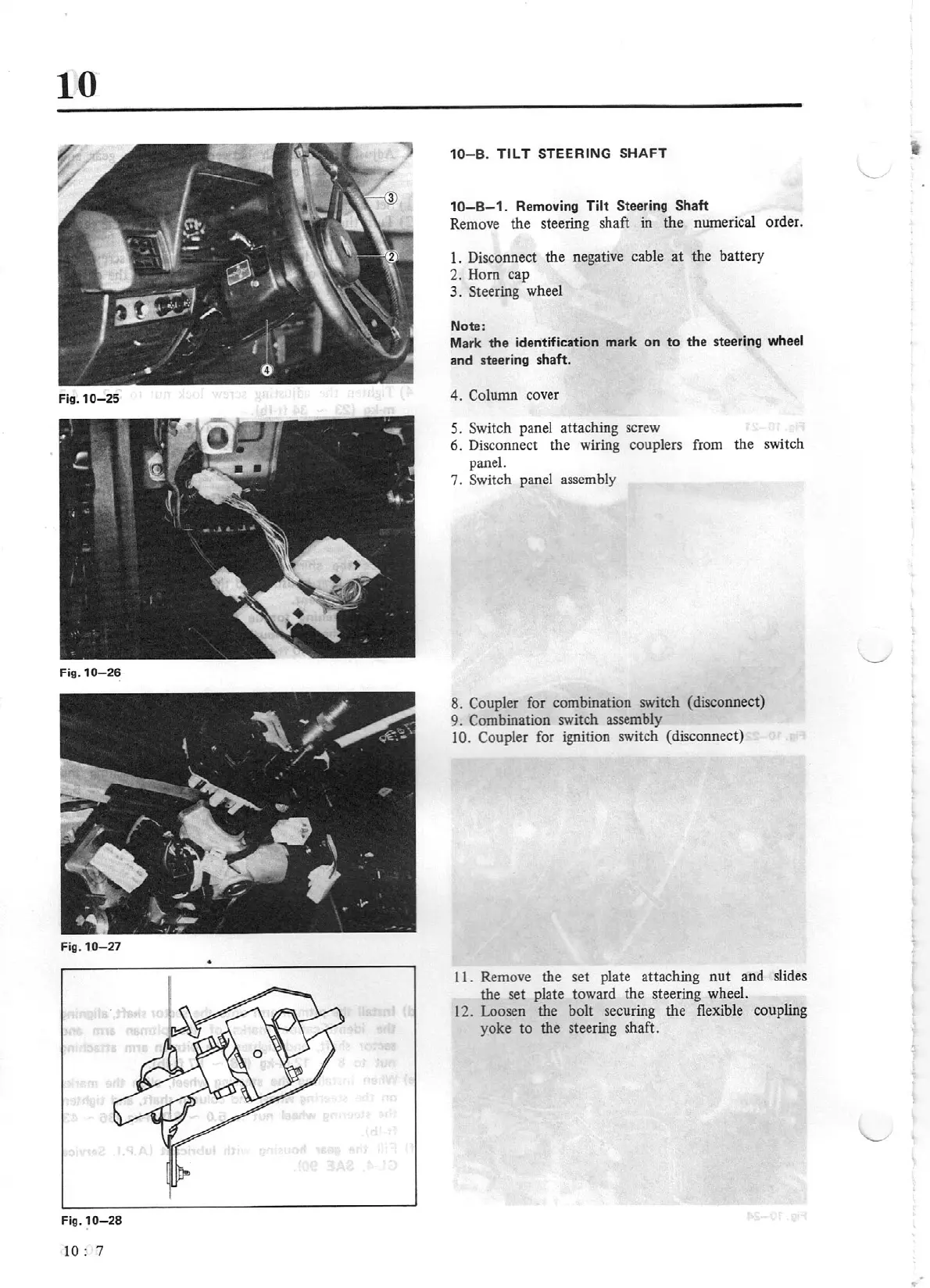

TILT STEERING SHAFT
10-B-1.
Removing Tilt Steering Shaft
Remove the steering shaft
in
the numerical order.
1. Disconnect the negative cable
at
the battery
2. Horn cap
3.
Steering
wheel
Note:
Mark
the
identification mark on
to
the
steering wheel
and stee
ring
shaft.
4.
Column cover
S.
Switch panel attaching screw
6.
Disconnect the wiring couplers from the switch
panel.
7.
Switch panel assembly
8. Coupler for combination switch (disconnect)
9.
Combination
switch assembly
10.
Coupler for ignition switch (disconnect)
11. Remove the set plate attaching
nut
and slides
the set plate toward the steering wheel.
12. Loosen the bolt securing the flexible coupling
yoke
to
the steering shaft.
..
To Next Page
