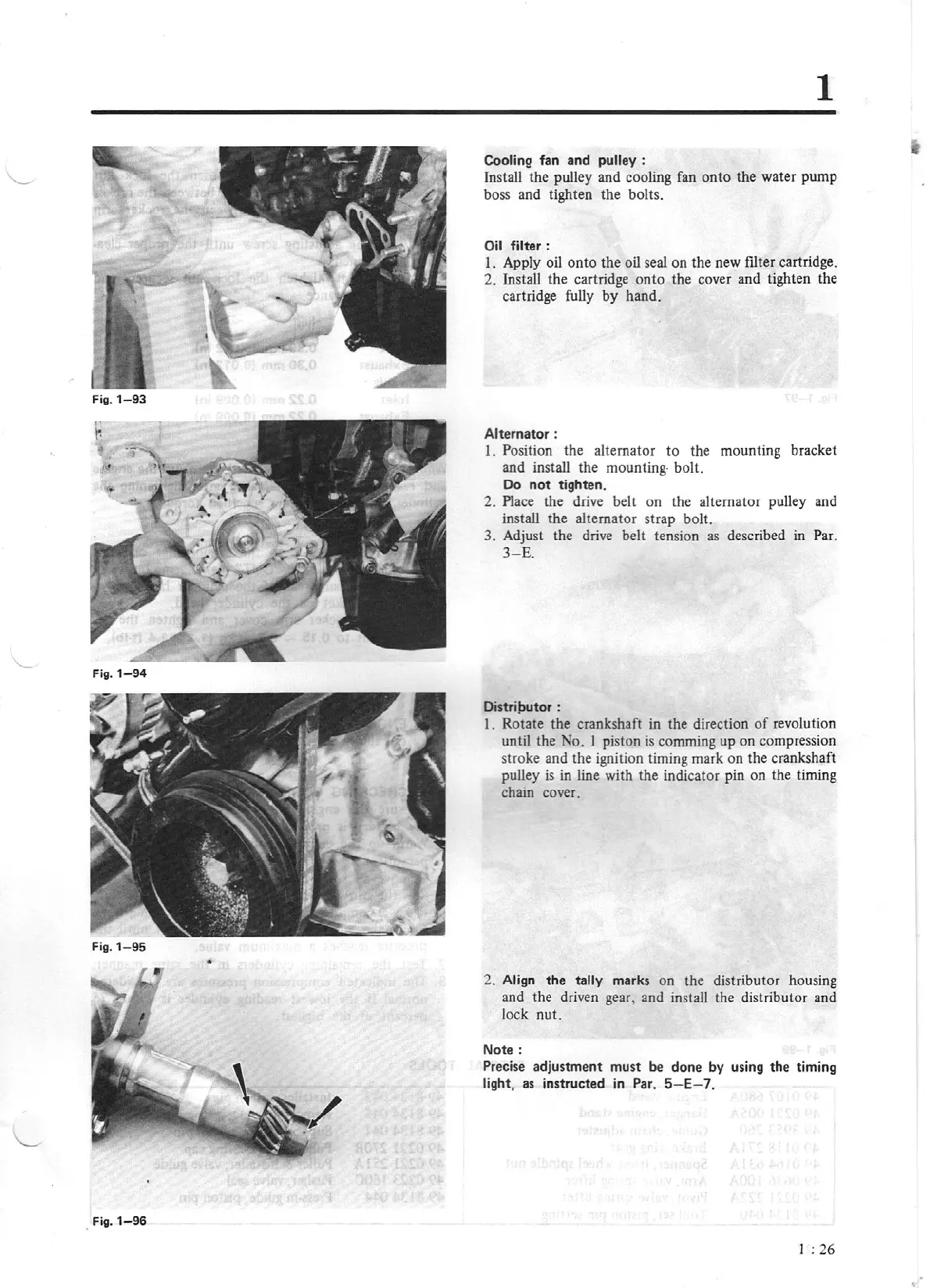

Fig.
1-93
Fig.
1-94
Fig.
1-95
•
Fig. 1
-9
6
1
Cooling fan and pulley :
Install the pulley and cooling fan
onto
the water pump
boss and tighten the bolts.
Oil
filter :
I.
Apply oil
onto
the oil seal on the new filter cartridge.
2.
Install the cartridge
onto
the cover and tighten the
cartridge fully
by
hand.
Alternator :
1. Position the alternator
to
the mounting bracket
and install the mounting bolt.
Do
not
tighten.
2. Place the drive belt on the alternator pulley and
install the alternator strap bolt.
3. Adjust the drive belt tension
as
described in Par.
3-E.
Distri!>utor :
I.
Rotate the crankshaft in the direction
of
revolution
until the No. I piston
is
comming up on compression
stroke and the ignition timing mark on the crankshaft
pulley
is
in
line with the indicator pin on the timing
chain cover.
2. Align the tally marks on the distributor housing
and the driven gear, and install the distributor and
lock nut.
Note:
Precise adjustment must be done by using the timing
light,
as
instructed
in
Par.
5-E-7.
I : 26
