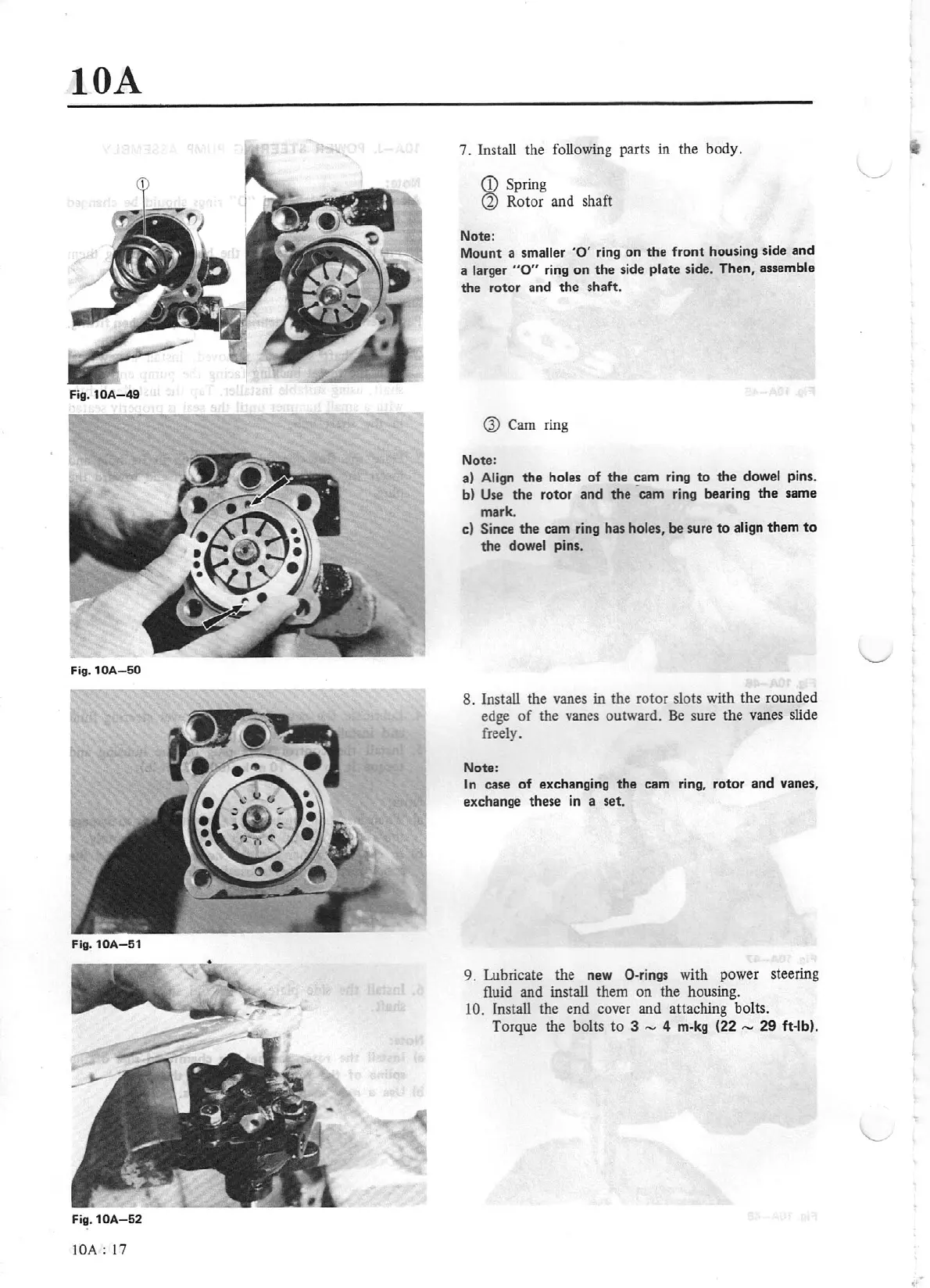

Mazda 626 1981 - 10 A-17

IOA
Fig.10A-49
Fig.
10A
-5
0
F
ig.1
0A-51
Fig.
10A-52
IOA: 17
7. Install the
fo
llowing parts in the body.
(D
Spring
@
Rotor and shaft
Note:
Mount a
smaller
'O'
ring on
the
front
housing side and
a
larger
"O"
ring
on
the
side
plate
side. Then, assemble
the
rotor
and
the
shaft.
®Cam
ring
Note:
a)
Align
the
holes
of
the
cam ring
to
the
dowel
pins.
b)
Use
the
rotor
and
the
-cam ring bearing
the
same
mark.
c)
Since
the
cam ring has holes,
be
sure
to
align
them
to
the
dowel
pins.
8. Install the vanes in the rotor slots with the rounded
edge
of
the vanes outward.
Be
sure the vanes slide
freely.
Note:
In
case
of
exchanging
the
cam ring,
rotor
and vanes,
exchange these
in
a set.
9. Lubricate the
new
0-rings
with power steering
fluid and install them on the housing.
10. Install the end cover and attaching bolts.
Torque the bolts
to
3
....,
4
m-kg
(22
....,
29
ft
·lb).
