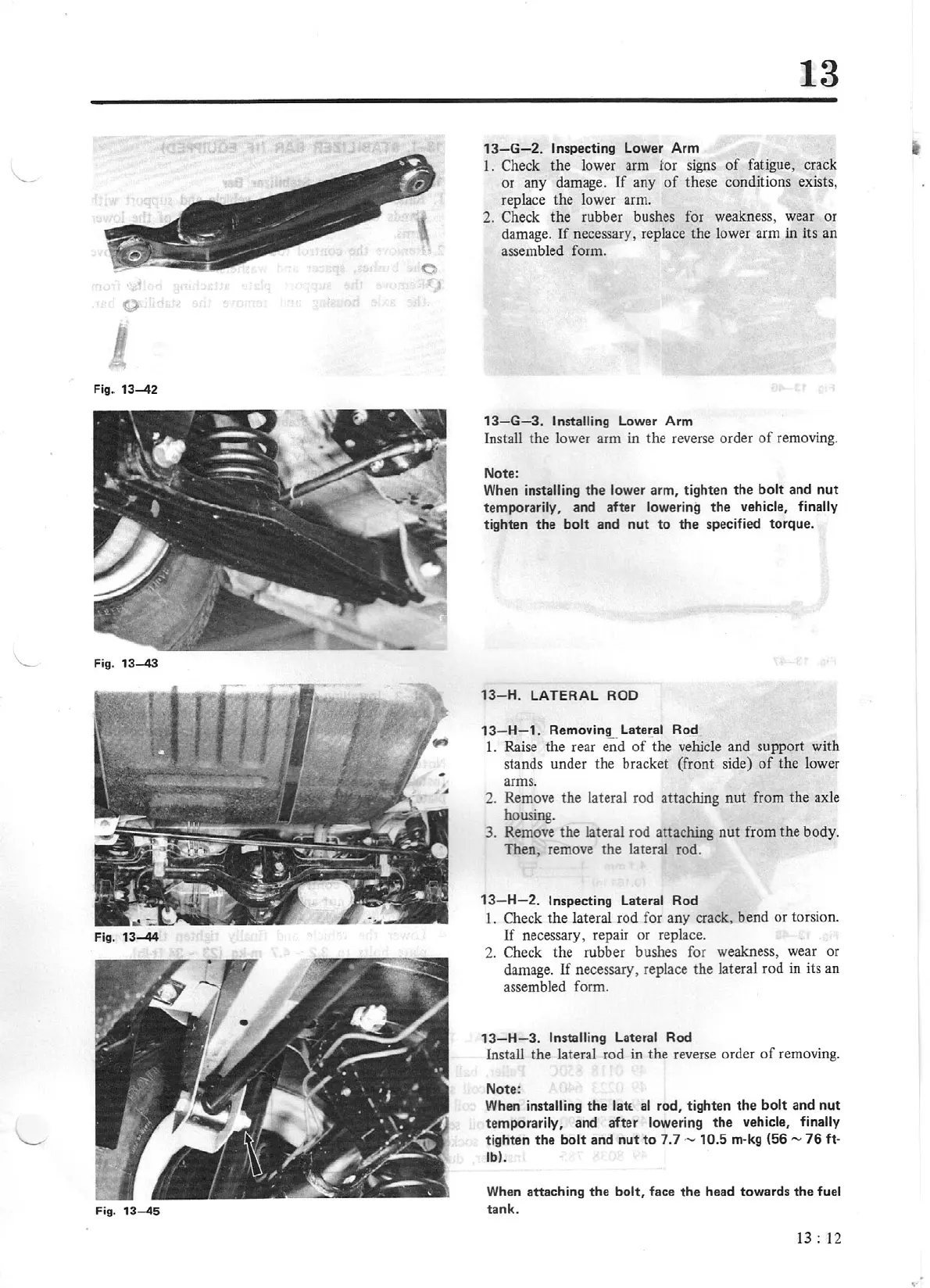

13-G-2.
Inspecting Lower Arm
1.
Check the lower arm for
signs
of
fatigue, crack
or any damage.
If
any
of
these conditions exists,
replace the lower arm.
2. Check the rubber bushes for weakness, wear or
damage.
If
necessary, replace the lower arm in its
an
assembled form.
13-G-3.
Installing Lower Arm
Install the lower arm in the reverse order
of
removing.
Note:
When installing
the
lower arm, tighten
the
bolt
and
nut
temporarily, and after lowering
the
vehicle, finally
tighten
the
bolt
and
nut
to
the
specified torque.
13-H.
LATERAL ROD
13
-
H-1.
Removing Lateral Rod
1.
Raise the rear end
of
the
vehicle and support with
stands under the bracket (front side)
of
the lower
arms.
2. Remove the lateral rod attaching
nut
from the axle
housing.
3. Remove
the
lateral rod attaching
nut
from the body.
Then, remove the lateral rod.
13-H-2
. Inspecting Lateral Rod
1.
Check the lateral rod for any crack, bend or torsion.
lf
necessary, repair or replace.
2. Check the rubber bushes for weakness, wear or
damage.
If
necessary, replace the lateral rod in its
an
assembled form.
13-H-3.
Installing Lateral Rod
Install the lateral rod in the reverse order
of
removing.
Note:
When installing
the
latl
al
rod, tighten
the
bolt
and
nut
temporarily, and after lowering
the
vehicle, finally
tighten
the
bolt
and
nut
to
7.7 ,
..,
10.5
m-kg (56 ~
76
ft
-
lb).
When attaching
the
bolt, face
the
head towards
the
fuel
tank.
13
;
12
