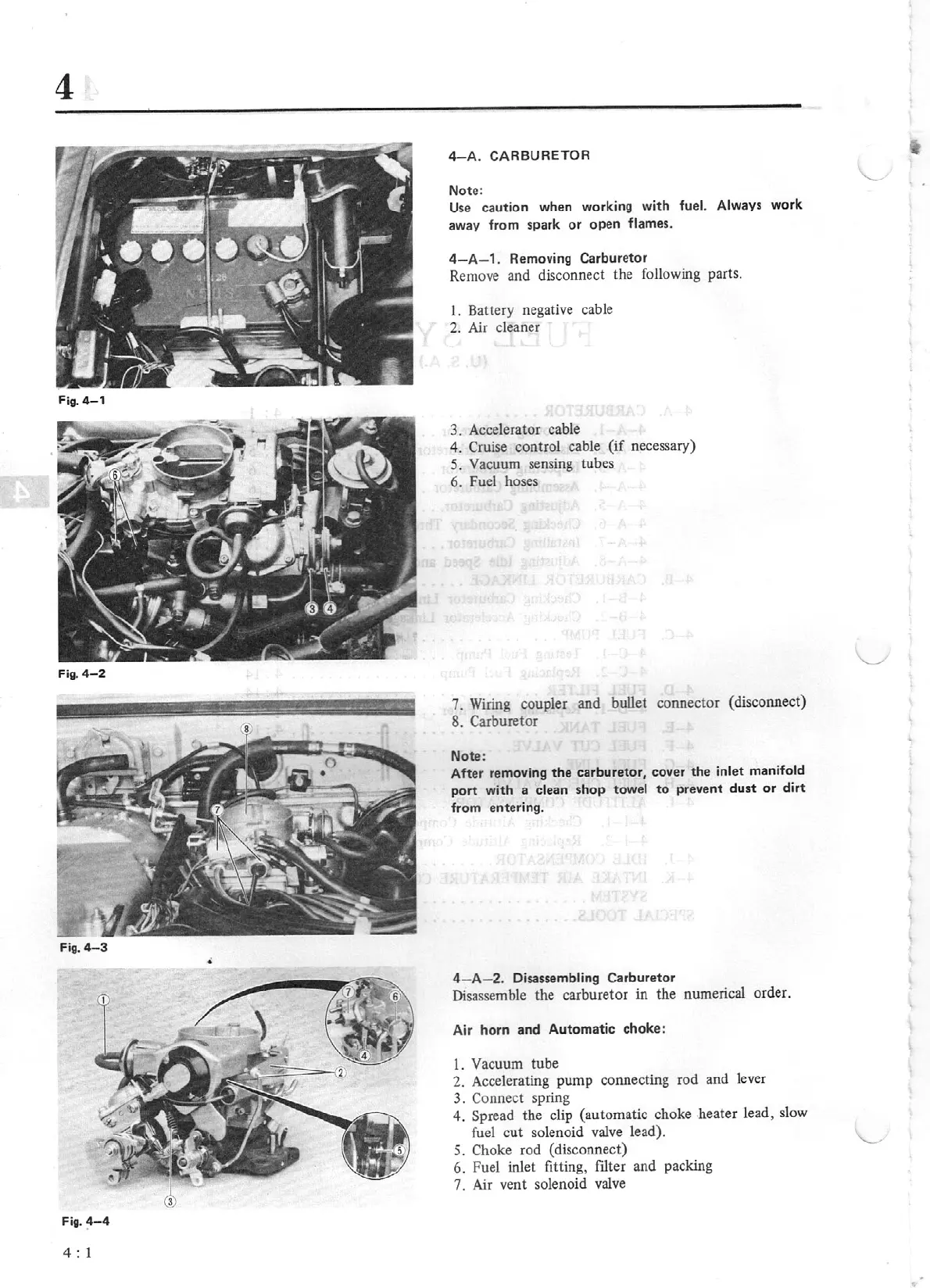

CARBURETOR
Note:
U
se
caution when working with
fuel. Always
work
away from
spark
or
open
flames.
4-A-1
. Removing Carbure
tor
Remove and disconnect the
fo
llowing parts.
I . Battery negative cable
2. Air cleaner
3. Accelerator cable
4.
Cruise control cable
(if
necessary)
5. Vacuum sensing tubes
6.
Fuel hoses
7.
Wiring coupler and bullet connector (disconnect)
8. Carburetor
Note:
After removing the carburetor, cover the
in
l
et
manifold
port
with a
clean
shop
towel
to
prevent du
st
or
dirt
from entering.
4- A- 2. Disassembling Carburetor
Disassemble the carburetor in the numerical order.
Air horn and Automatic choke:
1.
Vacuum tube
2.
Accelerating pump connecting rod and lever
3. Connect spring
4.
Spread the clip (automatic choke heater lead, slow
fuel
cut
solenoid
valve
lead).
5. Choke rod (disconnect)
6.
Fuel inlet fitting,
filter
and packing
7. Air vent solenoid
valve
