Fig.
4-19
Fig.4
-20
Flg.
4-
21
Fig. 4- 22
4

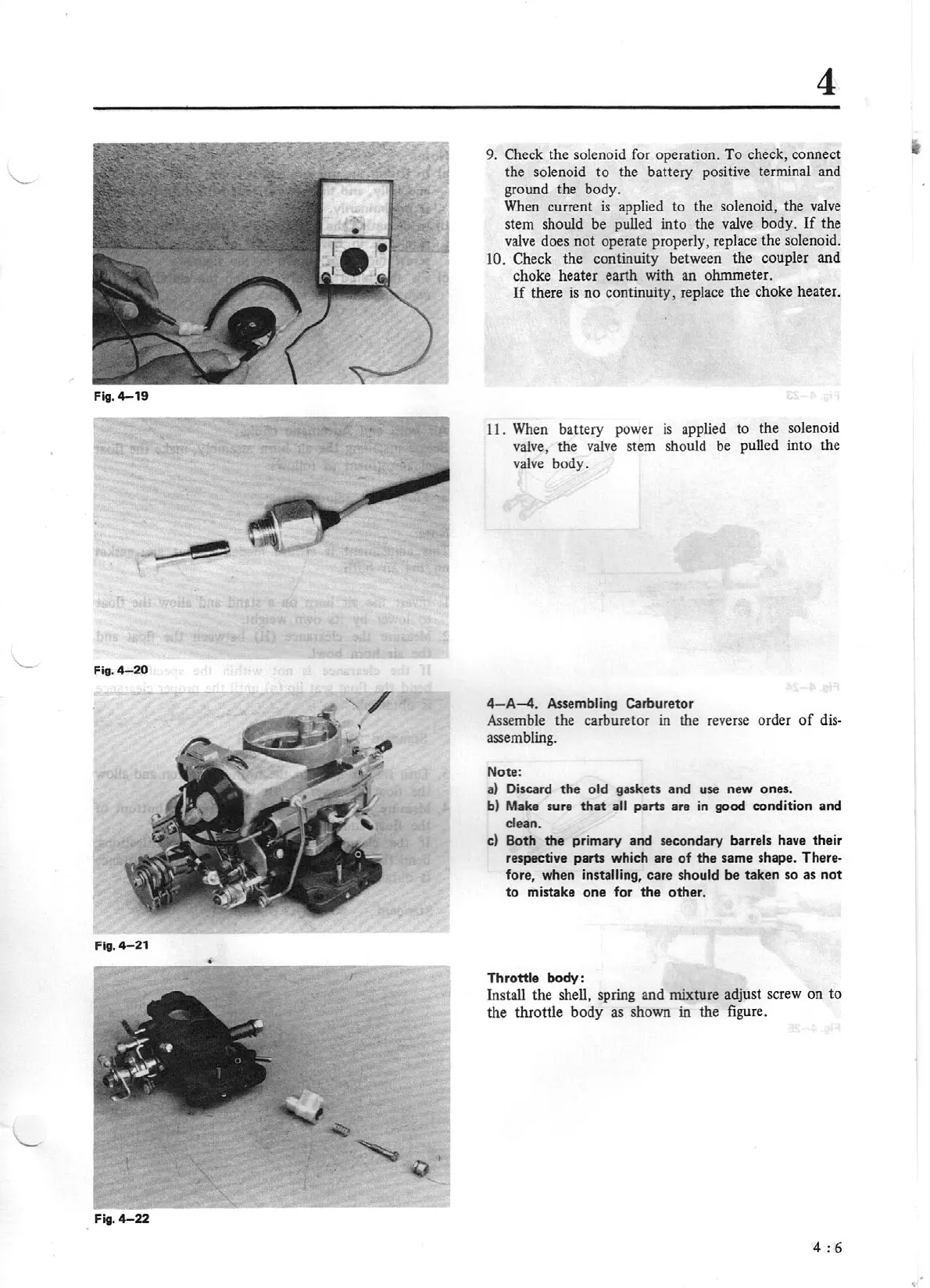

9. Check the solenoid for operation. To check, connect
the solenoid
to
the battery positive terminal and
ground the body.
When current
is
applied to the solenoid, the
valve
stem should
be
pulled into the
valve
body.
If
th
e
valve
does
not
operate properly, replace the solenoid.
10. Check the continuity between the coupler and
choke heater earth with an ohmmeter.
If
there
is
no
continuity, replace the choke heater.
11. When battery power
is
applied to the solenoid
valve, the
valve
stem should
be
pulled into the
valve
body.
4-A-4.
Assembling Carburetor
Assemble the carburetor in the reverse order
of
dis-
assembling.
Note:
a) Discard
the
old gaskets and use
new
ones.
b) Make sure
that
all parts are in good condition and
clean.
c) Both
the
primary
and
secondary barrels have
their
respective parts which are
of
the
same shape. There-
fore, when installing, care should
be
taken so
as
not
to
mistake
one
for
the
other
.
Throttle
body:
Install the shell, spring and mixture adjust screw
on
to
the t
hr
ottle body
as
shown in the
fig
ure.
4:6
•
•..
