4A-A
- 4.

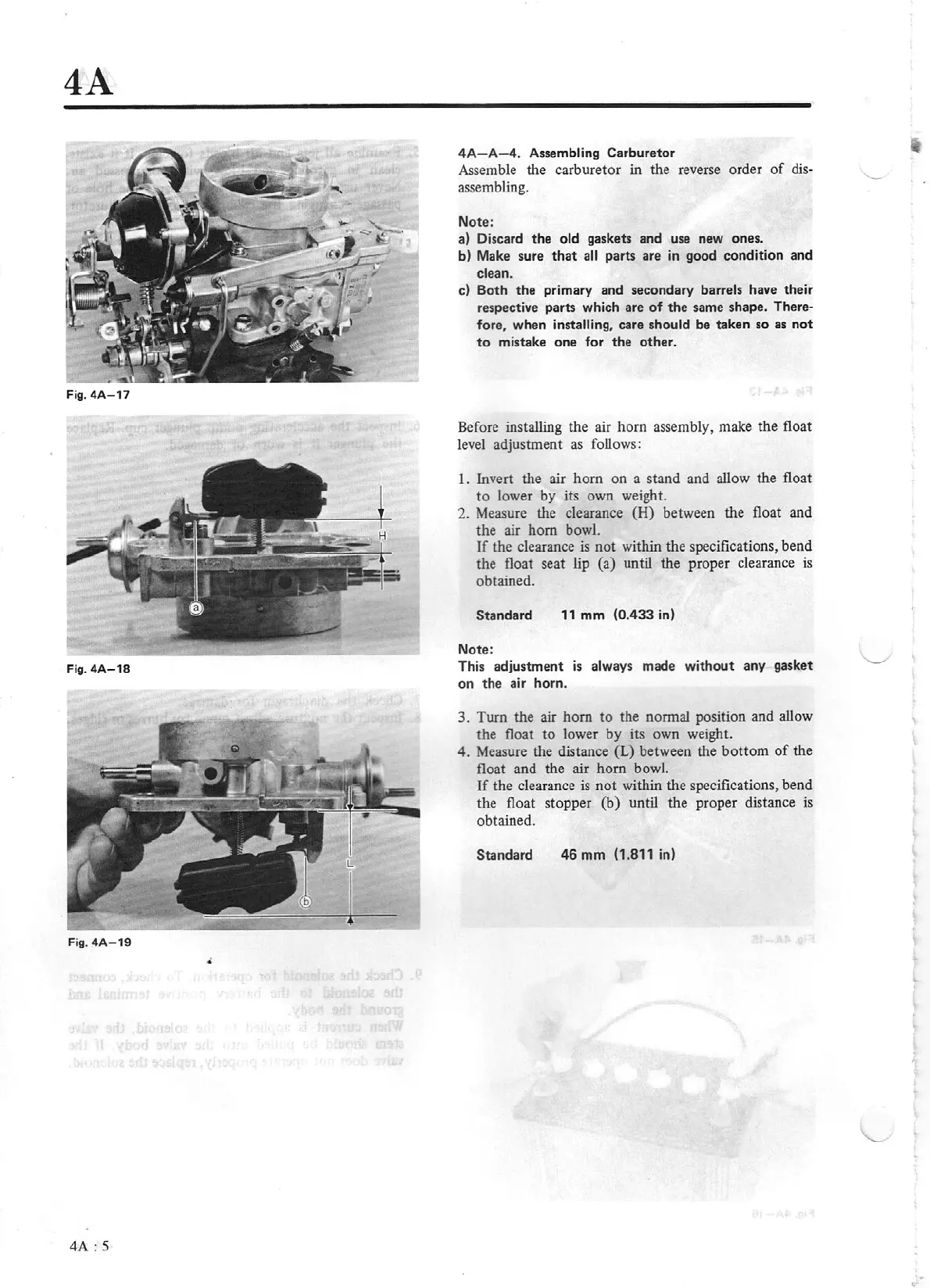

Assembling Carburetor
Assemble the carburetor in the reverse order
of
dis-
assembling.
Note:
a) Discard
the
old
gaskets and
use
new ones.
b) Make sure
that
all
parts are in good
condition
and
clean.
c)
Both
the
primary and secondary barrels have
their
respective parts which are
of
the
same shape.
There-
fore,
when
installing, care
should
be
taken
so
as
not
to
mistake
one
for
the
other.
Before installing the air horn assembly, make the float
level adjustment
as
follows:
l.
Invert the
air
horn on a stand and allow the float
to
lower by its own weight.
2. Measure the clearance (H) between the float and
the
air
horn bowl.
If
the clearance is
not
within the specifications, bend
the float seat lip (a) until the proper clearance
is
obtained.
Stan
dard
11
mm
(0.433
in)
Note:
This
adjustment
is
always made
without
any gasket
on
the
air
horn
.
3.
Tum
the
air
horn
to
the normal position and allow
the float
to
lower by its own weight.
4.
Measure the distance (L) between the
bottom
of
the
float and the air horn bowl.
If
the clearance
is
not
within the specifications, bend
the float stopper
(b)
until the proper distance
is
obtained.
Standard
46
mm
(1.811
in)
