Fig.
14
-3
7
Fig.
14-38
Fig.14-39
Fig.
14
-
40
14

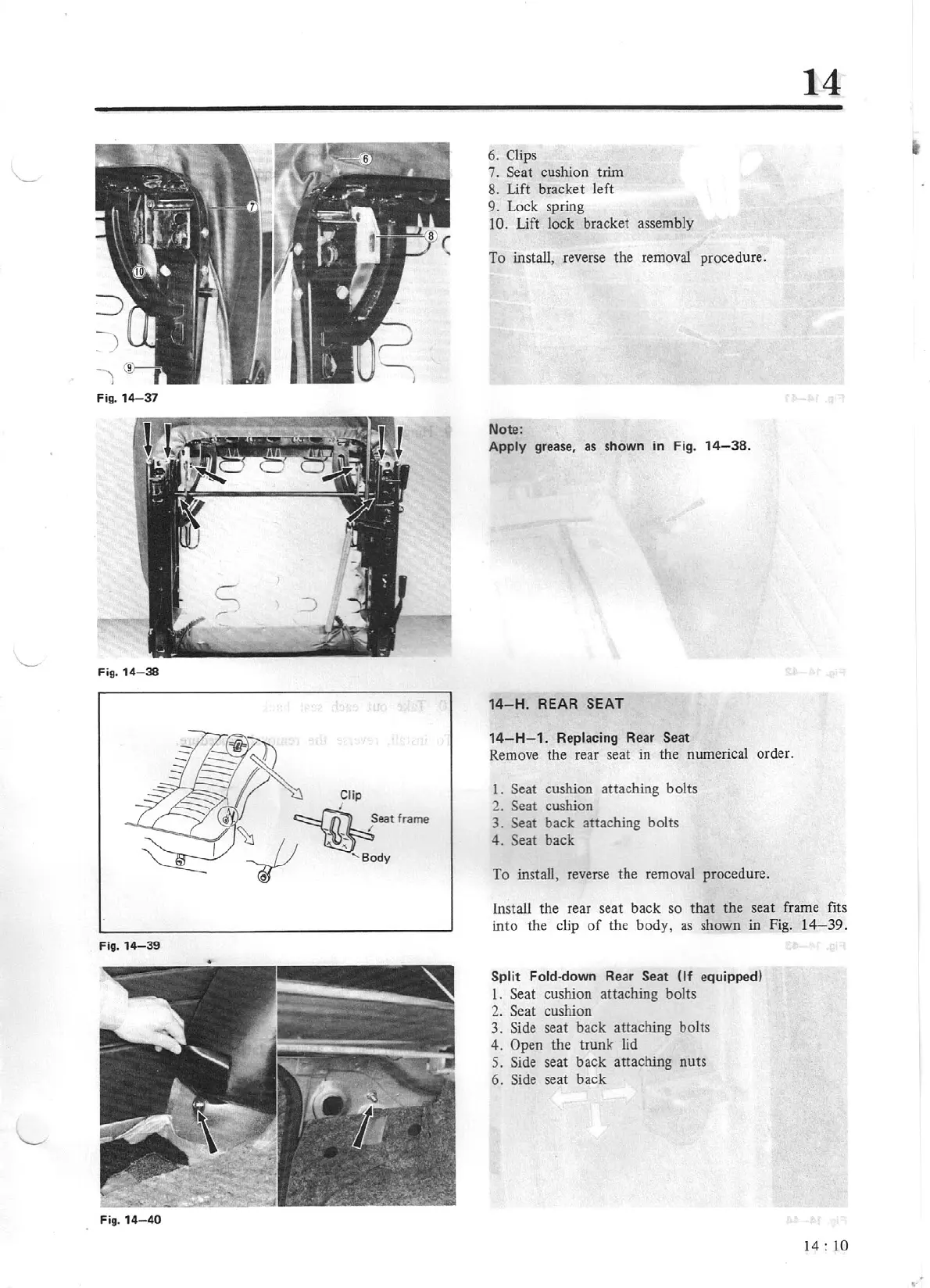

6. Clips
7.
Seat cushion
trim
8.
Lift bracket left
9.
Lock spring
10.
Lift lock bracket assembly
To install, reverse the removal procedure.
Note:
Apply
grease,
as
shown
in
Fig.
14-38.
14- H. REAR
SEAT
14-H-1.
Replacing
Rear
Seat
Remove the rear seat
in
the numerical order.
1. Seat
cushion attaching bolts
2.
Seat
cushion
3. Seat back attaching bolts
4.
Seat
back
To install,
reverse the removal procedure.
Install the rear seat back so that the seat frame fits
into the
clip
of
the body,
as
shown in Fig. 14- 39.
Split
Fold-down Rear
Seat
(If
equipped)
1.
Seat
cushion attaching bolts
2.
Seat
cushion
3.
Side
seat back attaching bolts
4.
Open
the trunk lid
5.
Side
seat back attaching nuts
6.
Side
seat back
14:
10
