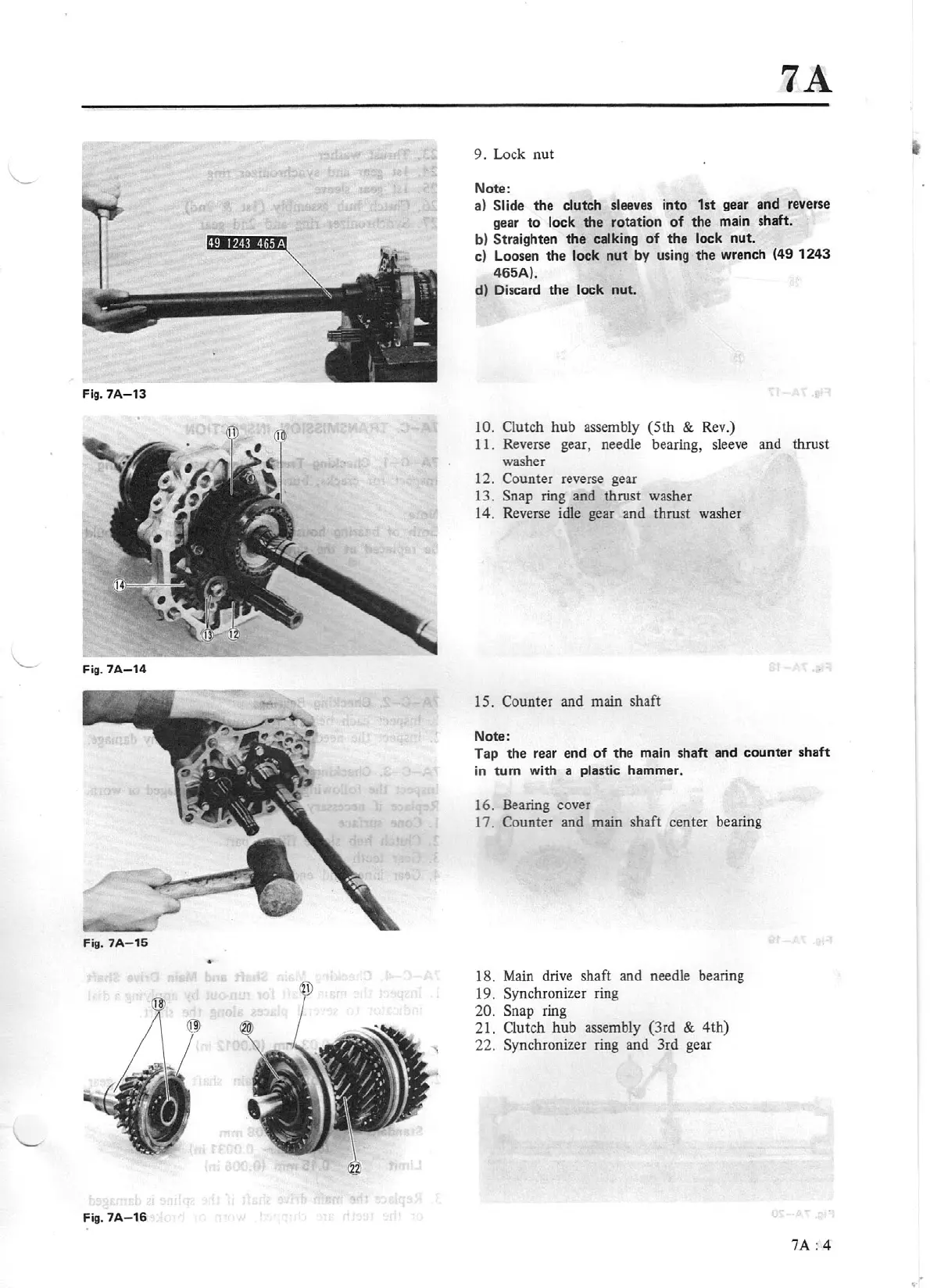

Mazda 626 1981 - 7 A-04

Fig.
7A-13
Fig.
7A-14
Fig.
7A
-
16
•
Fig.
7A
-
16
7A
9.
Lock
nut
Note:
a)
Slide
the clutch
sleeves
into 1st gear and reverse
gear
to
lock
the rotation
of
the main shaft.
b)
St
raighten the
calki
ng
of
the
lock
nut.
cl Loosen the lock
nut
by
using the wrench (49 1243
465A).
d) D
is
card the lock nut.
10. Clutch
hub
assembly
(5th
&
Rev.)
11. Reverse gear, needle bearing, sleeve and thrust
washer
12. Counter
reverse gear
13.
Snap
ring and thrust washer
14
.
Reverse idle gear and thrust washer
15.
Counter
and main shaft
Note:
Tap the rear end
of
the main shaft and counter shaft
in turn with a
plastic
hammer.
16. Bearing cover
17.
Counter
and main shaft center bearing
18. Main drive shaft and needle bearing
19. Synchronizer ring
20. Snap
ring
21.
Clutch
hub
assembly (3rd
&
4th)
22. Synchronizer ring and 3rd gear
7A:
4
