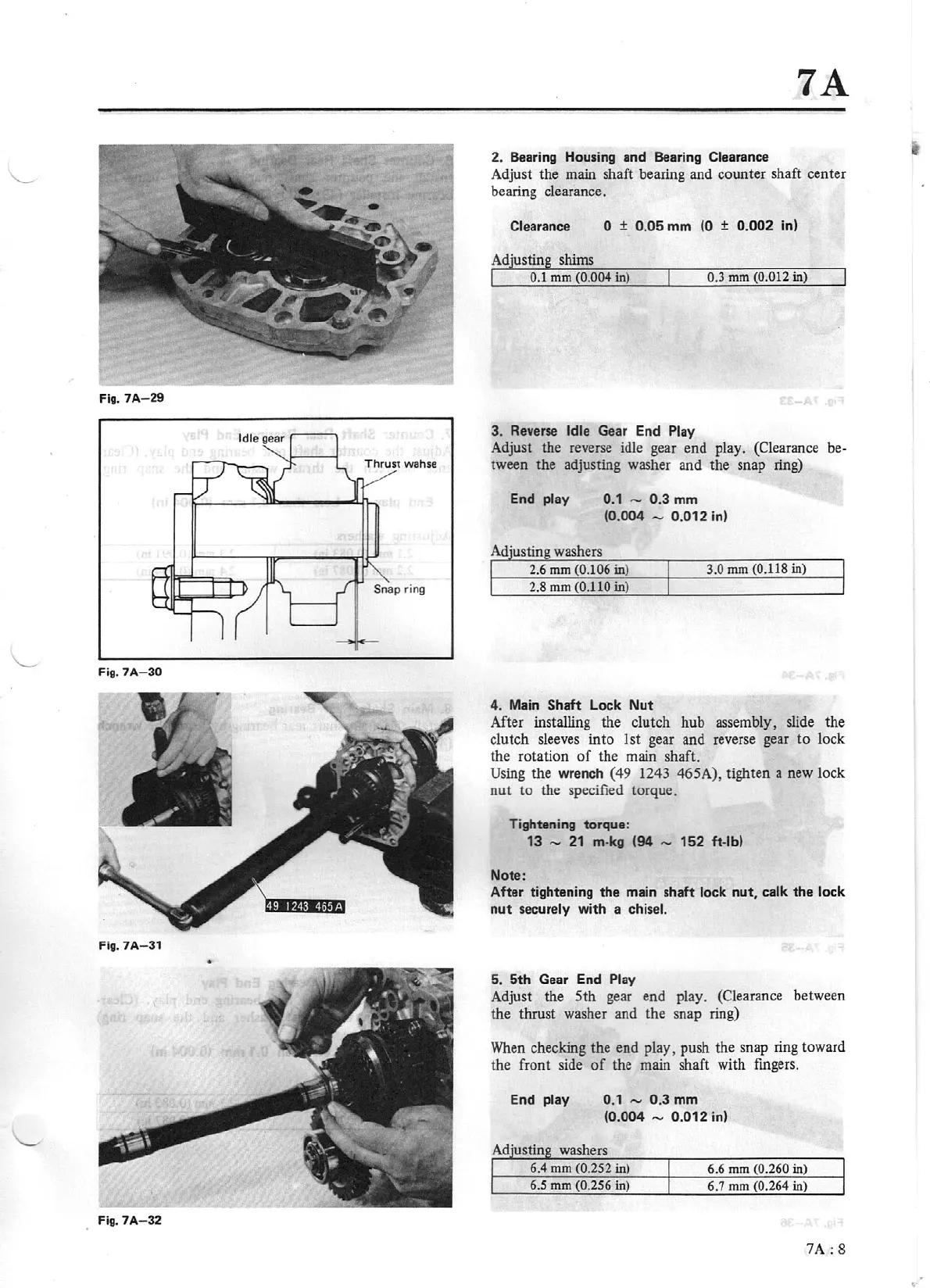

Fig.
7A-29
Fig.
7A-30
Fig.
7A-31
•
Fig.
7A-32
7A
2. Bearing Housing and Bearing Clearance
Adjust the main shaft bearing and counter shaft center
bearing clearance.
Clearance
O ± 0.05 mm (0 ± 0.002
In)
Adjusting shims
I 0.1
mm
(0.004
in)
0.3
mm
(0.012
in)
3. Reverse Idle Gear End Play
Adjust the reverse idle gear end play. (Clearance be-
tween the adjusting washer and the snap ring)
End play
0.1 - 0.3
mm
(0.004 - 0.012 in)
Ad'ustin washers
2.6
mm
(0.106
in)
3.0
mm
(0.118
in)
2.8
mm
(0.110
in)
4. Main
Shaft
Lock
Nut
After installing the clutch hub assembly, slide the
clutch sleeves into 1st gear and reverse gear
to
lock
the rotation
of
the main shaft.
Using the
wrench (49 1243 465A), tighten a new lock
nut
to
the specified torque.
Tightening
torque:
13 -
21
m-kg (94 -
152
ft-lb)
Note:
After
tightening
the
main shaft lock
nut,
calk
the
lock
nut
securely with a chisel.
5.
5th
Gear End Play
Adjust the 5th gear end play. (Clearance between
the thrust washer and the snap ring)
When checking the end play, push the snap ring toward
the front side
of
the main shaft with fingers.
End play 0.1
,...,
0.3 mm
(0.004 - 0.012 in)
Ad ·ustin washers
6.4
mm
(0.252
in)
6.6
mm
(0.260
in)
6.5
mm
(0.256
in)
6.7
mm
(0.264
in)
7A:
8
•
