Fig.
14-61
Fig
.14-62
Flg.
14-63
•
14
mm
(0.55
in)
Retainer
Fig.14-64
14
14-L
.

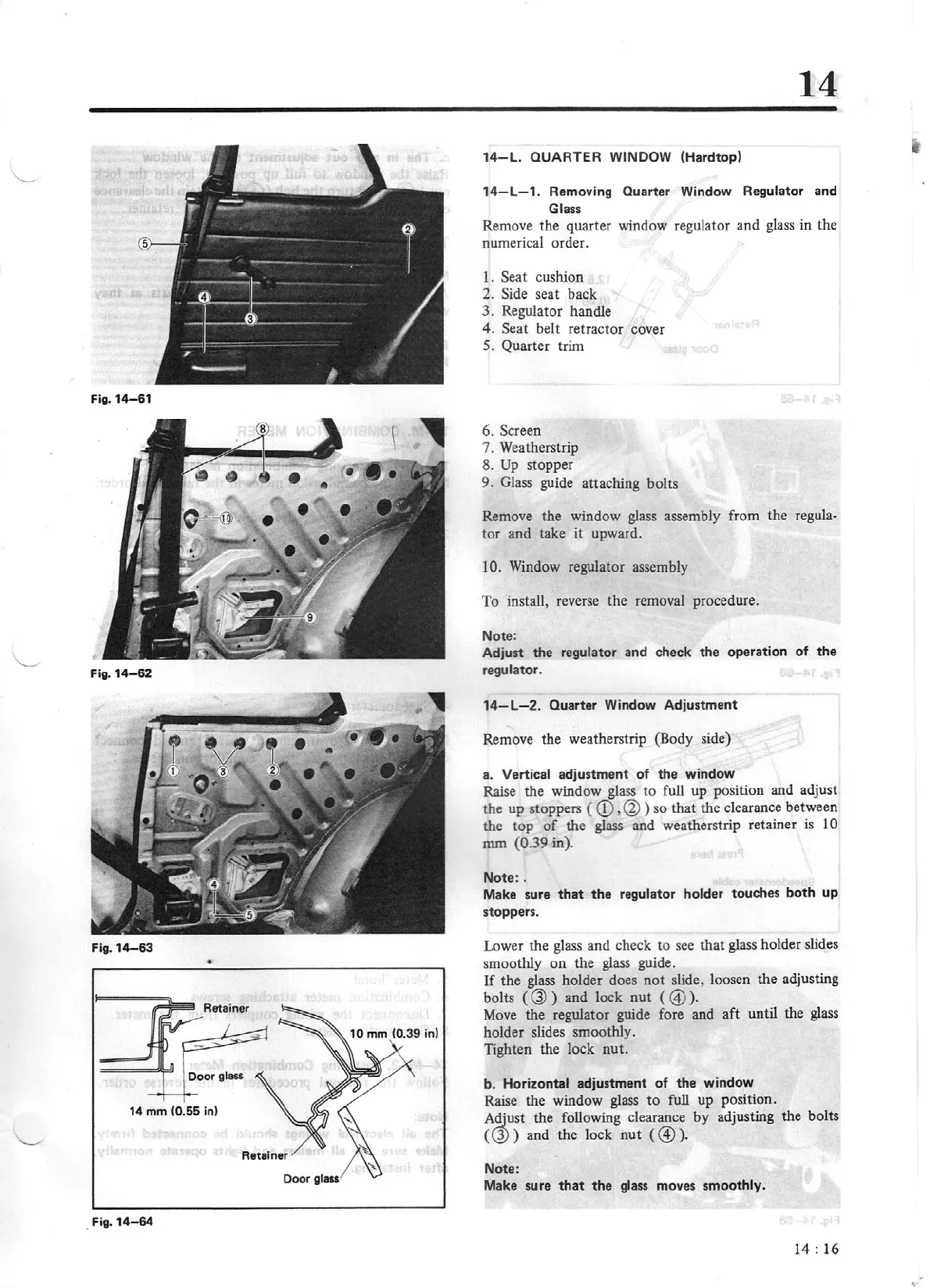

QUARTER
WINDOW
(Hardtop)
14-L-1.
Removing Quarter Window
Regulator
and
Glass
Remove the quarter window regulator and glass in lhe
numerical order.
1.
Seat
cushion
2. Side seat back
3. Regulator handle
4.
Seat
belt retractor cover
5.
Quarter trim
6.
Screen
7. Weatherstrip
8.
Up
stopper
9.
Glass
guide attaching bolts
Remove the window glass assembly from the
regula-
tor and take
it
upward.
10.
Window regulator assembly
To install, reverse the removal procedure.
Note:
Adjust
the
regulator
and check
the
operation
of
the
regulator.
14-L
- 2. Quarter Window Adjustment
Remove the weatherstrip (Body side)
a.
Vertical adjustment
of
the
window
Raise the window glass
to
full
up
position and adjust
the up stoppers (
<D,
<l))
so that the clearance between
the top
of
the glass and weatherstrip retainer
is
I
0
mm
(0.39
in).
Note:.
Make sure
that
the
regulator holder touches
both
up
stoppers.
Lower the glass and check to see
that
glass holder slides
smoothly
on
the
glass
guide .
If
the
glass holder does
not
slide, loosen the adjusting
bo
lts
(CJ)
)
and lock
nut
(
@
).
Move
the regula
tor
guide fore and
aft
until the glass
holder slides smoothly.
Tighten the lock nut.
b.
Horizontal adjustment
of
the
window
Raise the window glass
to
full
up
position.
A;!J_ust
the following clearance
by
adjusting the bolts
(@)
and the lock
nut
(@)
.
Note:
Make sure
that
the
glass
moves
smoot
hly.
14:
16
