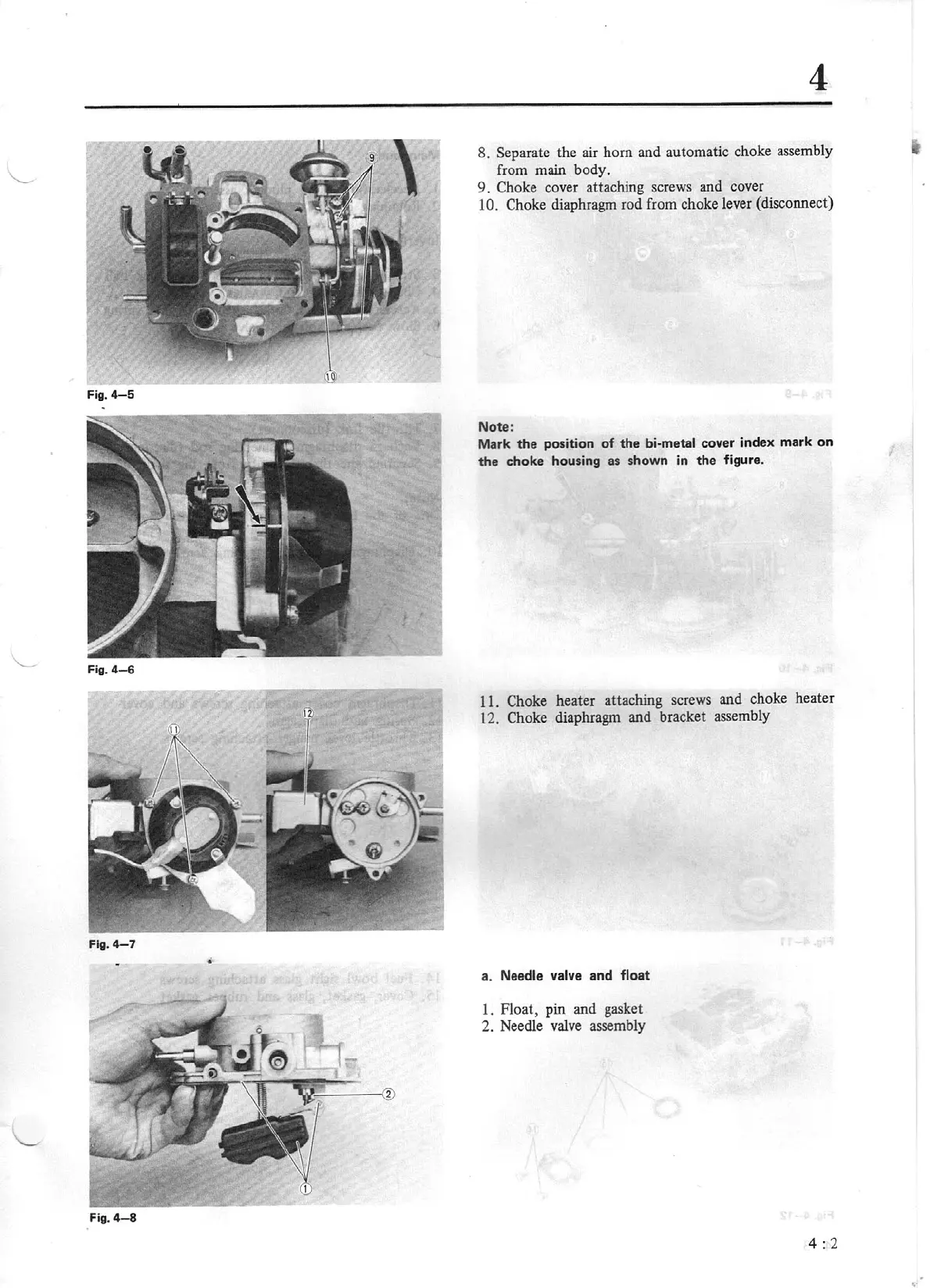

8. Separate the air horn and automatic choke assembly
from main body.
9.
Choke cover attaching screws and cover
10.
Choke diaphragm rod from choke lever (disconne
ct
)
Note:
Mark
the
position
of
the
bi-metal cover index mark
on
the
choke housing as shown in
the
figure.
11. Choke heater attaching screws and choke heater
1
2.
Choke diaphragm and bracket assembly
a. Needle
valve
and float
1.
Float, pin and gasket
2. Needle valve assembly
4:
