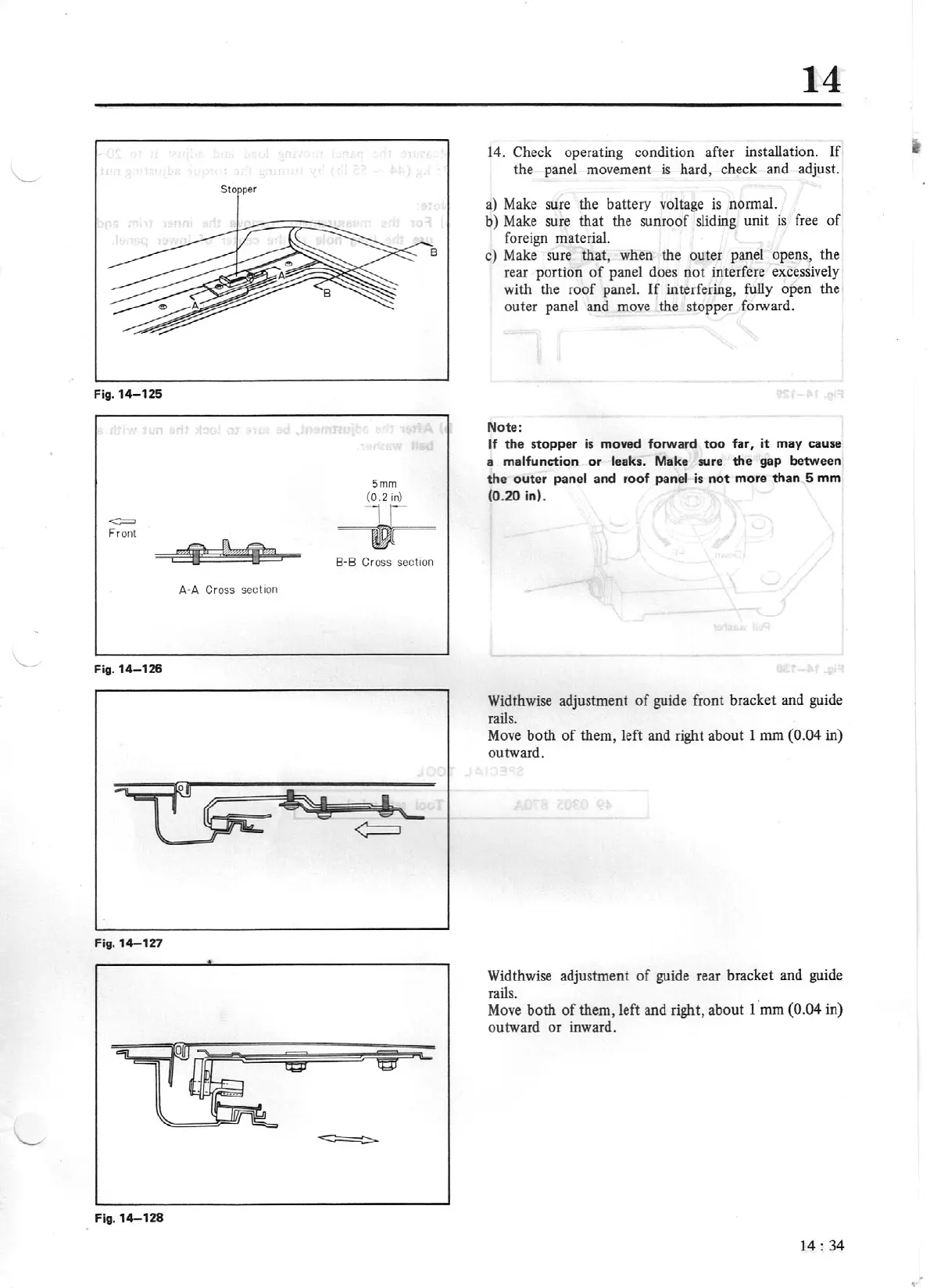

Fig.
14-125
<:::=
Front
Fig.
14-126
Fig.
14-127
Fig.
14-128
Stopper
A·A
Cr
oss section
Smm
(
0.2
in)
-
-
~
8-8
Cr
oss section
=
14
14. Check operating condition after installation. 1f
the panel movement
is
hard, check and adjust.
a) Make sure the battery voltage
is
normal.
b) Make sure that the sunroof sliding
unit
is
free
of
foreign material.
c) Make sure that, when the outer panel opens,
the
rear portion
of
panel does
not
interfere excessively
with
the
roof
panel.
If
interfering, fully open
the
outer
panel and move
the
stopper forward.
Note:
If
the stopper
is
moved forward
too
far, it may cause
a malfunction
or
leaks. Make sure
the
gap between
the
outer panel and roof panel
is
not
more
than
5 mm
(0.20 in).
Widthwise adjustment
of
guide front bracket and guide
rails.
Move
both
of
them, left and right about 1
mm
(0.04 in)
outward.
Widthwise adjustment
of
guide rear bracket and guide
rails.
Move
both
of
them, left and right, abo
ut
1 '
mm
(0.04 in)
outward
or
inward.
14:
34
,.
