Mazda 626 1981 - 05-13

5
Fig.
5-45
Fig.
5-46
Fig.
5-
47
•
Fig:
5-48
5 :
13

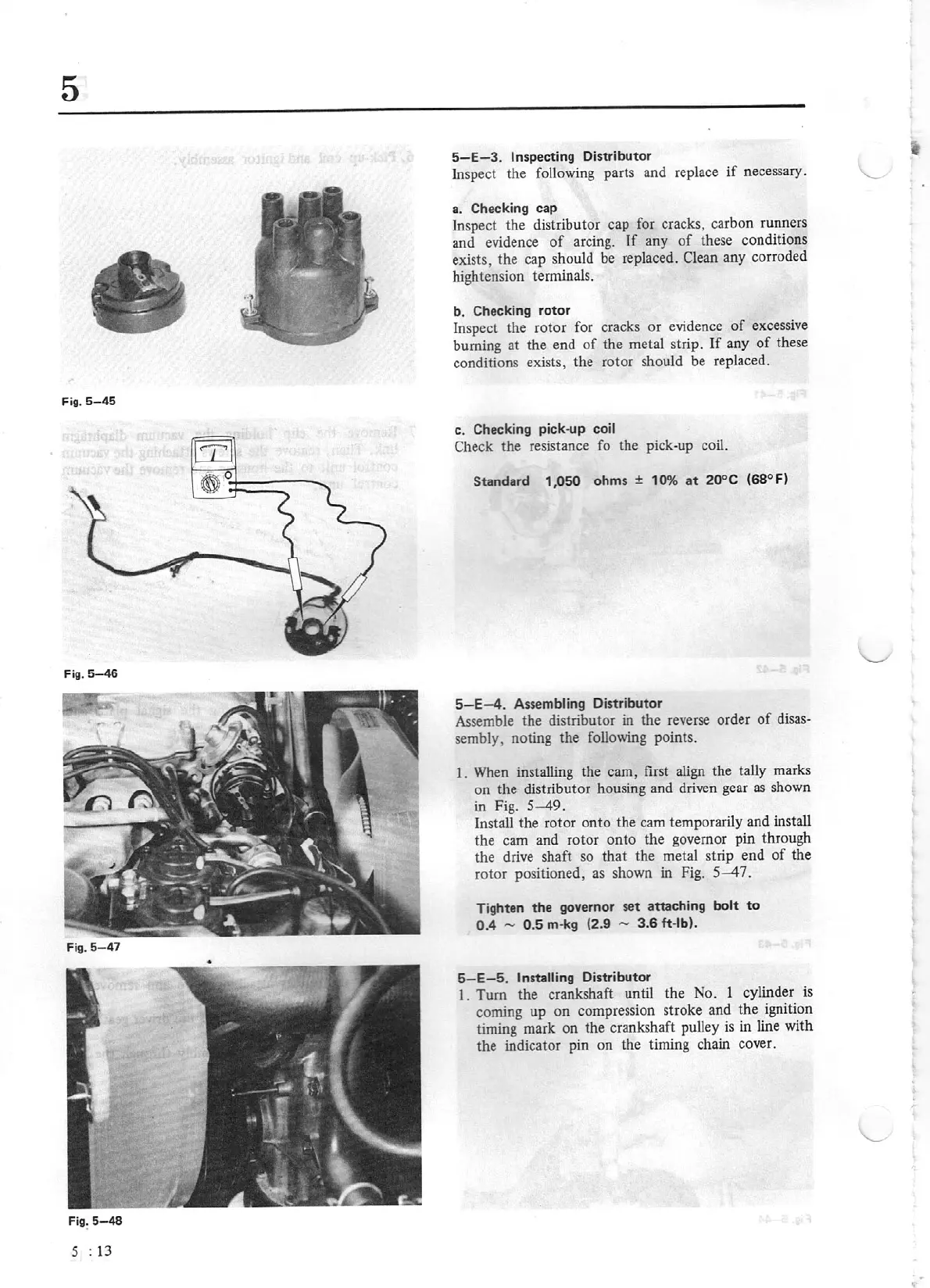

5-E-3
.
Inspecting
Distributor
Inspect
the
following parts and replace
if
necessary.
a. Checking cap
Inspect
the
distributor cap for cracks, carbon runners
and evidence
of
arcing.
If
any
of
these conditions
exists, the cap should be replaced.
Clean any corroded
hightension terminals.
b. Checking
rotor
Inspect
the
rotor
for cracks
or
evidence of excessive
burning
at
the end
of
the
metal strip.
If
any
of
these
conditions exists, the
rotor
should be replaced.
c. Checking pick-up
coil
Check the resistance
fo
the pick-up coil.
Standard
1,
050
ohms
±
10%
at
20
°C
(68°
F)
5- E
-4.
Assembling
Distributor
Assemble
the distributor in
the
reverse order
of
disas-
sembly, noting
the
following points.
l.
When installing the cam, first align
the
tally marks
on
the
distributor housing and driven gear
as
shown
in Fig.
5-49.
Install
the
rotor
onto
the cam temporarily a
nd
install
the
ca
m and
rotor
onto
the governor pin through
the drive shaft
so
that
the
metal
strip
end
of
the
roto
r positioned, as shown in Fig.
5-47.
Tighten
the
governor set attaching bolt
to
0.4
- 0.5 m-kg
(2.9
-
3.6
ft-lb).
5- E- 5.
Installing
Distributor
1.
Turn
the
crankshaft until the No. 1 cylinder is
coming up on compression
stro
ke and
the
ignition
timing mark
on
the
crankshaft pulley
is
in line with
the
indicator pin on the timing chain cover.
