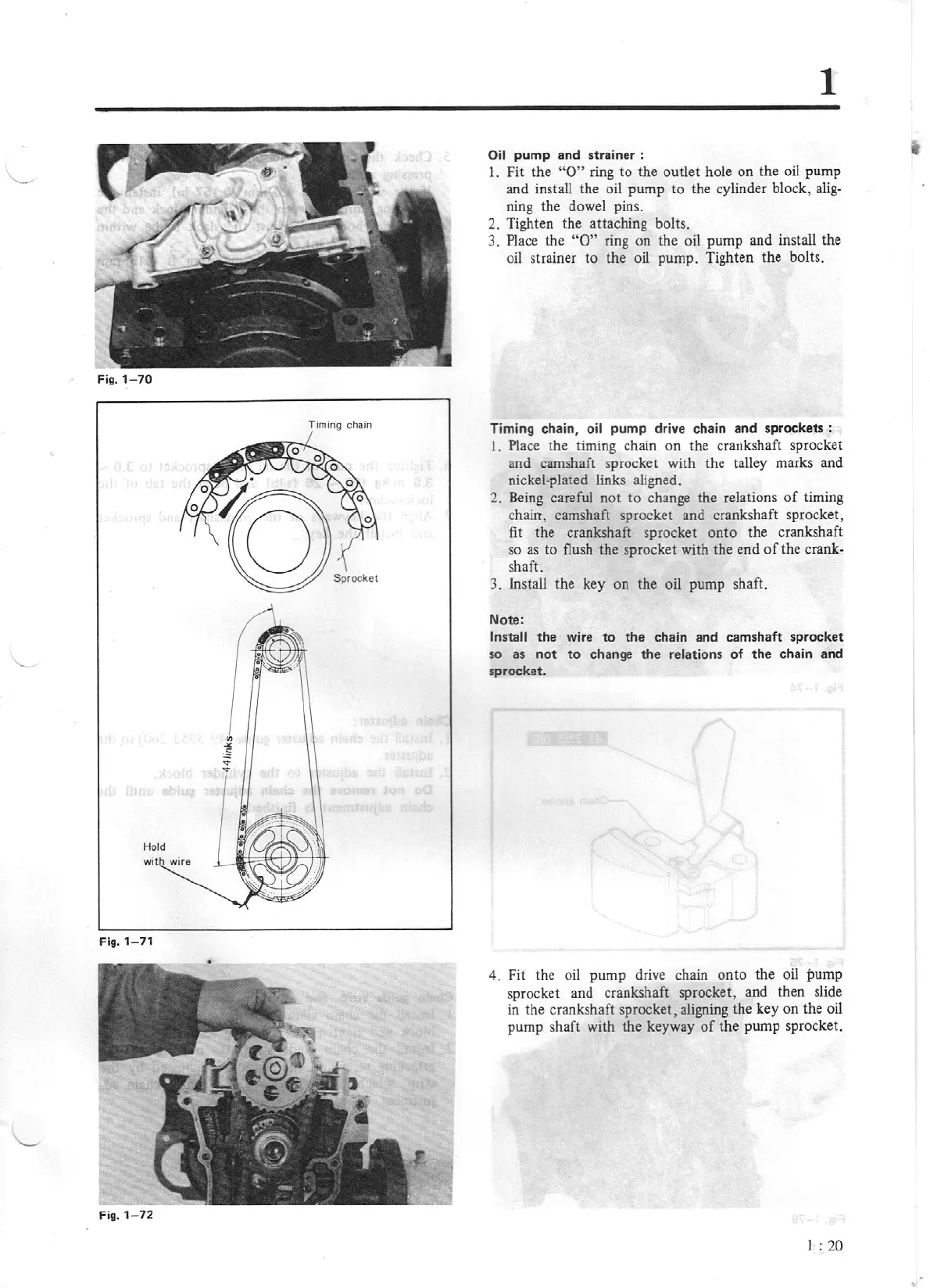

Fig.
1-70
T iming chain
Fig.
1-71
Fig. 1-
72
t
Oil
pump and strainer :
1.
Fit the
"O"
ring
to
the outlet hole
on
the oil pump
and install the oil pump to the cylinder block,
alig-
ning the dowel pins.
2. Tighten the attaching bolts.
3. Place the
"O"
ring
on
the oil pump and install the
oil strainer to the oil pump. Tighten the bolts.
Timing chain, oil pump drive chain and sprockets :
1.
Place the t
im
ing chain on the crankshaft sprocket
and camshaft sprocket with the talley marks and
nickel
-p
lated links aligned.
2. Being careful
not
to
change the relations
of
timing
chain, camshaft sprocket and crankshaft sprocket,
fit the crankshaft sprocket onto the crankshaft
so as to flush the sprocket with the end
of
the crank-
shaft.
3. Install the key on the oil pump shaft.
Note:
Install
the
wire
to
the
chain and camshaft sprocket
so
as
not
to
change
the
relations
of
the
chain and
sprocket.
4. Fit the oil pump drive chain
onto
the oil pump
sprocket and crankshaft sprocket, and then slide
in the crankshaft sprocket, aligning the key on the oil
pump shaft with the keyway
of
the pump sprocket.
I:
20
