Fig.
10A-40
Fig. 10A- 41
ir
l
I
Fig.10A-42
Fig.10A
-
43

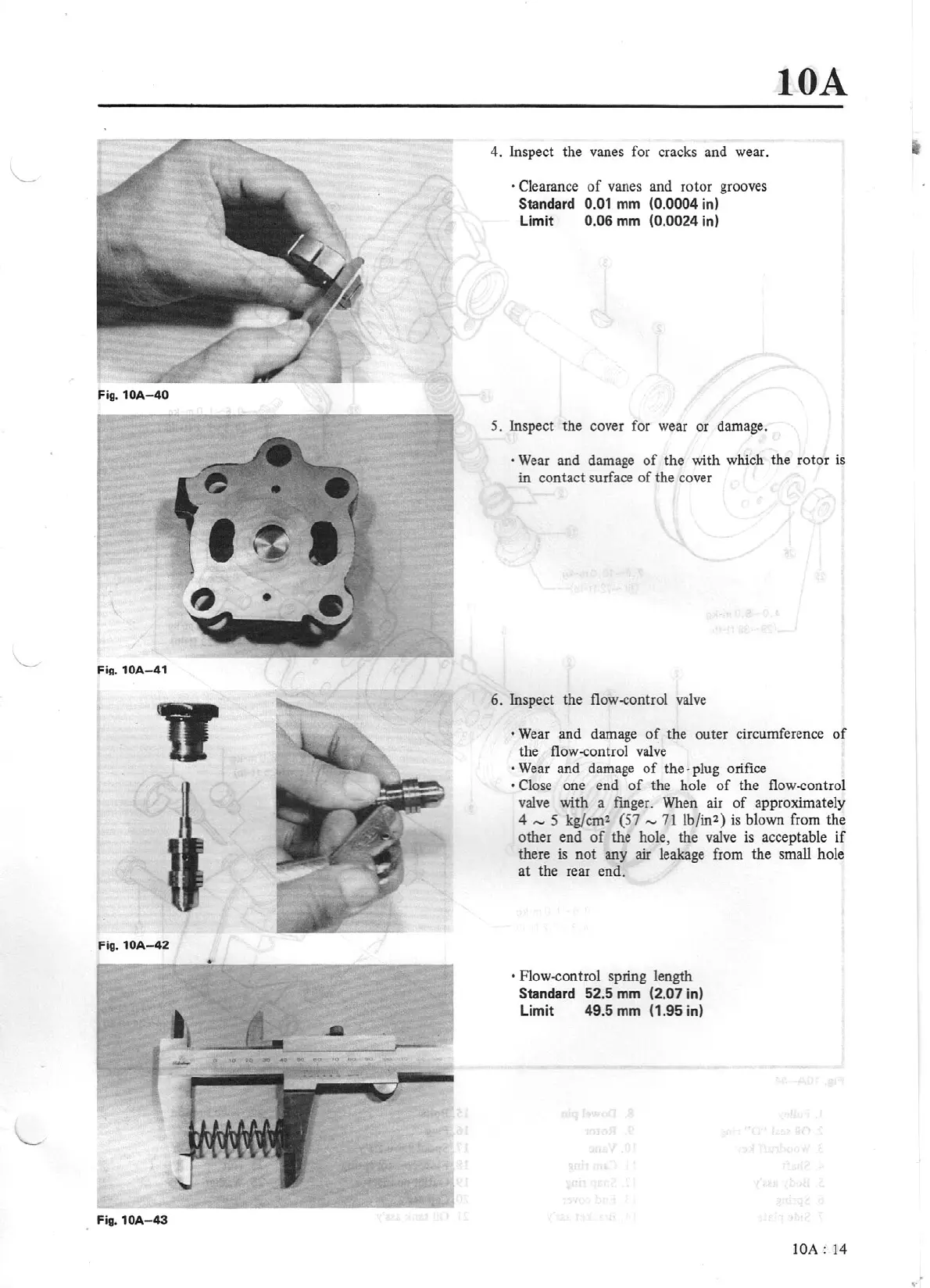

4. Inspect the vanes for cracks and wear.
·Clearance
of
vanes and
rotor
grooves
Standard
0.
01
mm
(0.0004 in)
Limit 0.
06
mm
(0.0024
in)
5.
Inspect
the
cover for wear
or
damage.
lOA
• Wear and damage
of
the
with which
the
rotor
is
in
contact
surface
of
the
cover
6.
Inspect
the
flow-control valve
•Wear and damage
of
the
outer circumference
of
the
flow-control valve
• Wear and damage
of
the
· plug orifice
• Close
one
end
of
the hole
of
the
flow-control
valve
with
a finger. When air
of
approximately
4
,..,
S
kg/cm2
(57,.., 71 lb/in2)
is
blown from
the
other
end
of
the
hole,
the
valve
is
acceptable
if
there
is
not
any air leakage from
the
small hole
at
the rear end.
• Flow-control spring length
Standard
52.5
mm
(2.07 in)
Limit
49.5
mm
(1
.95 in)
lOA:
14
,.
