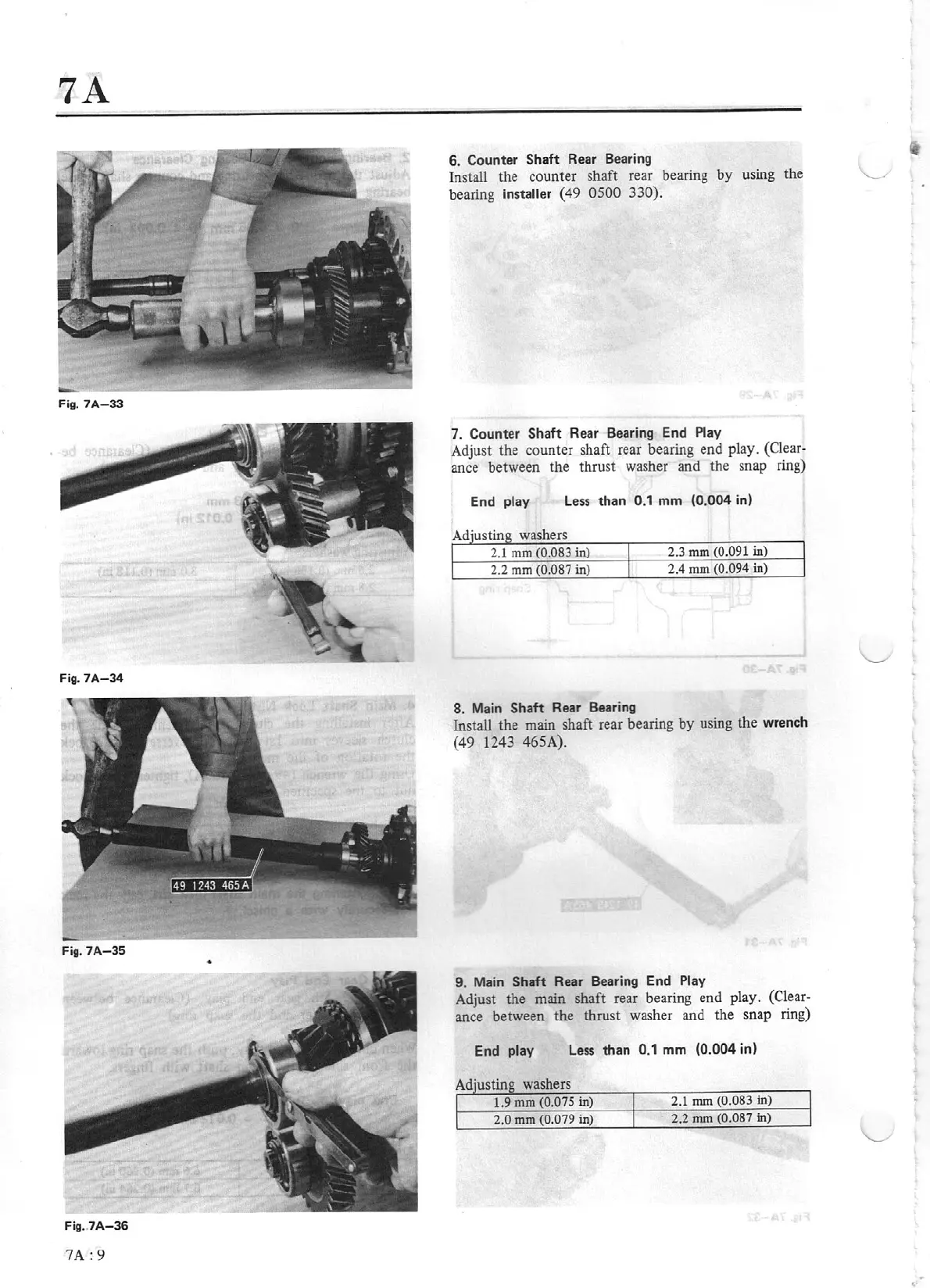

6. Counter
Shaft
Rear Bearing
Install the counter shaft rear bearing by using the
\_..
bearing installer
(49
0500 330).
7. Counter
Shaft
Rear Bearing End
Play
Adju
st
the counter shaft rear bearing end play.
(Clear-
ance between the thrust washer and the snap ring)
End
play
les
s
than
0.1
mm
(0.004
in)
Ad"ustin washers
2.1
mm
(0.083
in)
2.3
mm
(0.091
in)
2.2
mm
(0.087
in)
2.4
mm
(0.094
in)
8.
Main
Shaft
Rear Bearing
Install the main shaft rear bearing
by
using the wrench
(49 1243 465A).
9.
Main
Shaft
Rear Bearing End
Play
Adjust the main shaft rear bearing end play. {Clear-
ance between the thrust washer and the snap ring)
End
play
Less than
0.1
mm
(0.004
in)
Ad"ustin washers
1.9
mm
(0.Q75
in)
2.1
mm
(0.083
in)
2.0
mm
(0.079
in)
2.2
mm
(0.087
in)
