4A :
11
4A- D- 2.

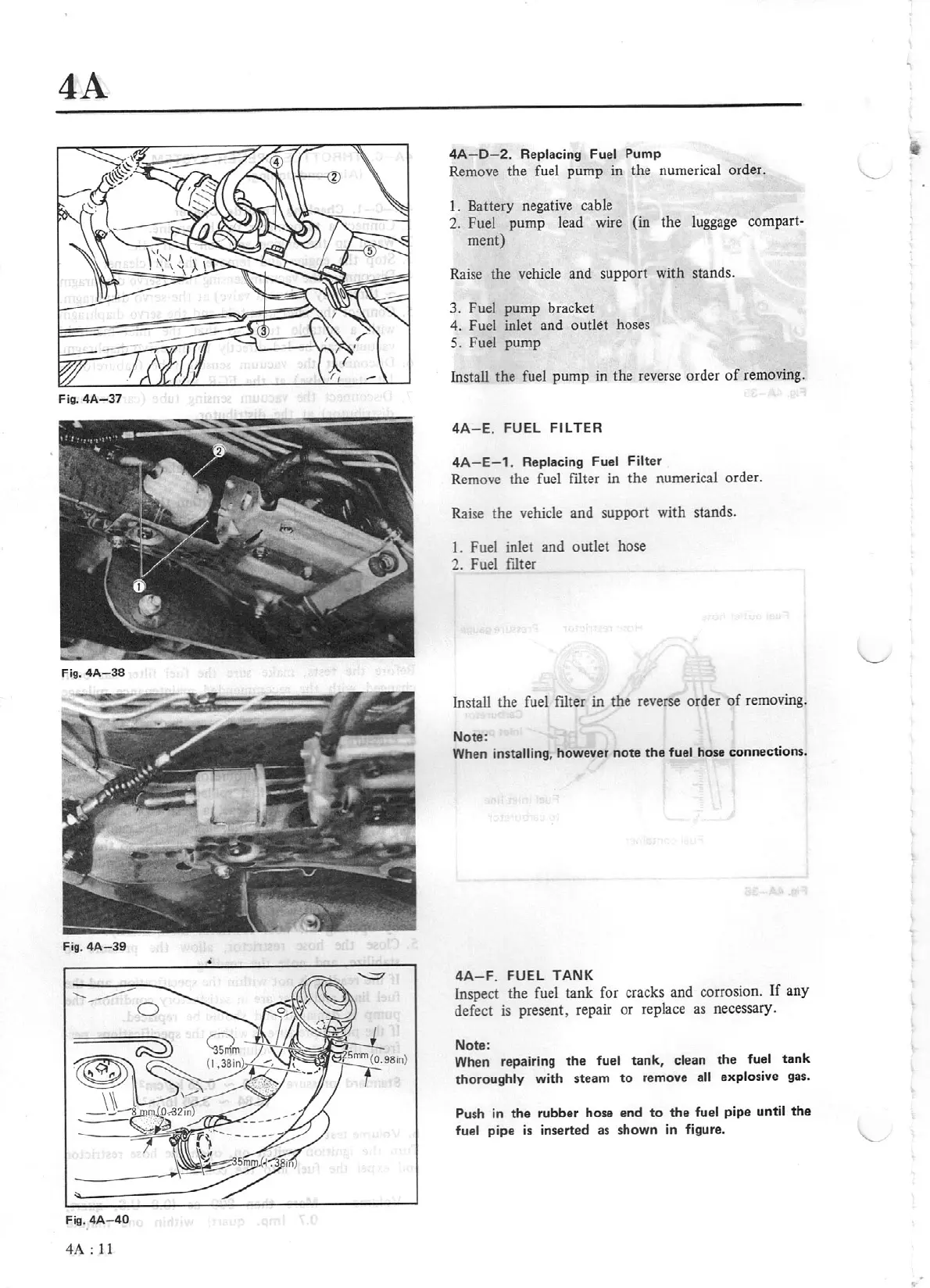

Replacing Fuel
Pump
Remove the fuel pump in the numerical order.
1. Battery negative cable
2. Fuel pump lead wire (in
th
e lug
ga
ge
compart·
ment)
Raise the vehicle and support wi
th
stands.
3. Fuel pump bracket
4. Fuel inlet a
nd
outlet
hoses
5. Fuel pump
Install the fuel pump in the rever
se
order of removing.
4
A-
E.
FUEL
FILTER
4A- E- 1. Replacing Fuel Filter
Remove the fuel filter in the numerical order.
Raise the vehicle and support with stands.
1. Fuel inlet and outlet hose
2.
Fuel filter
Install
the fuel filter in the reverse order
of
removing.
Note:
Wh
en
installing,
however note
the
fuel hose connections.
4
A-
F. FUEL
TANK
Inspect the fuel tank for cracks and corrosion.
If
any
defect
is
present, repair or replace as necessary.
Not
e:
Wh
en
repairing
the
fuel
tank
, clean
the
fuel
tank
tho
roughly with steam
to
remove
all explosive
gas.
Push in
the
rubber
hosa
end
to
the
fuel
pipe until
the
fuel pipe
is
inserted
as
shown
in
figure.
