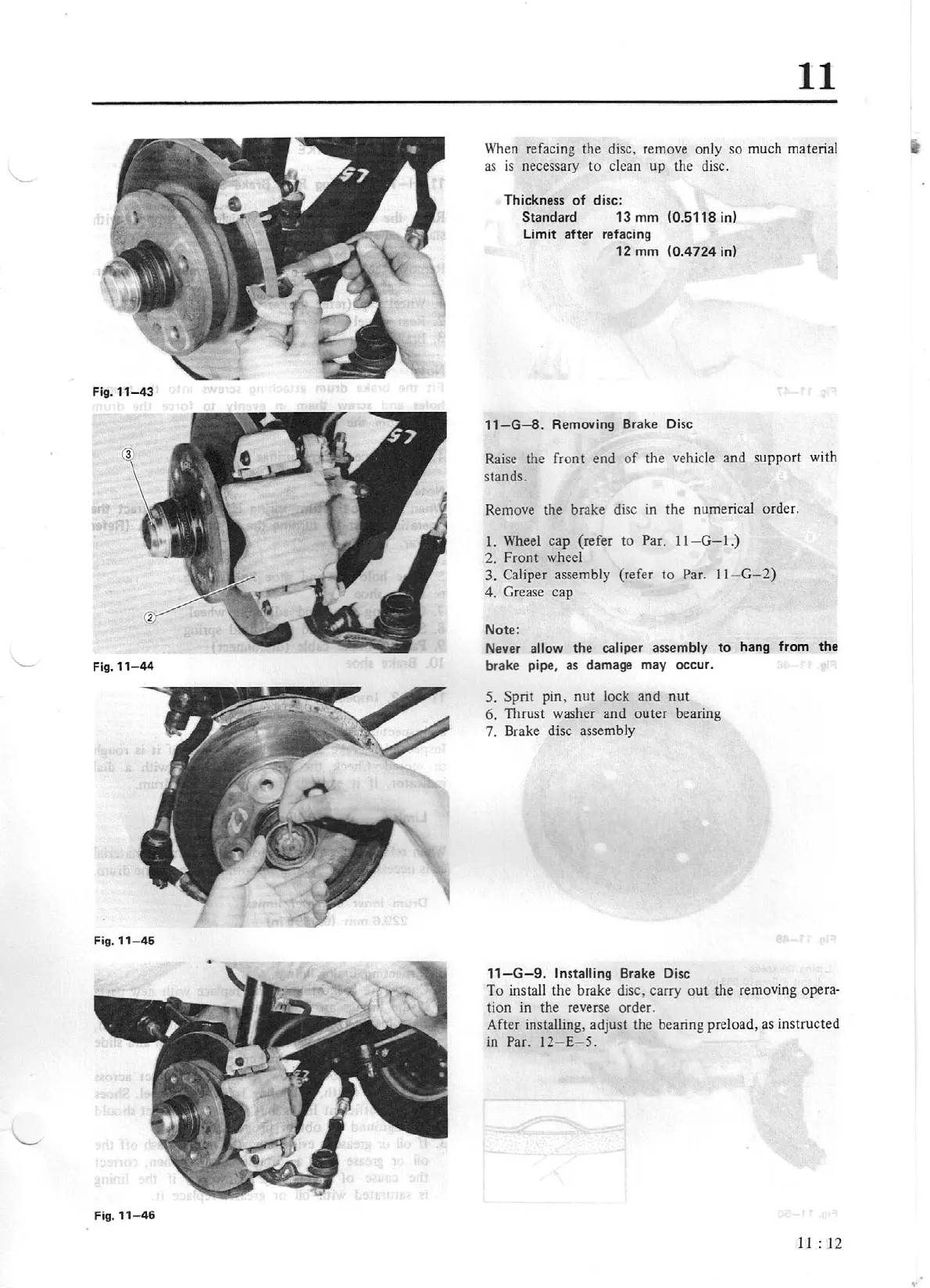

When
refacing the disc, remove only so much material
as
is
necessary to clean up the disc.
Thickness
of
disc:
Standard
13
mm (0.5118
in
)
limit
after refacing
12
mm (0
.4
724
in)
11-G-8.
Removing Brake Disc
Raise the front
end
of
the vehicle and support with
stands.
Remove the brake disc in the numerical order.
1. Wheel cap (refer to Par.
11-G-l.)
2.
Front
wheel
3. Caliper assembly (refer
to
Par.
11
-
G-2)
4.
Grease cap
Note:
Never allow the caliper assembly
to
hang from
the
brake pipe,
as
damage may occur.
5. Sprit pin,
nut
lock and
nut
6. Thrust washer and
outer
bearing
7. Brake disc assembly
11
- G- 9. Installing Brake Disc
To
install the brake disc, carry
out
the removing opera-
tion in the reverse order.
After installing, adjust the bearing preload,
as
instructed
in
Par.
12
- E- 5.
11
: 12
..
