Fig.
14-109
~
Connector
~
~
Bracket
Fig.
14-110
Fig.
14-111
Fig.
14-112
14
4.

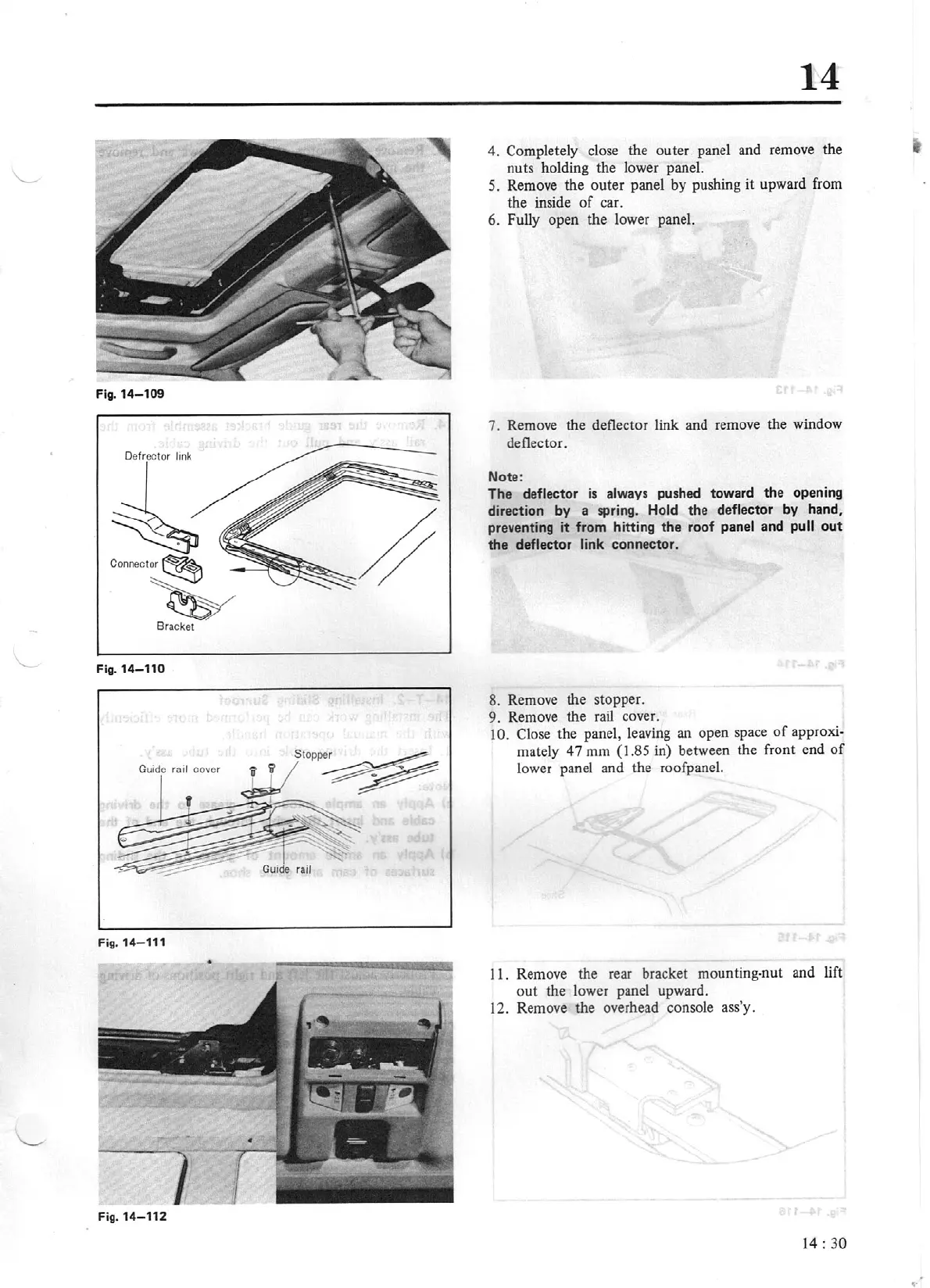

Completely close the outer panel and remove the
nuts holding the lower panel.
5. Remove the outer panel
by
pushing it upward from
the inside
of
car.
6. Fully open the lower panel.
7. Remove the deflector link and remove the window
deflector.
Note
:
The
deflector
is
always pushed
toward
the
opening
direction
by
a spring. Hold
the
deflector
by
hand,
preventing
it
from
hitting
the
roof
panel
and
pull
out
the
deflector
link
connector.
8. Remove the stopper.
9. Remove the rail cover.
10.
Close the panel, leaving an open space
of
approxi-
mately
47
mm
(1.85 in) between the front end
of
lower panel and the roofpancl.
11. Remove the rear bracket mounting-
nut
and lift
out
the lower panel upward.
12. Remove the overhead console ass'y.
14:
30
