:Fo
carburetor
Fig,
4A
- 41
Fig
.
4A-42
(
Canister
Fig.
4A-
43
Check
ball
)
Check ball
Air
cleaner
Evapora
tion
pipe
Fu
el
re
turn
pipe
Fuel
main
pipe
4A
4A
- G.
FUEL
C
UT
VA
LV E

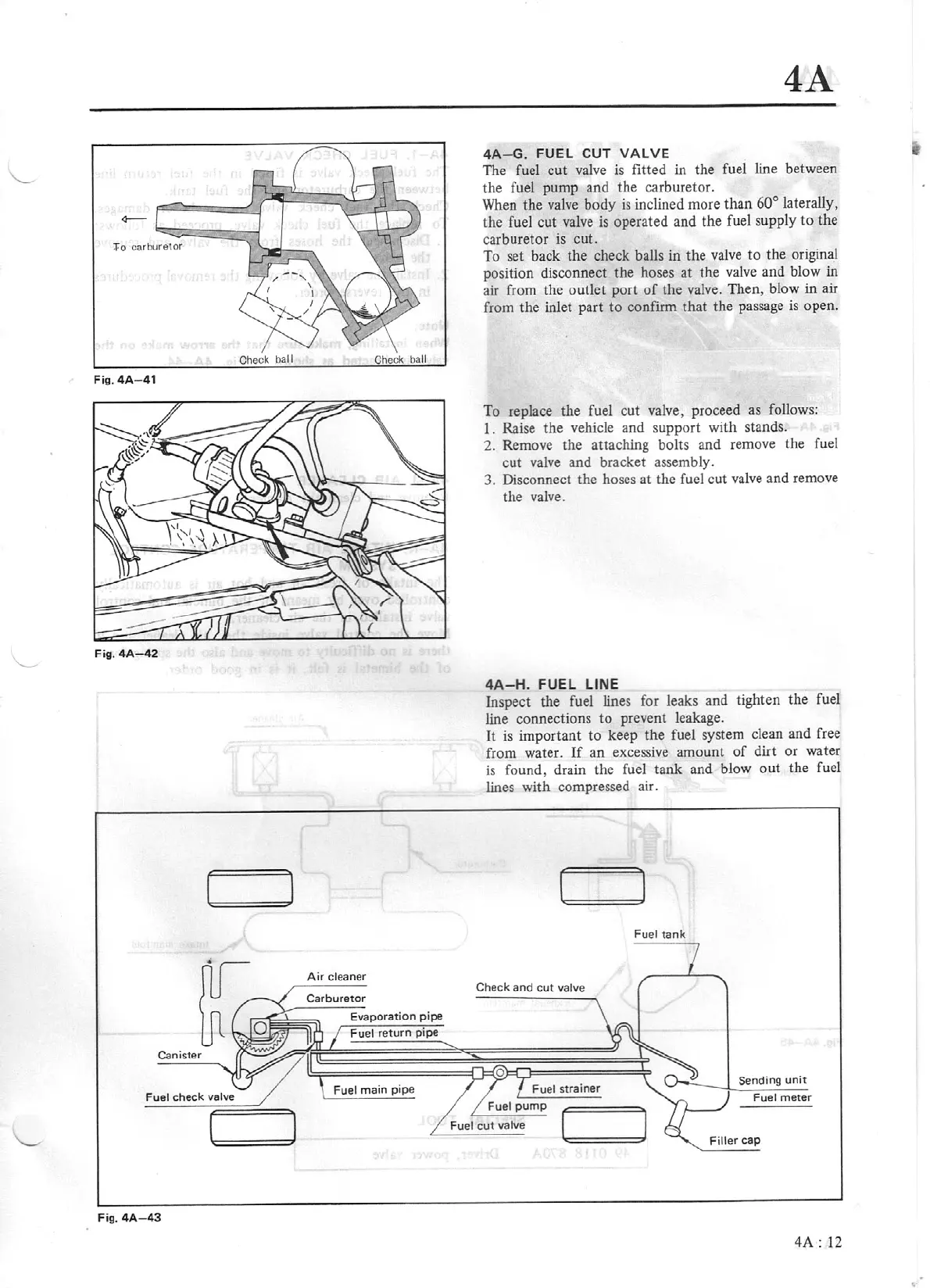

The fuel
cut
valve
is
fitted in the fuel line between
the fuel pump and the carburetor.
When the valve body
is
inclined more
than
60°
laterally,
the fuel cut valve
is
operated and the fuel supply to the
carburetor is cut.
To set back the check balls in the valve to the original
position disconnect the hoses at the valve and blow in
air from the outlet port
of
the valve. Then, blow in air
from the inlet part to confirm
that
the passage
is
open.
To replace the fuel cut valve, proceed as follows:
I.
Raise the vehicle and support with stands.
2. Remove the attaching bolts and remove the fuel
cut valve and bracket assembly.
3. Disconnect the hoses at the fuel cut valve and remove
the valve.
4A
-H
.
FUEL
LINE
Inspect the fuel lines for leaks and tighten the fuel
line connections
to
prevent leakage.
It
is
important to keep the fuel system clean and free
from water.
If
an
excessive amount
of
dirt or water
is
found, drain the fuel
tank
and blow out the fu
el
lines with compressed air.
(
J
Fuel
tank
Check
and
cut
valve
Sending
unit
Fuel
meter
Fuel
cut
valve
4A:
12
