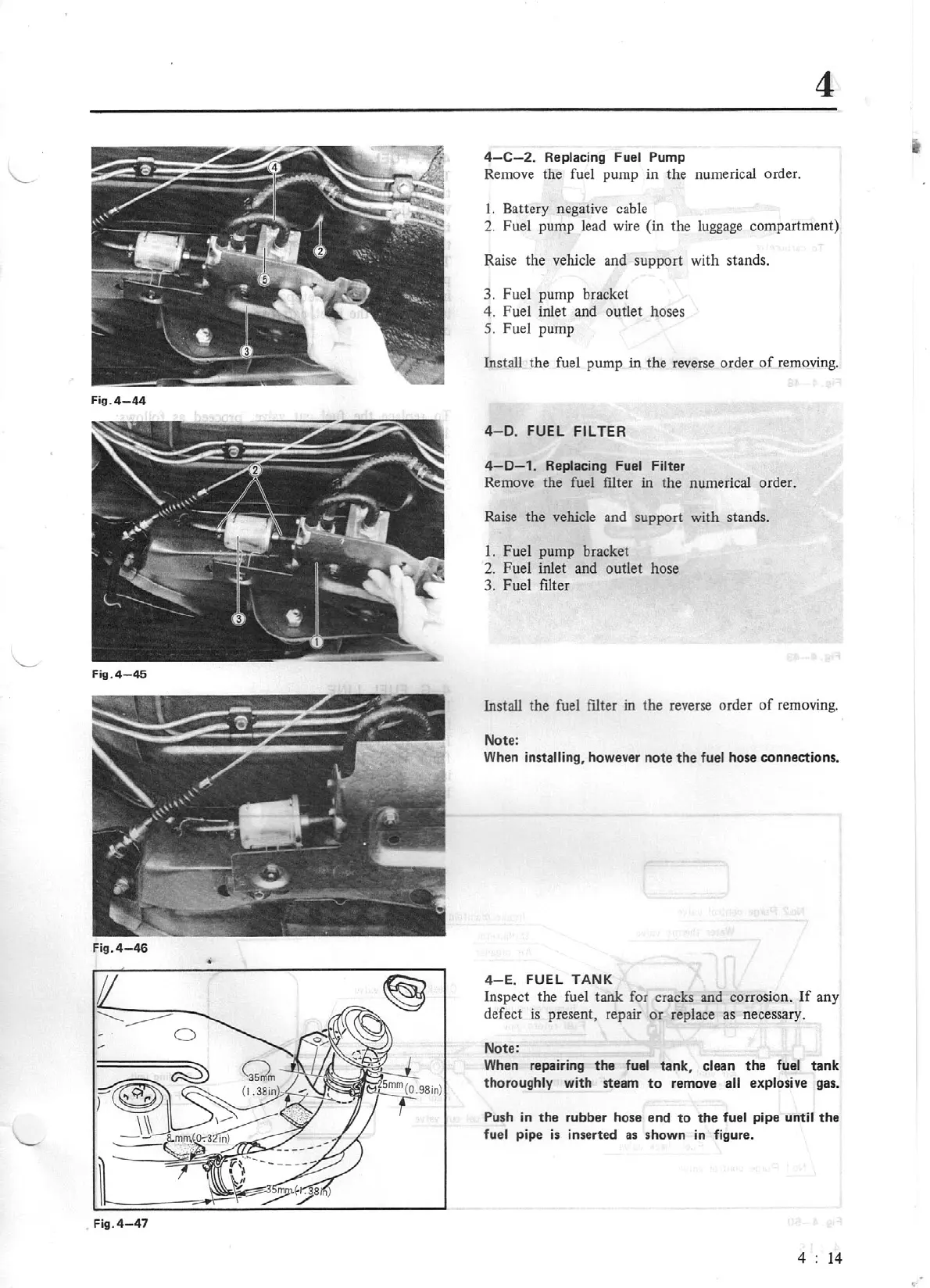

4-C-2.
Replacing Fuel
Pump
Remove the fuel pump in the numerical order.
I.
Battery negative cable
2. Fuel pump lead wire (in the luggage compartment)
Raise the
vehicle and support with stands.
3.
Fuel pump bracket
4. Fuel inlet and outlet hoses
5.
Fuel pump
Install the fuel pump
in
the reverse order
of
removing.
4-0.
FUEL
FILTER
4-0-
1.
Replacing Fuel Filter
Remove the fuel
filter
in the numerical order.
Raise the vehicle
and support with stands.
1.
Fuel pump bracket
2.
Fuel inlet
and outlet hose
3.
Fuel filter
Install the fuel filter in the reverse order
of
removing.
Note:
When
installing,
however note
the
fuel hose connections.
4-E.
FUEL
TANK
Inspect the fuel tank for cracks and corrosion. If any
defect
is
present, repair
or
replace
as
necessary.
Note:
When
repairing
the
fuel
tank,
clean
the
fuel
tank
thoroughly with steam
to
remove
all
explosive gas.
Push in
the
rubber hose end
to
the
fuel
pipe
until
the
fuel pipe
is
inserted
as
shown in figure.
4 14
