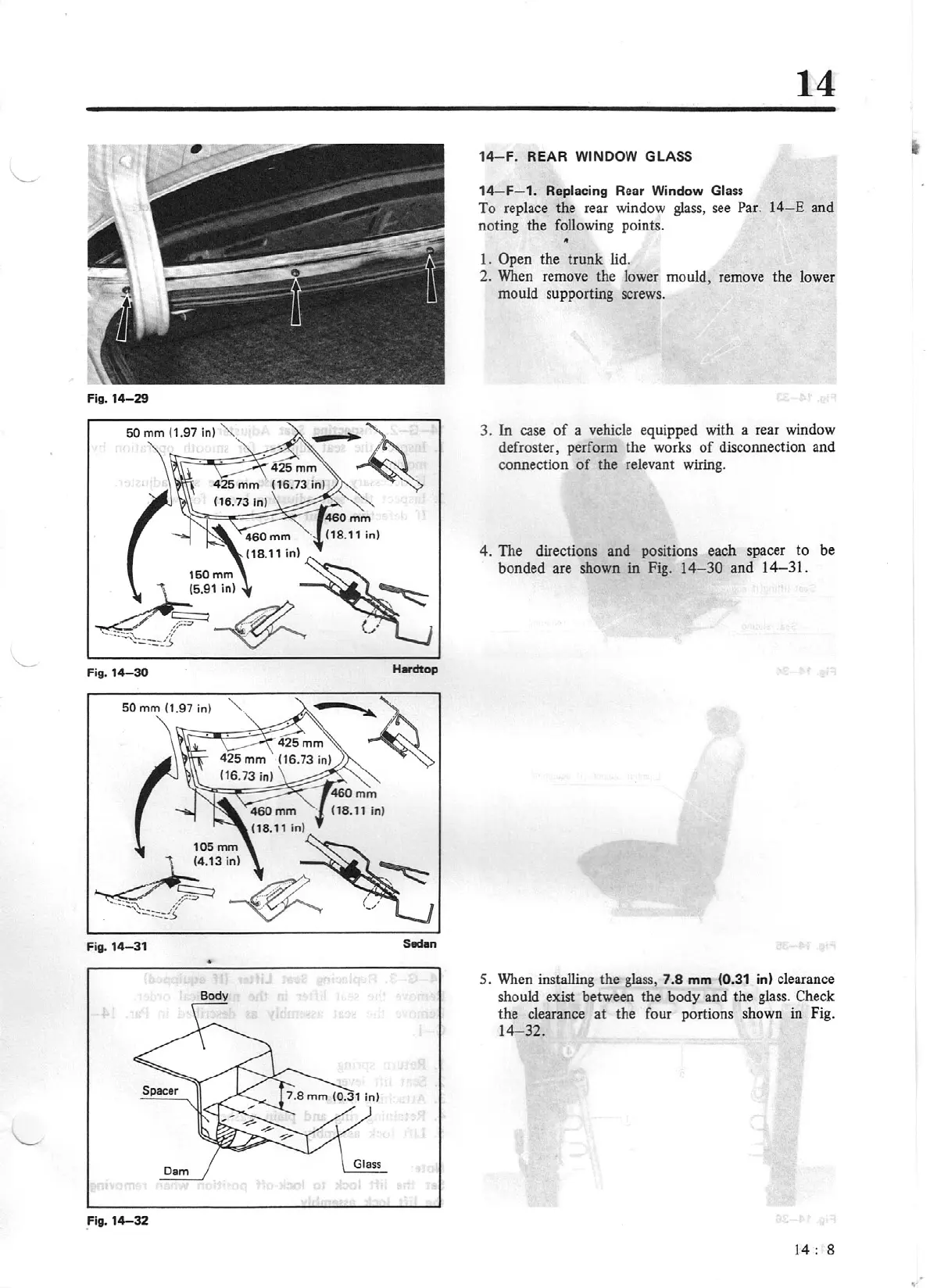

. Replacing Rear Window Glass
To replace the rear window
glass,
see
Par.
14-E
and
noting the following points.
1.
Open the trunk lid.
2.
When
remove the lower mould, remove the lower
mould supporting screws.
3.
In
case
of
a vehicle equipped with a rear window
defroster, perform the works
of
disconnection and
connection
of
the relevant wiring.
4. The directions and positions each spacer
to
be
bonded are shown in Fig.
14-30
and
14-31.
5.
When
installing the glass, 7.8 mm (0.31 in) clearance
should exist between
the
body and the
glass.
Check
the clearance
at
the four portions shown in Fig.
14-32
.
14:
8
,.
