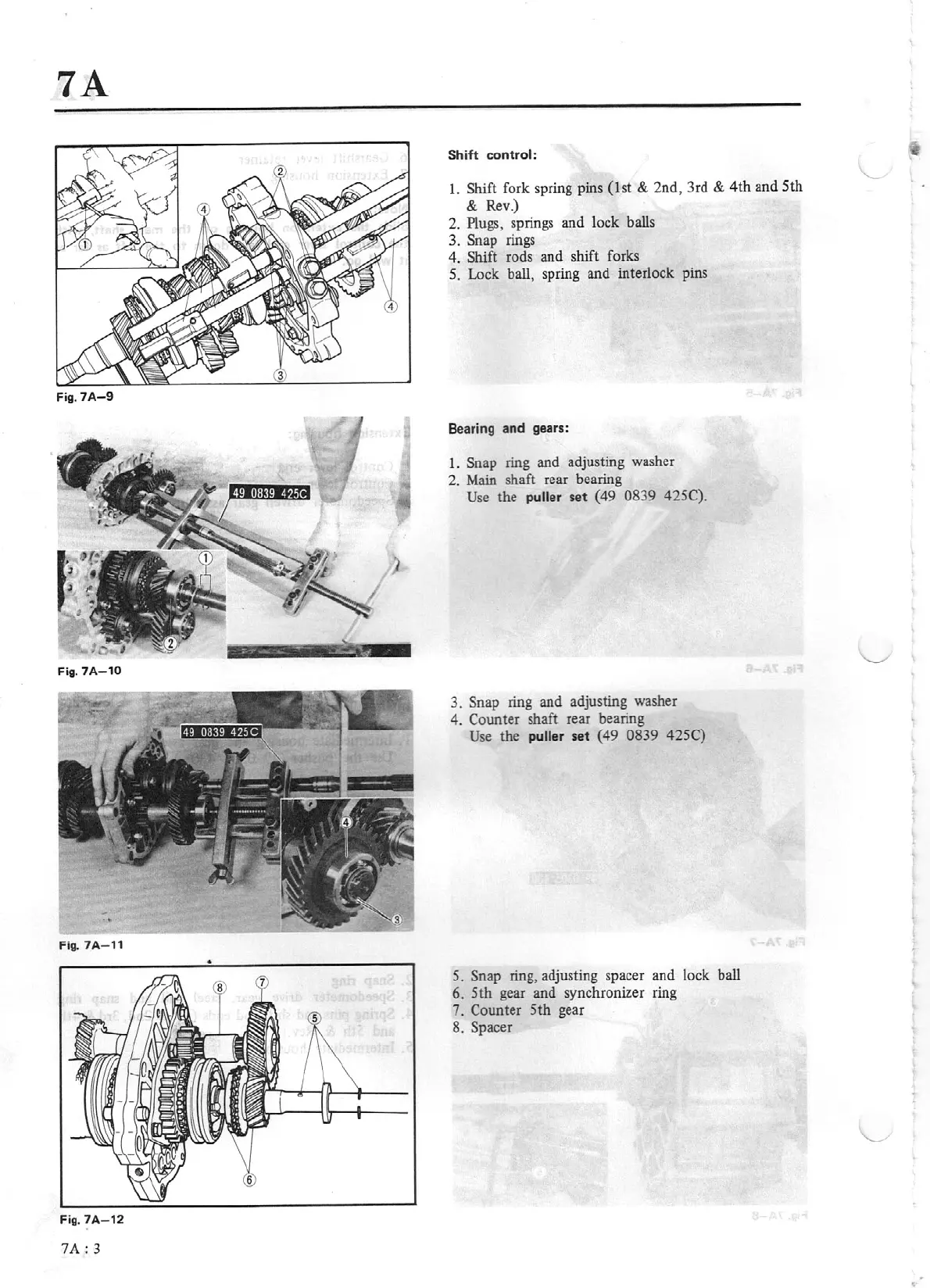

7A
Shift
control:
1.
Shift fork spring pins (1st
&
2nd, 3rd
&
4th
and
5th
&
Rev.
)
2. Plugs, springs and lock balls
3. Snap
rings
4.
Shift
rods and shift forks
5. Lock ball, spring and interlock pins
Fig.
7A
- 9
Bearing and gears:
1.
Snap
ring and adjusting washer
2.
Main
shaft rear bearing
Use
the
puller
set
(49
0839 425C).
Fig.
7A-10
3.
Snap ring and adjusting washer
4. Counter shaft rear bearing
Use
the
puller
set
(49
0839
425C)
Fig.
7A-11
5.
Snap
ring, adjusting spacer and lock ball
6.
5th
gear and synchronizer ring
7. Counter
5th
gear
8.
Spacer
Fig.
7A
-
12
7A:
3
