Fig.
9-12
Fig.
9-13
Fig.
9-14
•
Fig.
9-
15
9

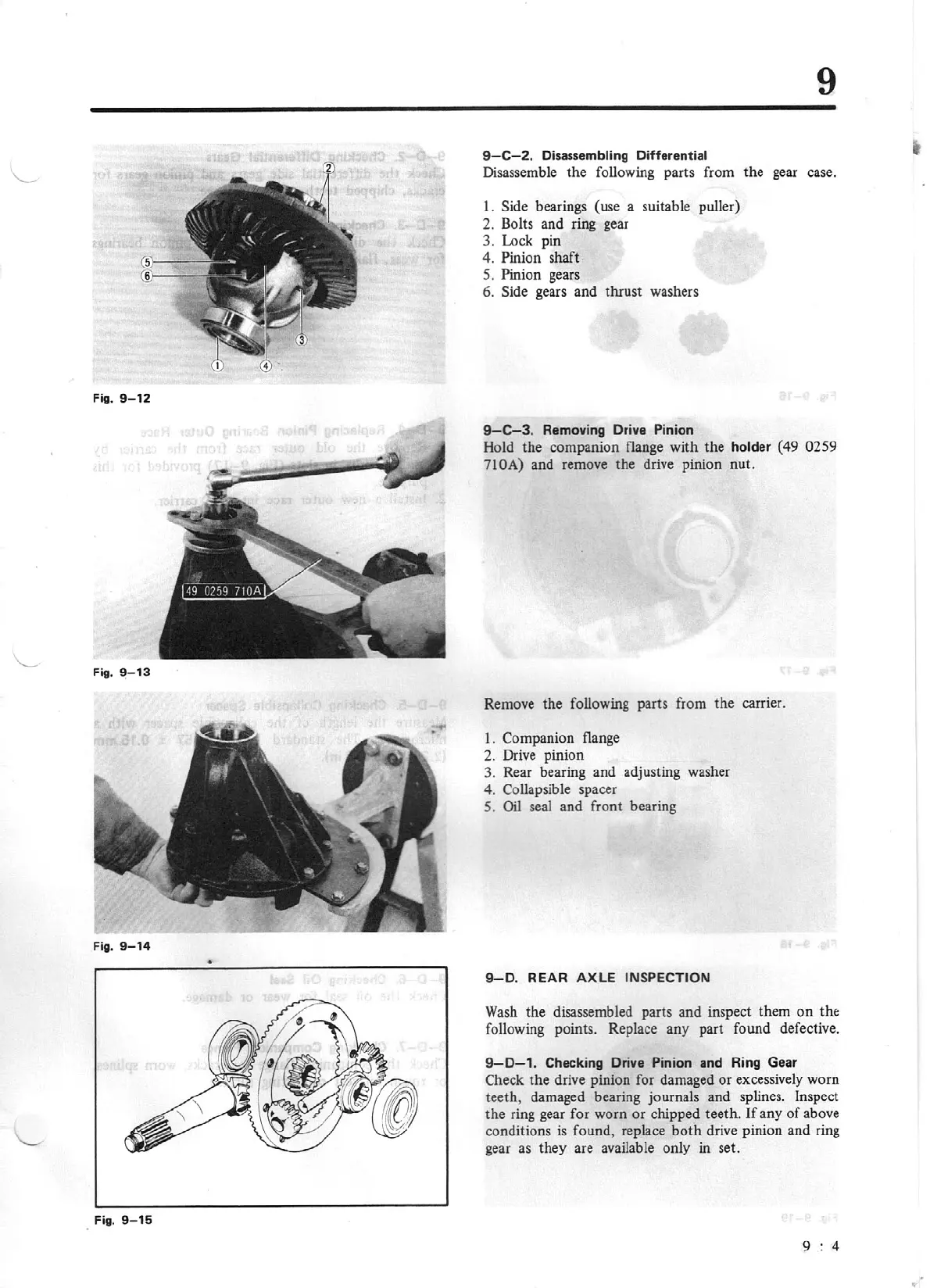

9-C-2.
Disassembling
Differential
Disassemble the following parts from the gear case.
1.
Side
bearings (use a suitable puller)
2. Bolts and ring gear
3.
Lock pin
4.
Pinion
shaft
5.
Pinion gears
6.
Side
gears and thrust washers
9-C-3.
Removing Drive Pinion
Hold the companion flange with the
holder
{49
0259
71
OA)
and remove the drive pinion nut.
Remove the following parts from the carrier.
l .
Companion flange
2. Drive pinion
3.
Rear bearing and adjusting washer
4. Collapsible spacer
5.
Oil
seal and front bearing
9-D.
REAR
AXLE
INSPECTION
Wash
the disassembled parts and inspect them on the
following points. Replace any part found defective.
9-D-1.
Checking
Drive Pinion and Ring Gear
Check the drive pinion for damaged or excessively
worn
teeth, damaged bearing journals and spline
s.
Inspect
the ring gear for worn or chipped teeth.
If
any of above
conditions
is
found, replace
both
drive pinion and ring
gear as they are available
on
ly in set.
9 4
