4A
Fig.
4A-2
Fig.
4A-3
•
•
I
Fig.
4A
- 4
4A:
I
4A-

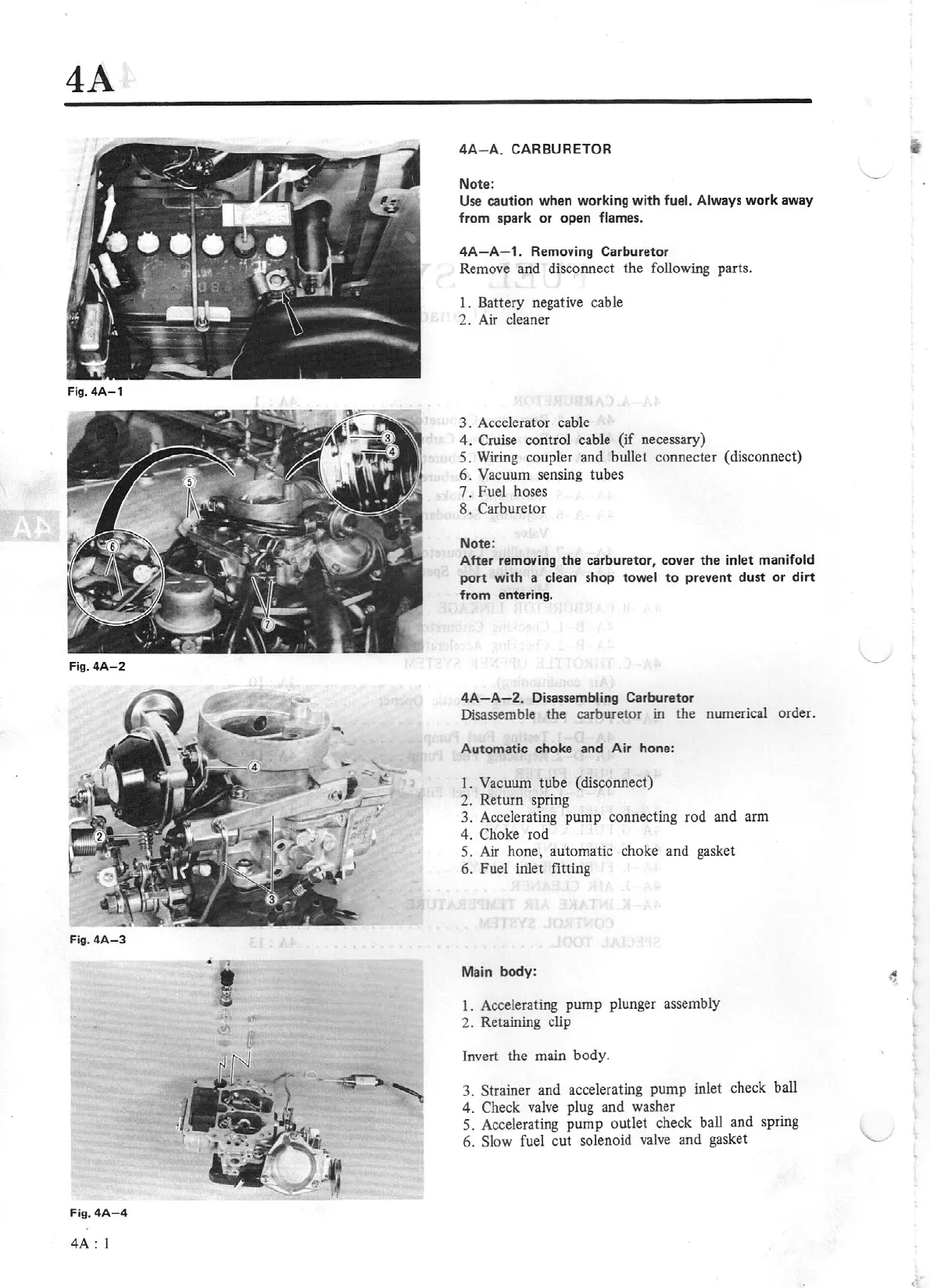

A.
CARBURETOR
Not
e:
Use caution when working with
fuel. Always
work away
from spark
or
open flame
s.
4A-
A- 1. Removing Carburetor
Remove and disconnect
the
following parts.
1. Battery negative cable
2. Air
cleaner
3.
Accelerator cable
4.
Cruise control
ca
ble
(if
necessary)
S.
Wiring coupler and bullet connecter (disconnect)
6.
Vacuum sensing tubes
7.
Fuel hoses
8. Carburetor
N
ote:
Aft
er removing
the
carbur
etor
, cover
the
inlet manifold
port with
a
clean
shop
towel
to
prevent
dust
or
dirt
from entering.
4A-
A-2
. Disassembling Carburetor
Disassemble
the
carburetor in
the
numerical order.
Au
to
matic choke and Air hone:
l.
Vacuum tube
(d
isconnect)
2. Return spring
3.
Accelerating
pump
connecting rod and
arm
4.
C
hoke
rod
5.
Air
hone, automatic choke and gasket
6.
Fuel inlet fitting
Ma
in
body
:
1.
Accelerating
pump
plunger assembly
2.
Retaining
clip
Invert
the
main
body.
3. Strainer and accelerating
pump
inlet check ball
4. Check
valve plug and washer
5. Accelerating
pum
p outlet check ball and spring
6.
Slow
fuel c
ut
solenoid
valve
and gasket
To Next Page
