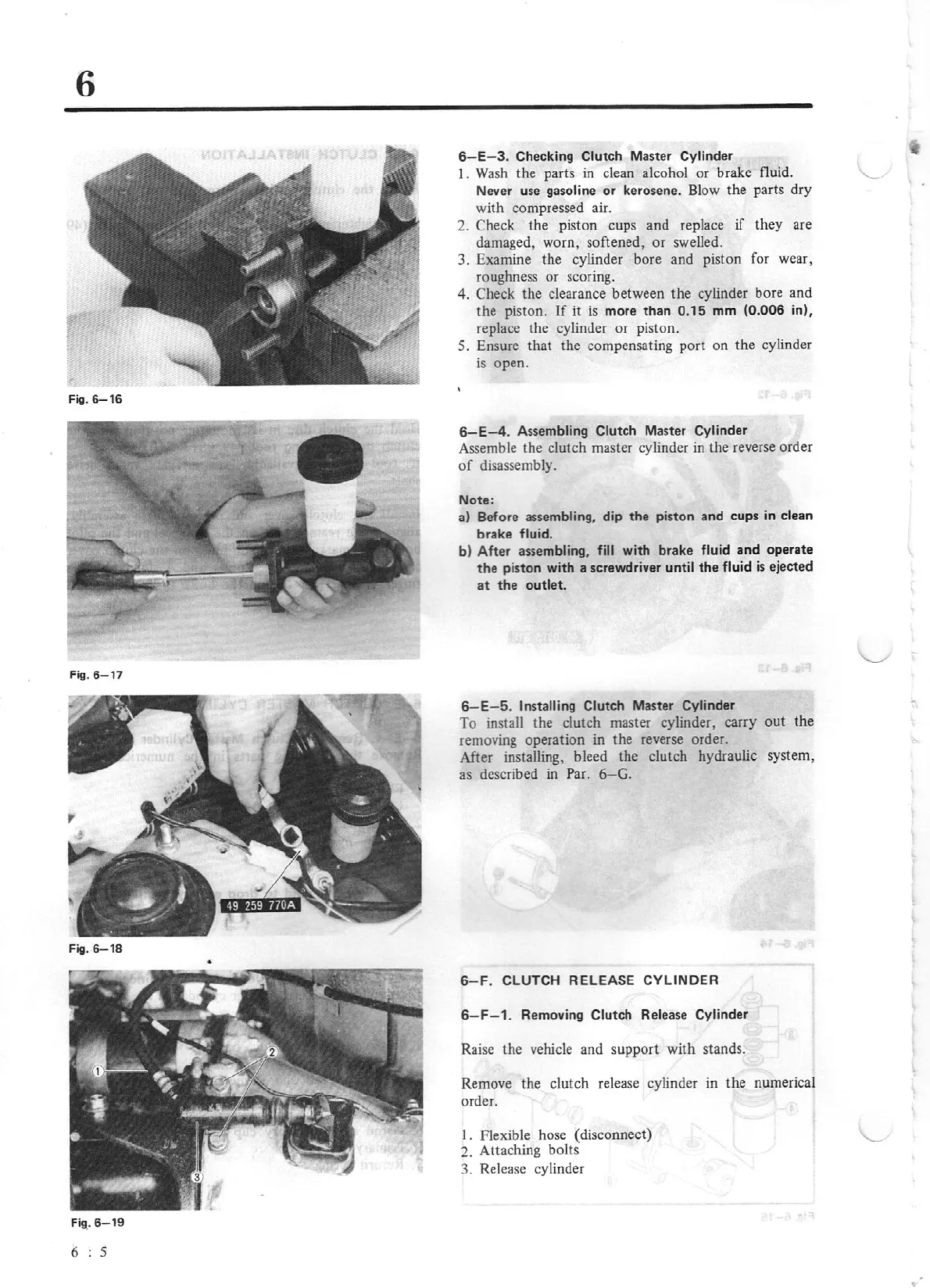

Mazda 626 1981 - 06-05

6
Fig.6-16
Fig.
6-17
Fig.
6-18
Fig.
6-19
6 :
5
6- E- 3. Checking
Cl
utch Master Cylinder
I.
Wash
the
parts
in
clean alcohol
or
brake fluid.
Never use gasoline
or
kerosene. Blow the
par
ts
dry
with compressed
ai
r.
2. Check the piston cups and replace
if
th
ey are
damaged, worn, softened,
or
swelled.
3. Examine
the
cy
lind
er
bore and piston for wear,
roughness or scoring.
4. Check
the
clearance between
the
cylinder bore and
the
piston.
If
it is more than
0.
15
mm
(0.006
in
),
replace the cylinder
or
piston.
5. Ensure
that
the
compensating
port
on
the
cy
li
nder
is
open.
6-E-4
.
Assembling Clutch
Master Cylinder
Assemble
the
clutch master cylinder
in
the
reverse order
of
disassembly.
Note:
a) Before
assembling,
dip
the
piston and cups
in
clean
brake
fluid.
b) A
ft
er assembling,
fill
with brake
fluid
and
operate
the pis
ton
with a screwd
ri
ver until
the
fluid
is
ejected
at
the
outlet.
6-E
- 5.
In
stalling
Clutch Master Cylinder
To install
the
clutch master cylinder, carry out
th
e
removing operation in
the
reverse order.
After installing, bleed the clutch hydraulic system,
as described in
Pa
r.
6-
G.
6-F
.
CLUTCH RELEASE CYLINDER
6-
F-1
. Removing Clutch
Release Cylinder
Raise the vehicle and support with stands.
Remove the clutch release cylinder
in
the
nu
me
rical
order.
I.
Flexible hose
(d
isconnect)
2. Attaching bolts
3. Release
cy
linder
