lOA
Fig
.
10A-29
Fig.
10A
-
30
Fig
.
10A-31
•
Fig
.
10A-32
lOA:
11
10A-G

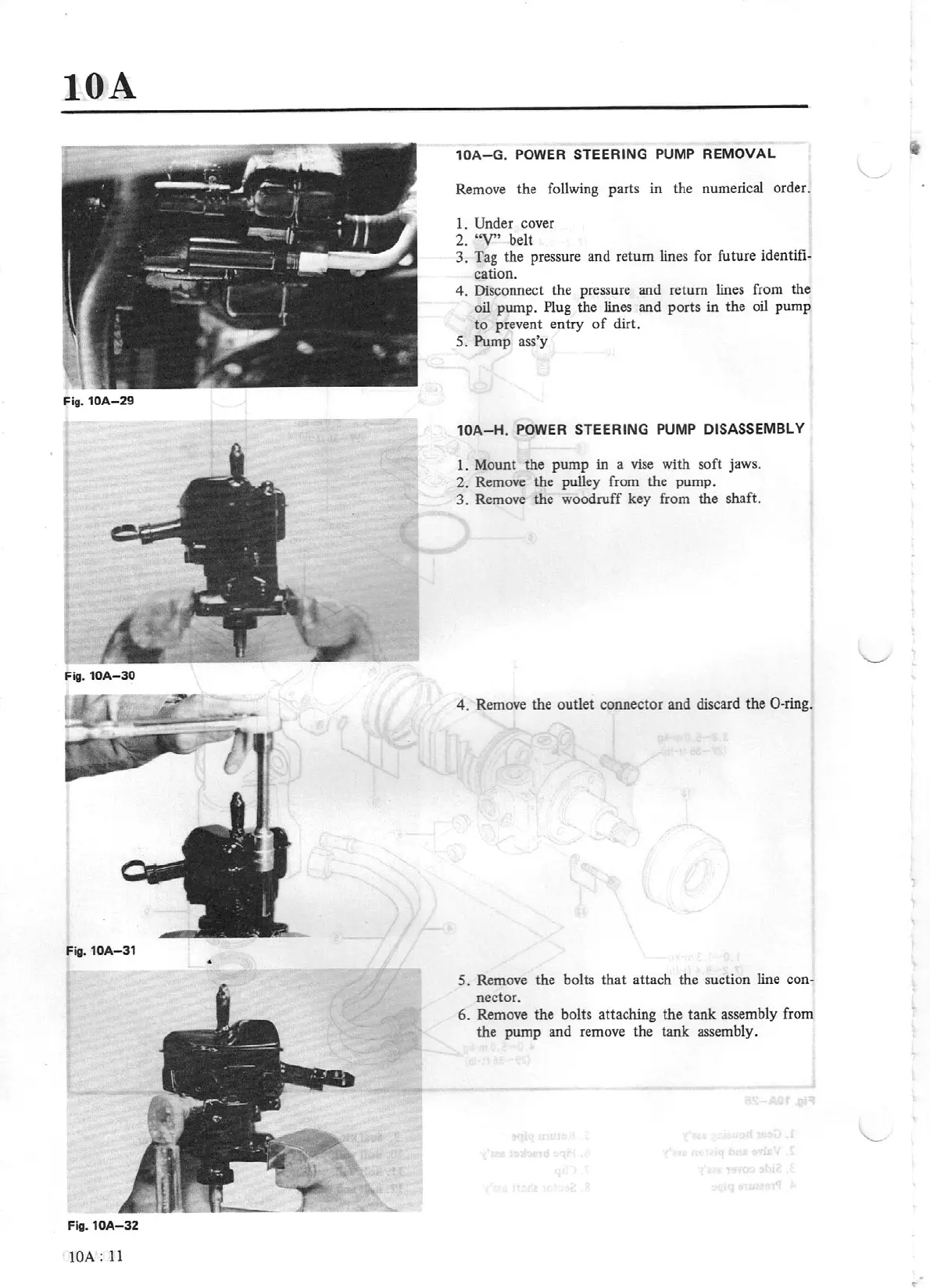

. POWER STEERING PUMP REMOVAL
Remove the follwing parts
in
the numerical order.
1.
Under cover
2.
"V"
belt
3.
Tag the pressure and return lines for future identifi-
cation.
4.
Disconnect the pressure and return lines from the
oil pump. Plug the lines and ports in the oil pump
to
prevent entry
of
dirt.
5.
Pump
ass'y
10A-H.
POWER
STEERING PUMP DISASSEMBLY
1.
Mount the pump
in
a
vise
with soft jaws.
2. Remove the pulley from the pump.
3. Remove the woodruff key from the shaft.
4. Remove the outlet connector and discard the 0-ring.
5. Remove the bolts that attach the suction line
con-
nector.
6. Remove the bolts attaching the tank assembly from
the pump and remove the tank assembly.
To Next Page
