Fig.
78-15
•
Fig.
78-16
7B

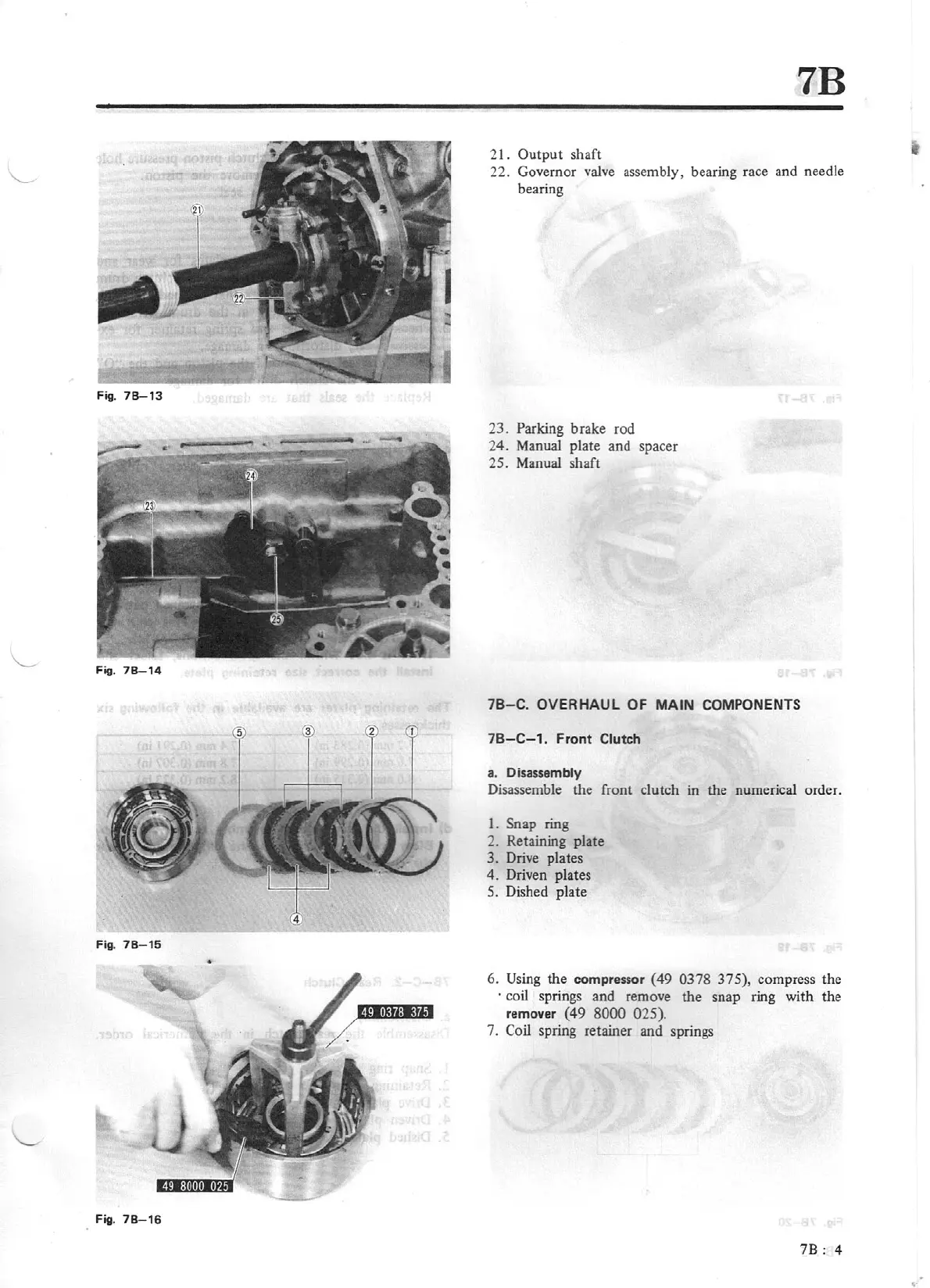

21. Output shaft
22. Governor valve assembly, bearing race and needle
bearing
23. Parking brake rod
24
. Manual plate and spacer
25. Manual shaft
78-C.
OVERHAUL
OF
MAIN
COMPONENTS
78-C-1.
Front
Clutch
a. Disassembly
Disassemble the front clutch in the numerical order.
1. Snap ring
2. Retaining plate
3. Drive plates
4.
Driven plates
5. Dished plate
6.
Using the compressor (49 0378 375), compress the
· coil springs and remove the snap ring with the
remover (
49
8000 025).
7. Coil spring retainer and springs
7B:
4
•
