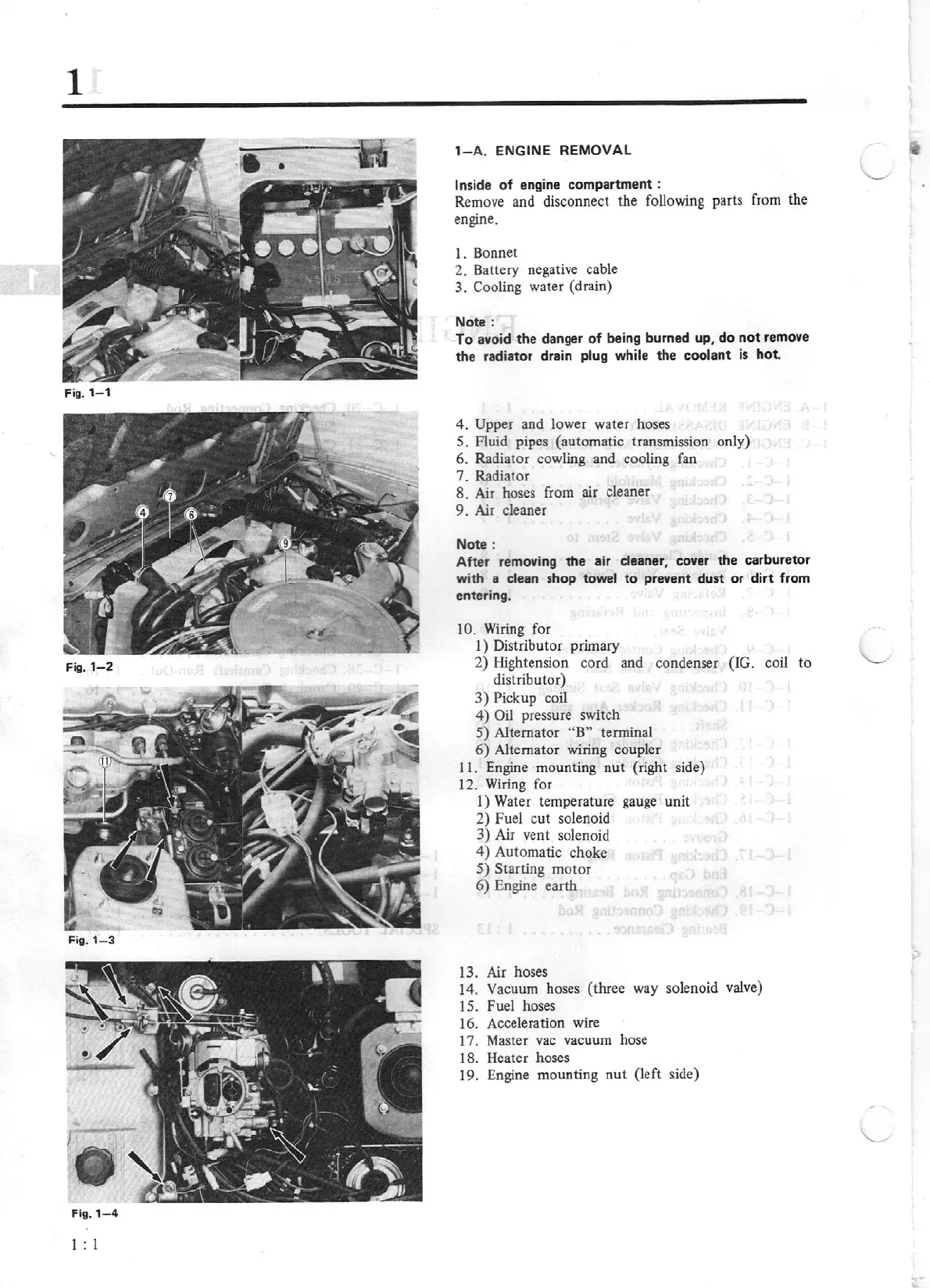

ENGINE REMOVAL
Inside
of
engine compartment :
Remove and disconnect the following parts from the
engine.
1. Bonnet
2.
Battery negative cable
3.
Cooling water (drain)
Note:
To
avoid
the
danger
of
being burned
up,
do
not
remove
the
radiator drain
plug while
the
coolant
is
hot.
4.
Upper and lower water hoses
5.
Fluid pipes (automatic transmission only)
6.
Radiator cowling and cooling
fan
7.
Radiator
8.
Air hoses from air cleaner
9.
Air cleaner
Note:
After removing
the
air cleaner, cover
the
carburetor
with
a
clean shop towel
to
prevent dust
or
dirt
from
entering.
10.
Wiring for
1)
Distributor primary
2) Hightensi
on
cord and condenser (IG. coil to
distributor)
3)
Pickup
coil
4) Oil
pressure switch
5)
Alternator
"B"
tenninal
6)
Alternator wiring coupler
11. Engine mounting
nut
(right side)
12. Wiring for
I)
Water temperature gauge unit
2) Fuel cut solenoid
3)
Air
vent solenoid
4)
Automatic choke
5)
Starting
motor
6)
Engine earth
13.
Air
hoses
14. Vacuum hoses (three way solenoid valve)
15. Fuel hoses
16. Acceleration wire
17. Master vac vacuum hose
18. Heater hoses
19. Engine mounting
nut
(left side)
To Next Page
